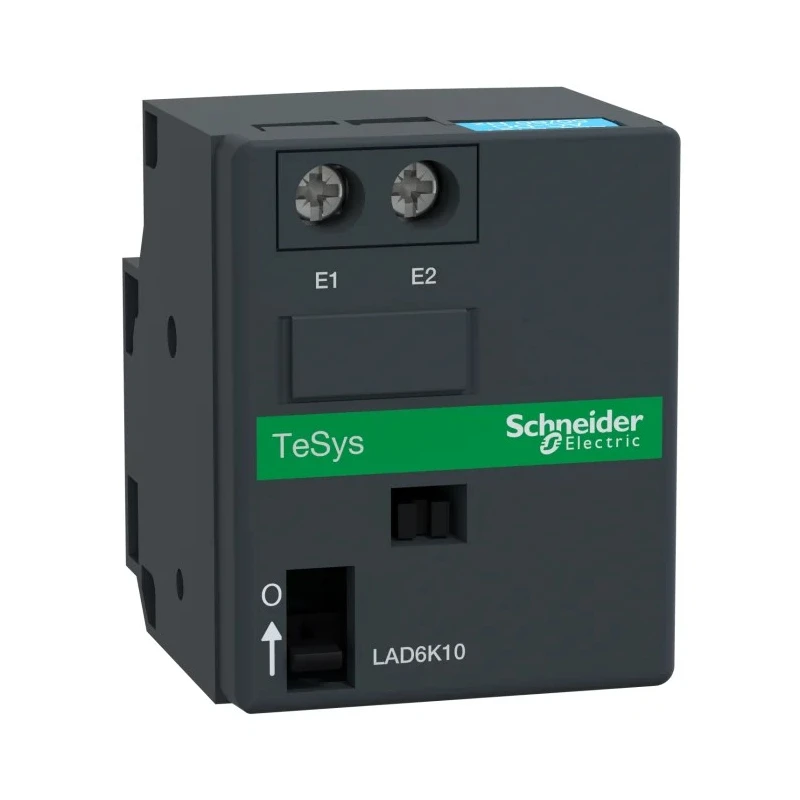

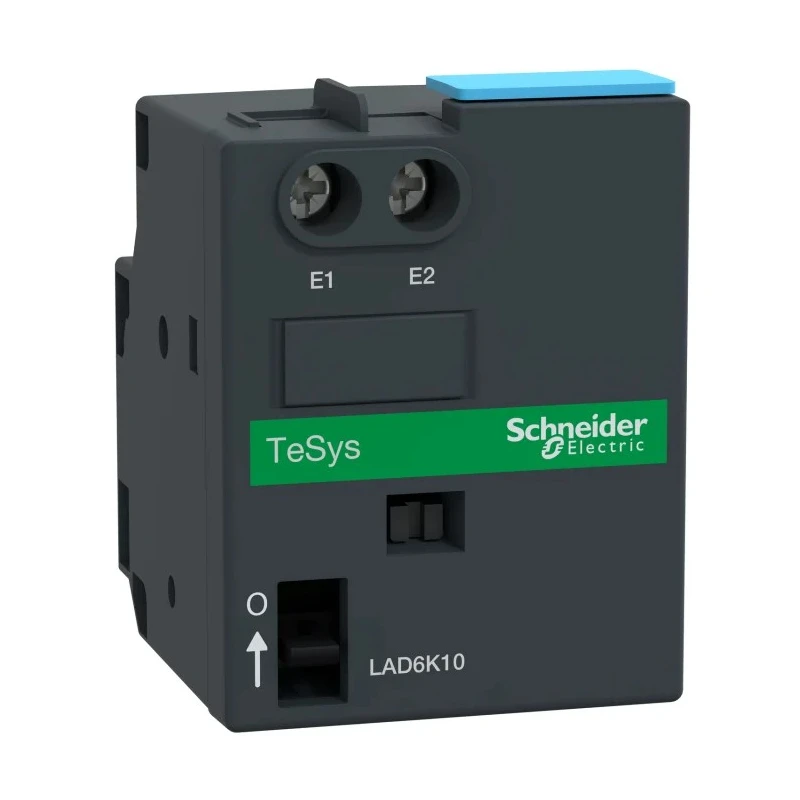

Schneider Electric TeSyS D Mechanical Latch for Use with TeSys D LC1D Contactors LAD6K10B

Schneider Electric LAD6K10B Mechanical Latch is an accessory designed specifically for TeSys D LC1D contactors, delivering secure latching and manual trip control for industrial automation and motor control centres.

This mechanical latch mounts on the front of compatible LC1D contactors, providing a robust mechanical interface that ensures contactor position is maintained during panel servicing or specific operational sequences.

The device supports dual control voltages of 24V DC and 24V AC at 50/60 Hz, allowing AC or DC control signal compatibility. It boasts a long mechanical life expectancy of 500,000 cycles and can operate at rates up to 1,200 cycles per hour, suitable for demanding industrial environments.

With a high insulation rating of 690V, the latch is suitable for high-voltage applications and carries CSA, IEC, and UL approvals, signed with a protective TH treatment to enhance durability and safety.

Its operational temperature range from −25 to 55 degrees Celsius and storage range between −40 to 80 degrees Celsius with IP2X protection ensures reliable performance under varied environmental conditions.

This accessory is ideal for securing LC1D contactors in motor control centres, facilitating easy conversion to manual trip switching in switchgear and serves as an effective retrofit spare-latch solution for industrial control panels.

Designed for use with TeSys D LC1D contactors to secure and hold the contactor position. Operates with 24V DC control circuits and 24V AC 50/60 Hz for flexible control options. Rated for 500,000 mechanical cycles and supports a maximum operating rate of 1,200 cycles per hour.

Insulation rated up to 690V for high-voltage industrial applications. Operational ambient temperature range from −25°C to 55°C and storage range of −40°C to 80°C with IP2X protection. Certified with CSA, IEC, and UL approvals ensuring industrial safety and compliance.

Easy front-face mounting to interface directly with the operator mechanism of the contactor. Explore Schneider Electric products and Contactor Accessories at EnvMart for quality industrial automation components.
