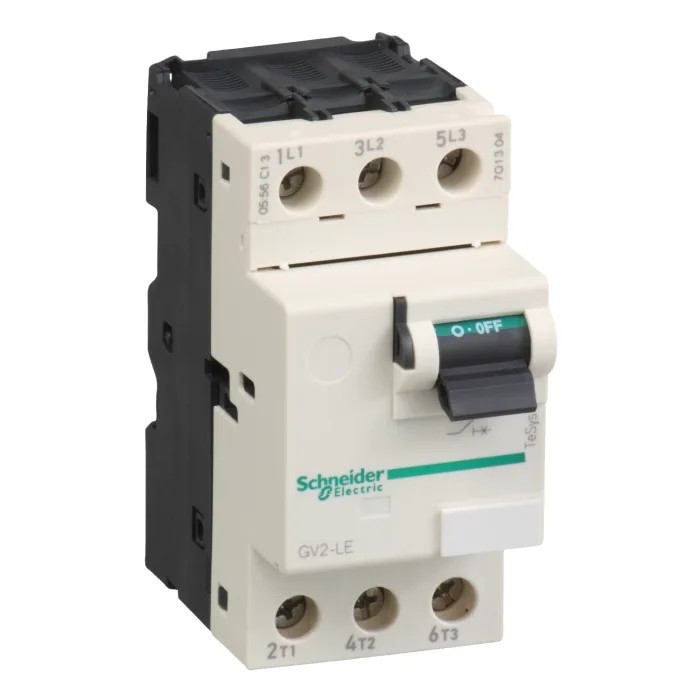

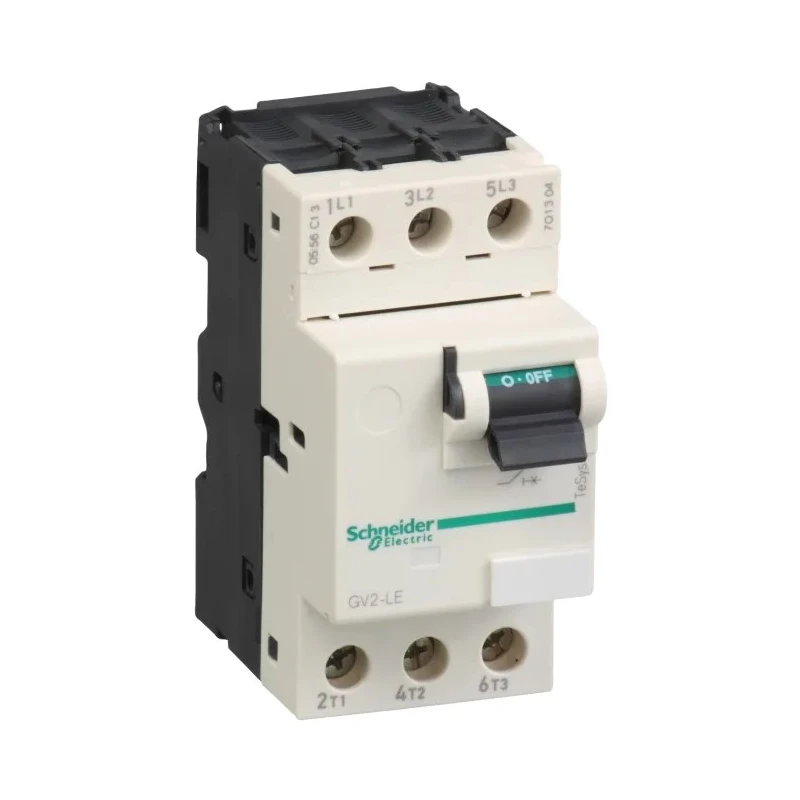

Schneider Electric TeSyS GV Motor Protection Circuit Breaker 4A 690V Thermal Magnetic 3 Poles GV2LE08

Schneider Electric GV2LE08 Motor Protection Circuit Breaker is a thermal magnetic device designed for motor protection in industrial and commercial electrical systems. It provides reliable current protection with a 4A rating for 3-phase motors operating up to 690V. Suitable for motor applications in ranges of 1.1 to 1.5 kW at 400V, it ensures protection against overloads and short circuits with a magnetic tripping level set at 13 times the nominal current.

The device features a high breaking capacity of 100kA at 400V, making it robust and safe under fault conditions. Its compact design dimensions - 89mm length, 44.5mm width, and 78.5mm depth - facilitate installation in confined panel spaces. The 3-pole configuration connects seamlessly through secure screw clamp terminals, and manual operations are controlled via a durable rocker lever selector switch, guaranteeing up to 100,000 start-stop cycles under AC-3 conditions.

Operating reliably within a broad temperature range from -20 °C to 60 °C, this motor circuit breaker is designed for various environmental situations. It conforms to multiple international standards including CSA, EN/IEC 60947-2, UL, and many others, ensuring dependable performance and safety compliance. The product is IP20 rated, affording protection against solid foreign objects, suitable for typical indoor electrical installations.

Manufactured in France, the device aligns with Schneider Electric’s Better World initiative, emphasizing ecological design for disassembly and sustainable manufacturing processes. This makes it an ideal choice for industries focused on energy efficiency and environmental responsibility.

To complete motor protection, this circuit breaker should be combined with a compatible thermal overload relay, such as the LRD08 (sold separately). Typical applications include industrial motor starting and control panels, HVAC systems, water treatment plants, and manufacturing equipment requiring robust motor circuit protection.

Thermal magnetic motor protection with reliable magnetic tripping. High breaking capacity suitable for industrial 3-phase motors. Compact dimensions enable easy integration into control panels. Complies with international safety and environmental standards.

Designed for durability with manual rocker lever operation. Explore the complete range of Schneider Electric motor protection devices on EnvMart for industrial and commercial electrical automation needs.
