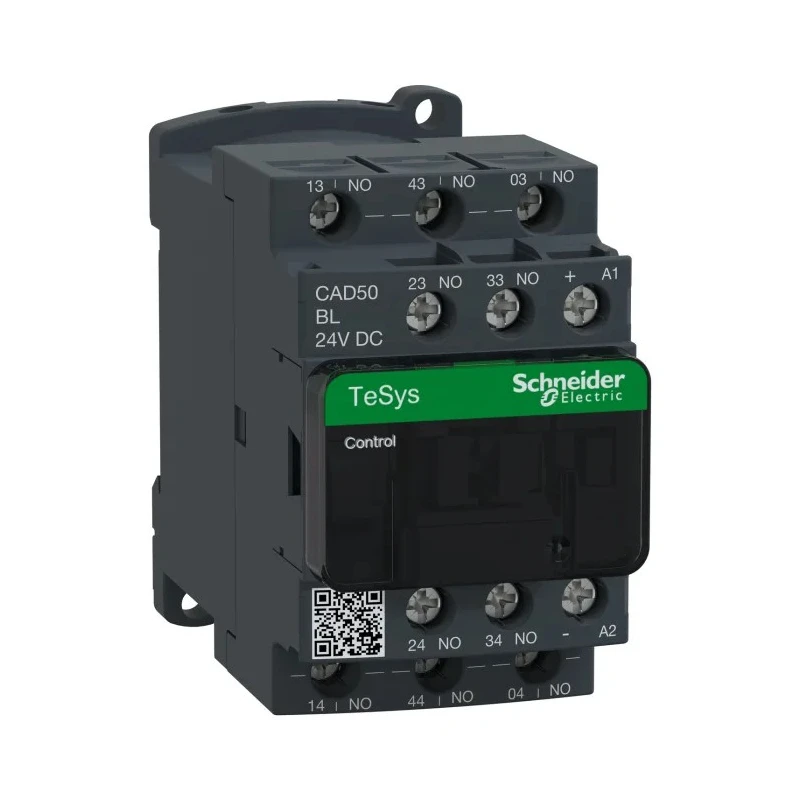

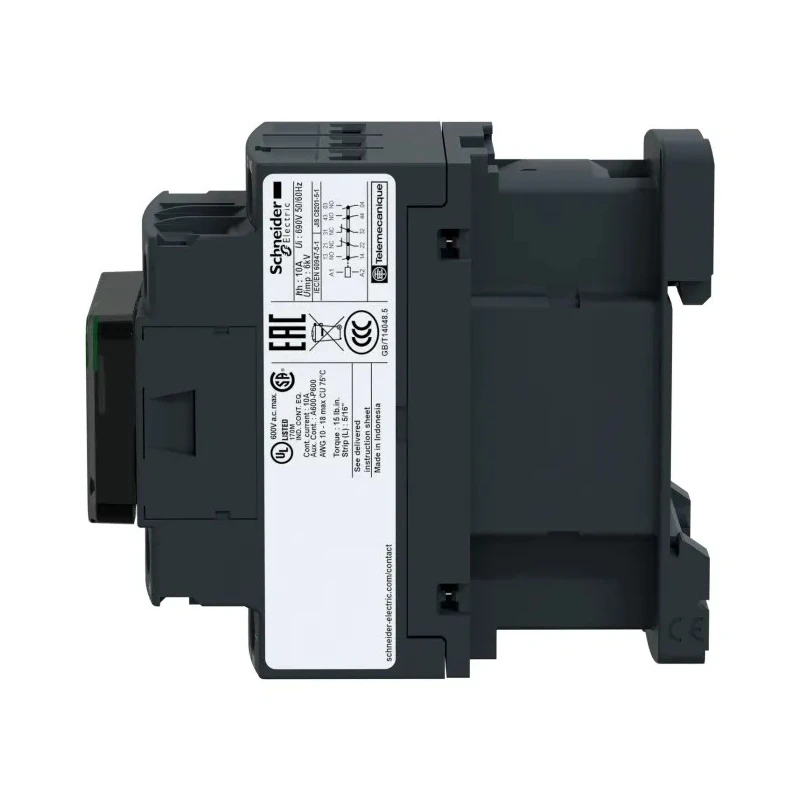

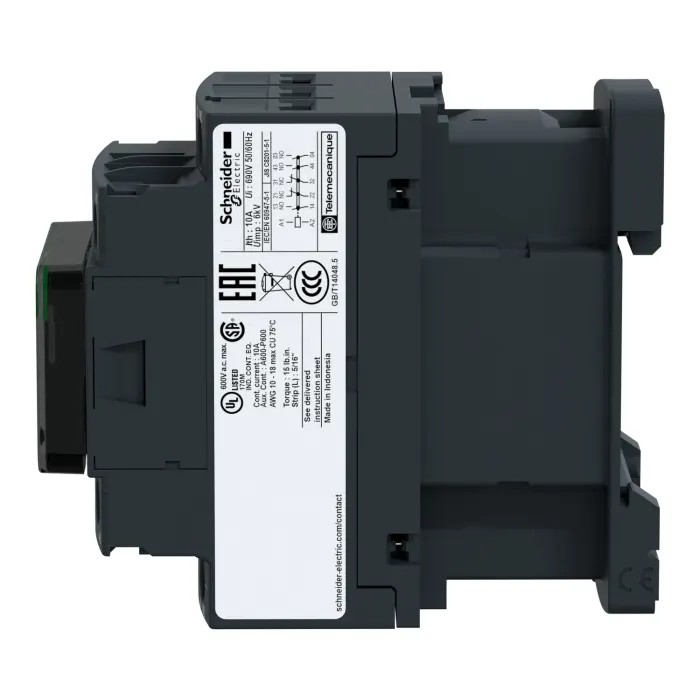

Schneider Electric CAD5 Contactor, 24V DC Coil, 3-Pole, 10A Operational Current, 70W Power Rating, 690V DC Contact CAD50BL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Control Circuit |
| Length | 77mm |
| Model | CAD50BL |
| Depth | 93mm |
| Width | 45mm |
| Mount Type | Plate, Rail Mount |
| Series | CAD5 |
| Power Rating | 70W |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EAC, IEC, RoHS, UL, CCC, CSA |
| Contact Voltage | 690V dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 5 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 10A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 10A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Control Circuit |
| Pole and Throw Configuration | 3 |
Key Features
- Operates with a 24V DC coil voltage for control circuit applications.
- Provides three main poles supporting load switching up to 10 amperes.
- Rated contact voltage of 690V DC suitable for high-voltage control circuits.
- Features 5 normally open main contacts and 1 normally open auxiliary contact for signaling outputs.
- Mounts flexibly on rail or plate for versatile panel integration.
- Equipped with screw clamp terminals supporting 1 to 4mm² conductors with 1.2N·m torque.
- Operates reliably in environments from -40°C to 70°C (with derating above 60°C).
- Mechanical durability rated for 30 million cycles ensuring long service life.
Product Description
Schneider Electric CAD50BL Contactor is a compact and efficient 3-pole contactor designed for switching low-power control circuits with a 24V DC coil and operational current of 10A, making it ideal for various industrial electrical control systems.
Engineered to handle a maximum contact voltage of 690V DC and power rating of 70W, this contactor ensures reliable operation in demanding electrical automation and control gear applications.
The device features 5 normally open main contacts alongside 1 normally open auxiliary contact, providing extra signaling capability for control circuits. It supports flexible mounting options including rail and plate installation to fit various control panel designs.
Electrical connections are made through screw clamp terminals accommodating 1 to 4mm² flexible or solid conductors, tightened to a torque of 1.2N·m. The contactor operates efficiently within a temperature range of -40°C up to 70°C with derating, suitable for harsh industrial environments.
Mechanical durability is rated up to 30 million cycles, ensuring extended operational reliability and reduced maintenance. It responds swiftly with coil energisation closing times between 65 and 88 milliseconds and de-energisation opening times of 14 to 25 milliseconds.
This device is widely used in factory automation, motor control signaling, remote switching of transformers, and integration into switchgear and control panels for industrial machine control logic interfacing.
Operates with a 24V DC coil voltage for control circuits. Three-pole design supports 10A operational current switching. Rated for 690V DC contact voltage and 70W power handling. Includes 5 normally open contacts and 1 auxiliary contact for signaling.
Supports rail and plate mounting for versatile installation. Screw clamp terminals accept 1-4mm² conductor wires. Operational temperature range from -40°C to 70°C with derating. Mechanical durability rated to 30 million cycles.
Fast coil energisation and de-energisation times. Ideal for factory automation and industrial control applications. Explore additional Schneider Electric automation and control gear products in the EnvMart catalog to fulfill diverse industrial and manufacturing requirements.
