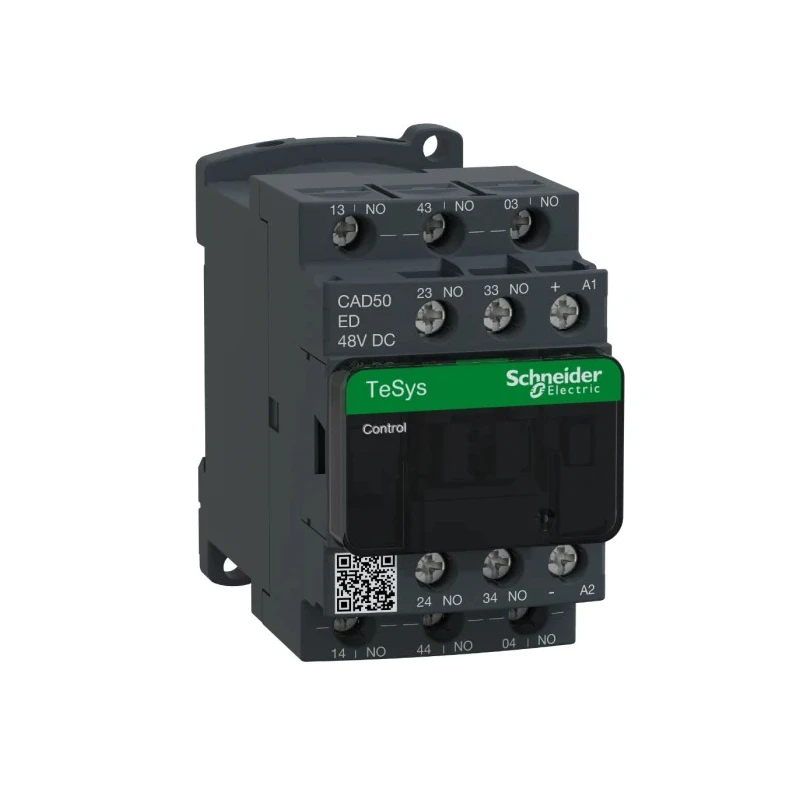

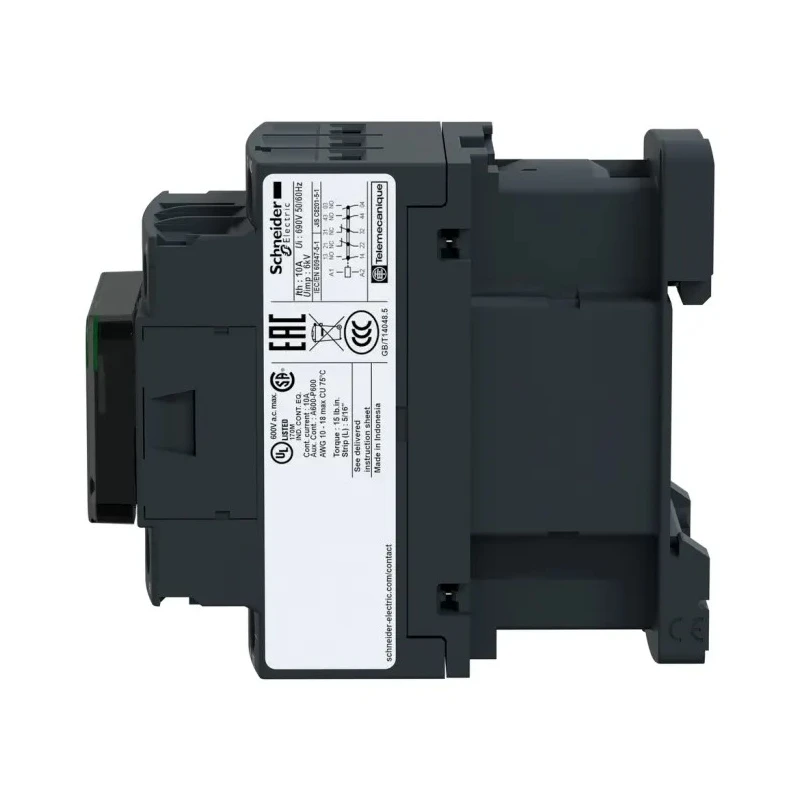

Schneider Electric CAD5 Contactor, 48V Coil Voltage, 3-Pole, 10 A Current, 70 W Power Rating CAD50ED

Name: Schneider Electric CAD5 Contactor, 48V Coil Voltage, 3-Pole, 10 A Current, 70 W Power Rating CAD50ED
Brand: Schneider Electric
SKU: 197764
Price: 151.14 USD
Availability: InStock



Category Contactors Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Function	Motor Control
Length	77mm
Model	CAD50ED
Depth	86mm
Width	45mm
Mount Type	DIN Rail
Series	CAD5
Power Rating	70W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	48V
Normal State Configuration	5 NO
Better World Claim	Designed for Disassembly
Contact Current	10A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	10A
Control Circuit Voltage Uc	48V
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Operates with a 48V coil voltage suitable for various automation applications.
Features 3 poles with 5 normally open contacts ensuring efficient electrical control.
Designed for motor control with high operational current rating of 10 A.
Compact size with dimensions 77 mm length, 45 mm width, and 86 mm depth for DIN rail mounting.
Equipped with screw clamp terminals for secure and reliable wiring connections.
Supports high operating rates up to 180 cycles per minute for industrial use.
Operational temperature range from -40°C to 70°C ensuring durability in varied environments.
Compliant with international standards including IEC, UL, CSA, CCC, and RoHS certifications.

Product Description

Schneider Electric CAD50ED is a high-quality contactor designed for robust motor control in industrial automation systems. Featuring a 48V DC coil with low inrush consumption and integrated surge suppression, this 3-pole contactor can operate at currents up to 10 A and voltages up to 690V AC.

The compact design, with a width of 45 mm, allows for easy installation on standard 35 mm DIN rails or secure fixation by screws. It incorporates screw clamp terminals to ensure strong electrical connectivity and supports high cycling rates of up to 180 cycles per minute, suitable for demanding operational environments.

Its operational temperature range from -40°C to +70°C makes it reliable under harsh ambient conditions. The device conforms to multiple international standards including IEC 60947 and UL listings, along with environmental directives such as RoHS and REACh, making it a certified Green Premium product focused on sustainability and designed for disassembly.

The contactor configuration includes five normally open contacts (5 NO), providing effective switching capability, along with one auxiliary contact in a normally open configuration, enhancing control versatility.

Schneider Electric CAD50ED is ideal for applications requiring motor control and automation tasks in manufacturing, HVAC systems, industrial electrical assemblies, and commercial setups.

Operates with a 48V coil voltage suitable for automation applications. 3 poles with 5 NO contacts for robust switching. 10 A contact current rating supporting various industrial loads. Compact DIN rail mount design for easy integration.

Screw clamp terminals ensure reliable connectivity. High switching frequency up to 180 cycles per minute. Wide operating temperature range (-40°C to 70°C). Meets IEC, UL, CSA, CCC, and RoHS standards. Green Premium product designed for sustainability and disassembly.

Includes one 1 NO auxiliary contact for control flexibility. Browse the Electronics & Electricals category at EnvMart for more Schneider Electric control gear and Contactors suitable for diverse industrial and commercial automation needs.
