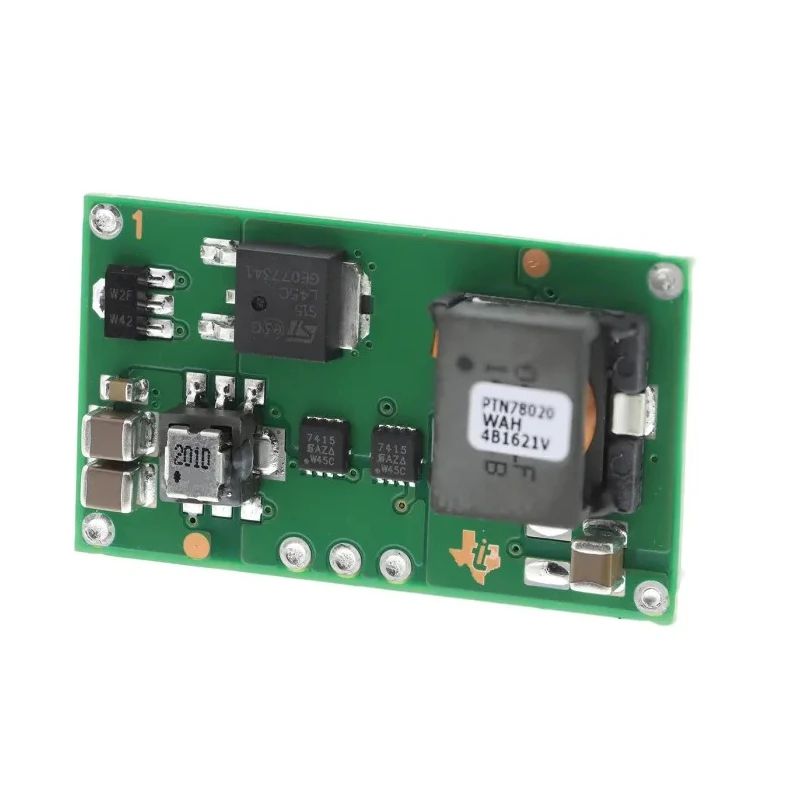

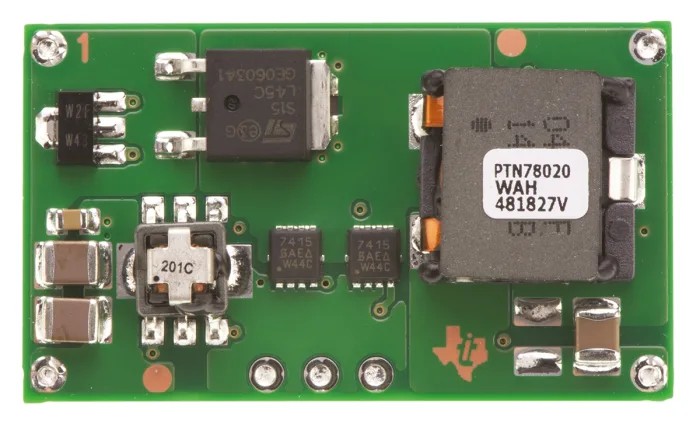

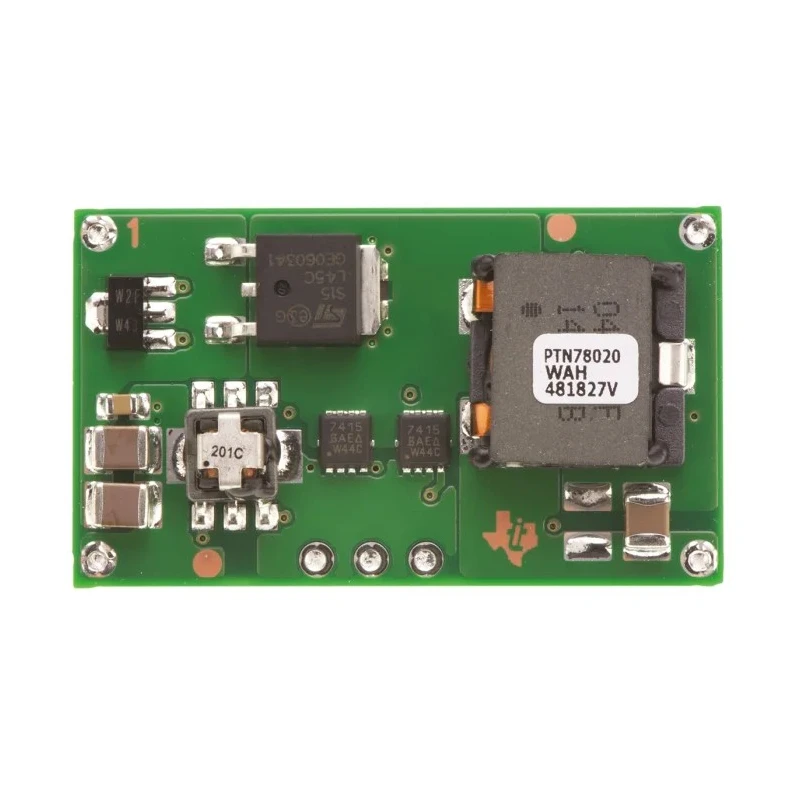

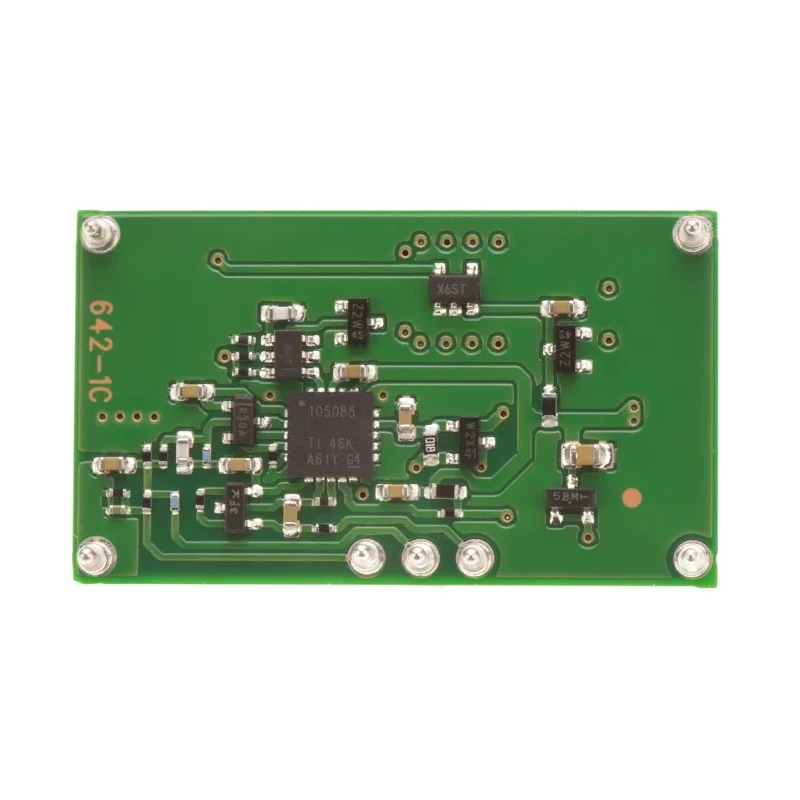

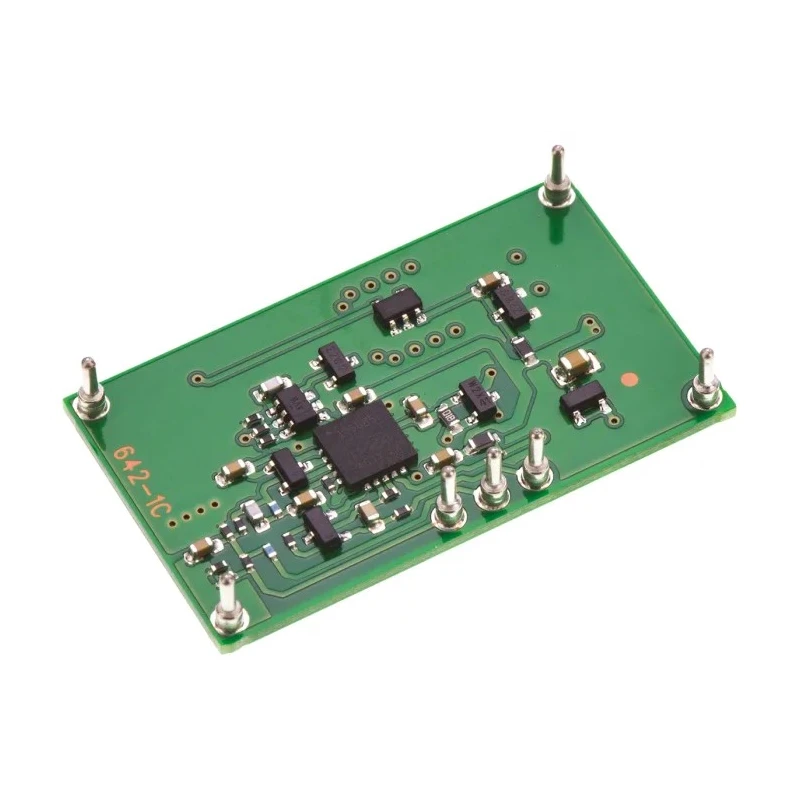

Texas Instruments Buck Converter Through Hole 15V Output Voltage 6A Output Current 90W Power PTN78020WAH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Power | 90W |
| Efficiency | 96% |
| Length | 37.97mm |
| Model | PTN78020WAH |
| Depth | 0.4mm |
| Gross Weight | 7.3g |
| Width | 22.1mm |
| Mount Type | Through Hole |
| Series | PTN78020 |
| Output Current | 6A |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Load Regulation | ±10 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 5600000h |
| Number of outputs | 1 |
| Ripple and Noise | 1% |
| Maximum Input Voltage | 36V |
| Line Regulation | ±10 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 15V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V |
| Output Voltage 2 | 36V |
Key Features
- This buck converter features an efficiency rating of 96 percent, ensuring energy-efficient performance.
- It operates within a temperature range of -40°C to 85°C for robust industrial applications.
- The DIP package includes 7 pins for through-hole mounting compatibility.
- The module includes precision enable, soft-start, and tracking for sequencing and is pin-to-pin compatible with modules supporting different load currents.
- Designed for non-isolated step-down DC-DC applications, it delivers low ripple and noise at 1 percent.
- The module complies with RoHS standards and passes EN55022 (CISPR22) Class B Radiated and Conducted EMI requirements.
- Its compact dimensions of 37.97mm length, 22.1mm width, and 0.4mm depth enable space-saving PCB mounting.
Product Description
Texas Instruments PTN78020WAH Buck Converter is a non-isolated, through-hole mount switching voltage regulator module designed for low-power step-down DC-DC applications. Delivering a stable 15V output voltage at up to 6A current, it supports efficient energy conversion at 90W power with 96% efficiency. Its compact DIP package measures 37.97mm long by 22.1mm wide and 0.4mm deep, making it suitable for space-constrained PCB layouts.
Its design features integrated shielded inductors, precision enable, soft-start, and tracking for sequencing, ensuring reliable operation and easy integration into electronic systems. The module provides low ripple and noise of 1%, critical for sensitive applications. With a broad operating temperature range from -40°C to 85°C, it is robust for use in industrial, commercial, and laboratory environments.
This buck Converter complies with RoHS environmental standards and meets electromagnetic compatibility with EN55022 Class B radiated and conducted EMI standards. Its non-isolated architecture suits applications that do not require galvanic isolation but demand high efficiency and thermal performance.
The module is pin-to-pin compatible with other Texas Instruments SIMPLE SWITCHER power modules of different load currents, simplifying design upgrades or variations. It supports a maximum input voltage of 36V and a minimum input voltage of 15V, making it adaptable to diverse power sources.
Reliability is enhanced with an MTBF of 5,600,000 hours, assuring long operational life. Its DIP package with seven pins provides secure through-hole mounting on printed circuit boards. This module is ideal for industrial power supply design, electronics manufacturing, instrumentation, and embedded systems requiring a stable, efficient DC-DC power solution.
