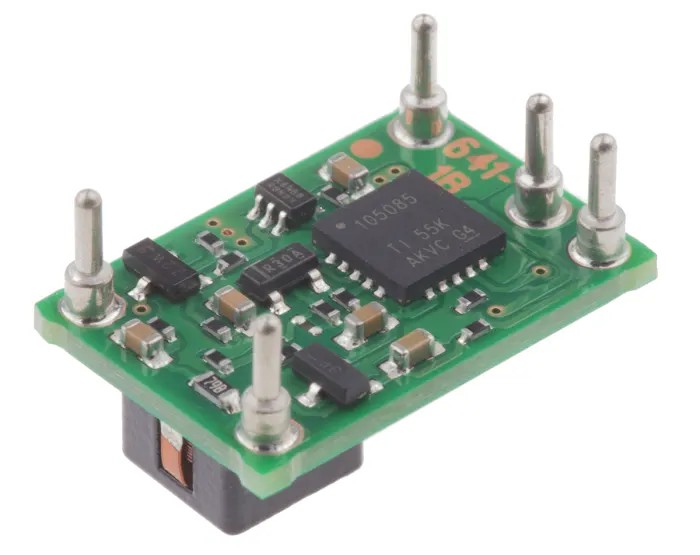

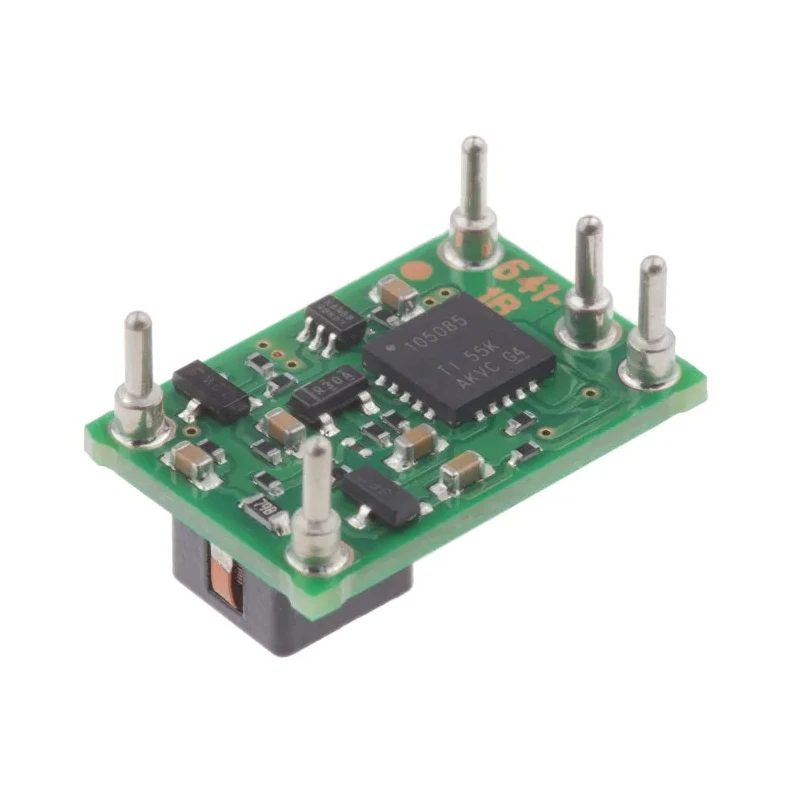

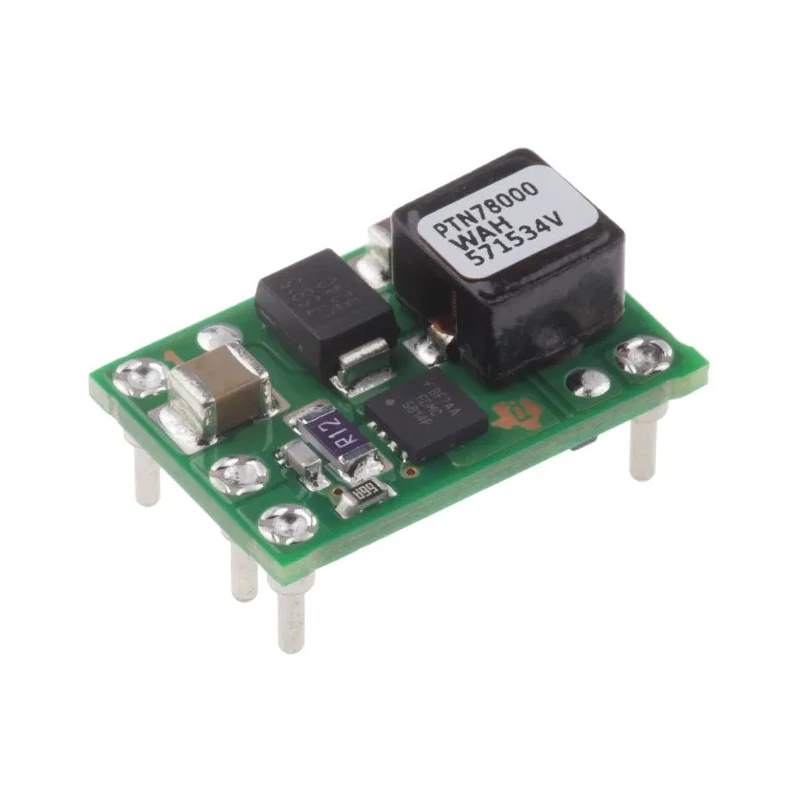

Texas Instruments Buck Converter Through Hole 2.5V Output Voltage 1.5A Output Current 22.5W PTN78000WAH

Texas Instruments PTN78000WAH Buck Converter Through Hole is a high-performance DC-DC step-down power module designed for efficient voltage regulation in low power applications. It offers a precise 2.5V output voltage at a continuous output current of 1.5A and a power rating of 22.5W. The device features high efficiency of up to 95%, minimizing heat generation and energy loss during operation.

The regulator is housed in a compact DIP package with a 5-pin through-hole mount, making it suitable for PCB mounting in electronic components and systems. Its thermal performance and EMI protection comply with industrial standards, allowing its use in environments with demanding requirements.

Designed for rugged industrial and commercial use, it operates reliably within a broad temperature range from -40°C to 85°C. The input voltage range accommodates from 7V minimum up to a maximum of 36V, providing versatility for various power source configurations.

The PTN78000WAH offers line and load regulation within ±10%, ensuring voltage stability against input fluctuations and changing load conditions, with a ripple and noise level maintained at 1% for sensitive electronics. The product's long mean time between failures (MTBF) of 8,900,000 hours underscores its robustness and quality.

This non-isolated power module is part of Texas Instruments’ SIMPLE SWITCHER® family, supporting applications in industrial tools, laboratory equipment, manufacturing devices, and other power-sensitive systems requiring compact and efficient DC-DC conversion.

High efficiency rating of 95% ensures minimal power loss. Compact DIP package with 5 pins and through-hole mounting type. Wide operating temperature range from -40°C to 85°C suitable for harsh environments. Supports input voltage range from 7V to a maximum of 36V.

Features ±10% line and load regulation for stable output. Low ripple and noise at 1% for clean output voltage. MTBF of 8,900,000 hours ensuring high reliability and long life. Non-isolated step-down (buck) power module ideal for space-saving low power applications.

Complies with RoHS, ANSI, REACH, ESDA, and JEDEC standards for quality and safety.
