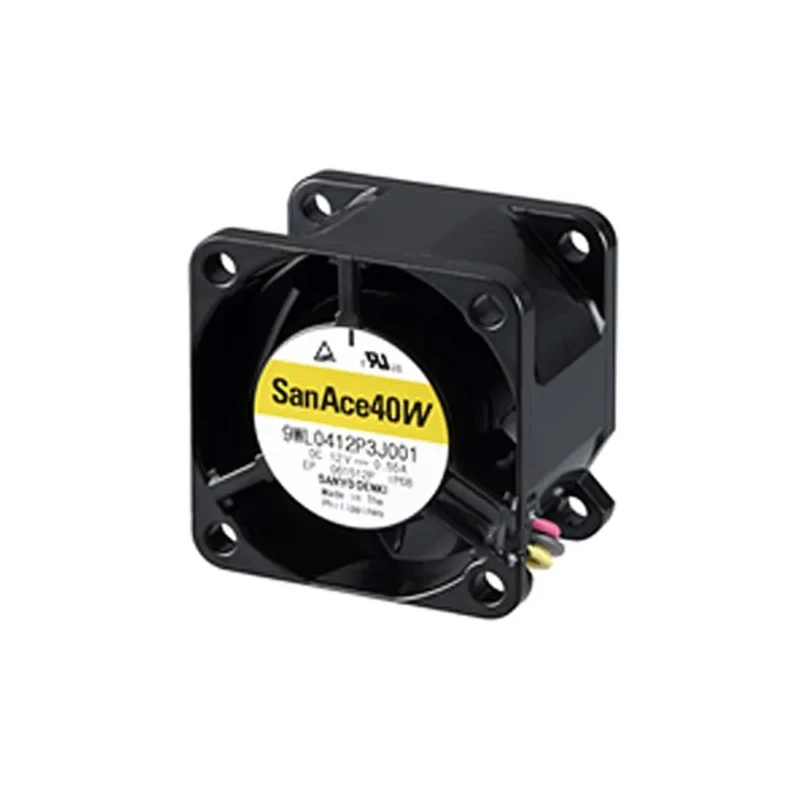

Sanyo Denki San Ace 9WL Series Axial Fan 24V DC 6.24W 260mA Max 17500 RPM IP68 40mm x 40mm x 28mm
Specifications
| Country of Origin | Philippines |
|---|---|
| Power Consumption | 6.24W |
| Brand | Sanyo Denki |
| Height | 40mm |
| Fan Speed | 17500rpm |
| Air Flow | 37.8m³/h |
| Model | IP68 |
| Depth | 28mm |
| IP Rating | IP68 |
| Noise Level | 51dB |
| Width | 40mm |
| Series | San Ace 9WL |
| Maximum Current | 260mA |
| Terminal type | Screw |
| Supply Voltage | 24V dc |
| Bearing Type | Ball |
| Standards/Approvals | RoHS |
| Fan Frame Size | 40 mm |
| Fan Frame Type | Square |
| Direction of Curve | Backward |
Key Features
- This axial fan delivers high performance with a maximum current of 260mA.
- It features a 17500 rpm fan speed ensuring efficient cooling.
- The fan frame size is 40 mm square with a 40mm height and 28mm depth.
- The aluminum frame and plastic impeller provide corrosion resistance for harsh environments.
- The IP68 rating ensures dustproof and water submersion protection suitable for industrial applications.
- Low noise output of 51dB makes it suitable for quiet environments.
- Backward curve blade design improves airflow efficiency.
- Incorporates PWM speed control and reverse polarity protection for electrical safety.
Product Description
Sanyo Denki 9WL0424P3J001 San Ace 9WL Series Axial Fan operates at 24V DC with a power consumption of 6.24W, delivering an airflow of 37.8 m³/h. It is designed for reliable cooling in industrial and commercial applications where durability and performance are critical.
The fan spins at 17500 RPM with a maximum current of 260mA and produces low noise of 51dB, making it effective for environments requiring quiet operation such as server rooms and electrical enclosures. The frame is constructed from aluminum with a corrosion-resistant plastic impeller, suitable for damp or humid conditions.
Its IP68 ingress protection rating certifies the fan as dust-tight and capable of withstanding submersion in water beyond 1 meter for up to 30 minutes, ensuring suitability for harsh industrial environments. The backward curved fan blade design optimizes airflow and static pressure to improve cooling efficiency.
Additional technical features include pulse-width modulation (PWM) speed control for energy efficiency and reverse polarity protection to enhance electrical safety. The fan’s operating temperature range from -20°C to +70°C allows use in diverse environmental conditions.
The compact dimensions of 40 mm by 40 mm by 28 mm (LxWxH) allow for easy integration into equipment requiring dependable and long-lasting cooling. The fan is rated for an expected lifetime of approximately 150,000 hours at 60°C operating temperature, underscoring its durability for continuous use.
This product features a 40 mm square aluminum frame with a plastic impeller. It is designed for cooling applications in computer/server rooms and electrical cabinets. The IP68 rating makes it suitable for damp or industrial water-exposed settings.
Backward blade curve optimizes airflow efficiency with minimal noise. PWM speed control function and reverse polarity protection enhance energy use and safety. Durable construction supports a wide operating temperature range from -20°C to +70°C.
A long operational lifespan of 150,000 hours at 60°C is expected for continuous cooling performance.
Choose the Sanyo Denki San Ace 9WL0424P3J001 for high-quality industrial Axial Fan solutions that combine performance, durability, and resistance in demanding environments. Explore more industrial cooling fans and solutions in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum fan speed of this axial fan is 17500 RPM.
It delivers an airflow of 37.8 m³/h.
The power consumption is 6.24W.
The fan has an IP68 rating, making it dust-tight and capable of withstanding water submersion beyond 1 meter for up to 30 minutes.
The dimensions of the fan are 40 mm in width, 40 mm in height, and 28 mm in depth.
The noise level is rated at 51 dB, making it suitable for quiet environments.
It uses a ball bearing type for enhanced performance.
The operating temperature range is from -20°C to +70°C.
Yes, it includes reverse polarity protection to enhance electrical safety.
It has an expected operational lifespan of approximately 150,000 hours at 60°C.
The terminal type is screw, facilitating easy installation.
The fan features a backward curve blade design that optimizes airflow and static pressure.
