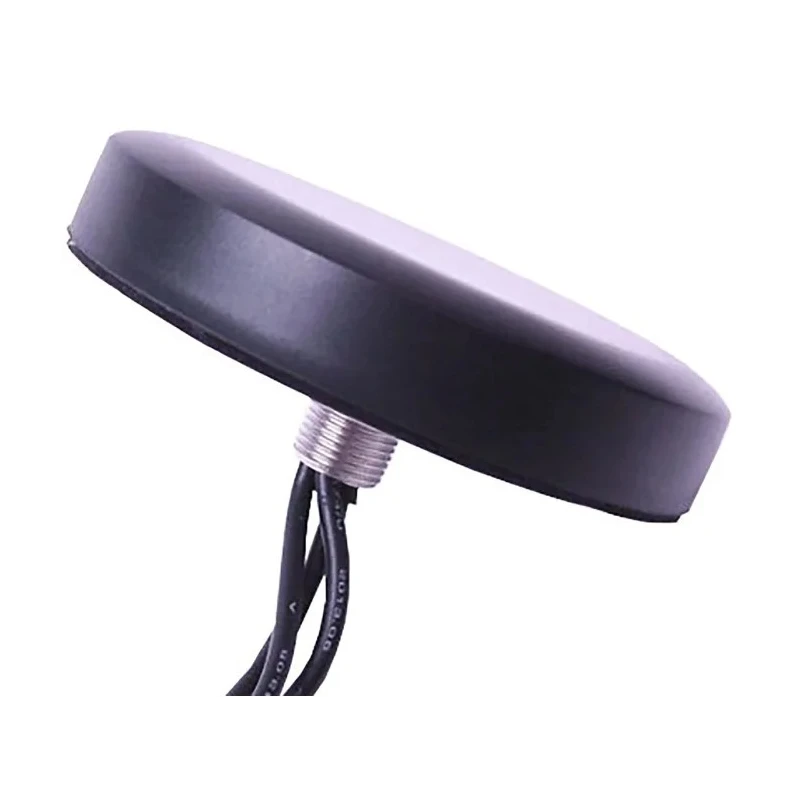

Siretta Multi-Band Antenna, Puck Form, SMA Male Connector, 698 MHz to 2.7 GHz, 2G (GSM/GPRS) TANGO22/3M/SMAM/SMAM/SMAM/26

Free Delivery in India | Lowest Global Shipping Charges

Siretta Multi-Band Antenna, Puck Form, SMA Male Connector, 698 MHz to 2.7 GHz, 2G (GSM/GPRS) TANGO22/3M/SMAM/SMAM/SMAM/26

Name: Siretta Multi-Band Antenna, Puck Form, SMA Male Connector, 698 MHz to 2.7 GHz, 2G (GSM/GPRS) TANGO22/3M/SMAM/SMAM/SMAM/26
Brand: Siretta
SKU: 196754



Category Multi-Band Antennas Brand Siretta Condition New

Specifications

Country of Origin	India
Diameter	80 mm
Brand	Siretta
Operating Temperature	-40 to +85C
Height	15 mm
Model	TANGO22/3M/SMAM/SMAM/SMAM/26
Connector Type	SMA
Wifi	2.4 GHz
Series	Tango 22
GPS	1575.42 MHz
Gain	2dBi
Lead Length	3m
Impedance	50 Ω
Standards/Approvals	RoHS
Maximum Frequency	2.7GHz
Connector Gender	Male
Minimum Frequency	698MHz
Internal/External	External
RF Protocols	2G (GSM/GPRS), 3G (UTMS), GPS, WiFi
Antenna Physical Form	Puck
Antenna Mount Type	Through Hole/Bolted
Directivity	Omni-Directional
Number of Bands	4
GPS Gain	28 dB
GSM VSWR	2
GPS VSWR	1.5
GSM Polarisation	Vertical
GPS Polarisation	RHCP
Quad Band GSM/GPRS	850, 900, 1800, 1900 MHz
3G	2100 MHz
WiFi Gain	0 dBi
WiFi VSWR	2

Key Features

Compact puck-shaped antenna suitable for indoor and outdoor use with IP67 rating.
Supports quad band GSM/GPRS (850, 900, 1800, 1900 MHz) and 3G at 2100 MHz.
Includes three RG174 coaxial cables, each terminated with SMA Male connectors and 3m lead length.
Omni-directional design with 2 dBi GSM gain, 0 dBi WiFi gain, and 28 dB GPS gain.
Wide operating temperature range from -40 to +85 degrees Celsius.
Robust build with through hole/bolted mount and external use capability.
Compatible with 2G (GSM/GPRS), 3G (UTMS), GPS, and WiFi applications.
Ideal for M2M uses such as car park utilities metering, traffic monitoring, and GPS tracking.

Product Description

Siretta TANGO22/3M/SMAM/SMAM/SMAM/26 is a multi-band puck antenna designed for versatile wireless communication needs across 2G (GSM/GPRS), 3G (UTMS), GPS, and WiFi bands. Its compact puck form factor makes installation easy and suitable for internal or external mounting due to its IP67 rating, ensuring protection against dust and water ingress.

The antenna integrates three antennas into one unit, enabling quad band GSM & 3G, WiFi, and GPS reception. The antenna comes with three RG174 coaxial cables, each terminated with SMA male connectors and measuring 3 meters in length, allowing flexible connectivity options.

With omni-directional directivity and gains of 2 dBi for GSM, 0 dBi for WiFi, and 28 dB for GPS, this antenna ensures stable and efficient signal reception in a variety of environments. The electrical impedance is 50 ohms with VSWR values of 2 for GSM and WiFi, and 1.5 for GPS, ensuring minimal signal reflection and loss.

The operating temperature range of -40 to +85°C makes this antenna reliable across diverse climate conditions. The antenna's dimensions are 80 mm in diameter and 15 mm in height, providing a compact footprint that is easy to mount through holes or bolted fixtures or use with its adhesive base.

Compact puck-shaped antenna rated to IP67 for internal and external mounting. Quad band GSM/GPRS frequencies 850, 900, 1800, 1900 MHz and 3G frequency 2100 MHz. WiFi operation at 2.4 GHz and GPS at 1575.42 MHz with high GPS gain of 28 dB.

Three 3m RG174 coaxial leads with male SMA connectors included. Omni-directional antenna with 2 dBi GSM gain and vertical polarisation. Durable operating temperature range from -40 to +85 degrees Celsius. Low VSWR for efficient transmission and minimal losses.

Puck form factor measuring 80 mm diameter and 15 mm height. Ideal for industrial applications like traffic monitoring, utilities metering, and M2M communications.

This antenna is perfectly suited for industrial, transportation, and remote monitoring applications requiring reliable multi-band wireless connectivity. Explore more Multi-Band Antennas and components on EnvMart for your electronic component needs.
