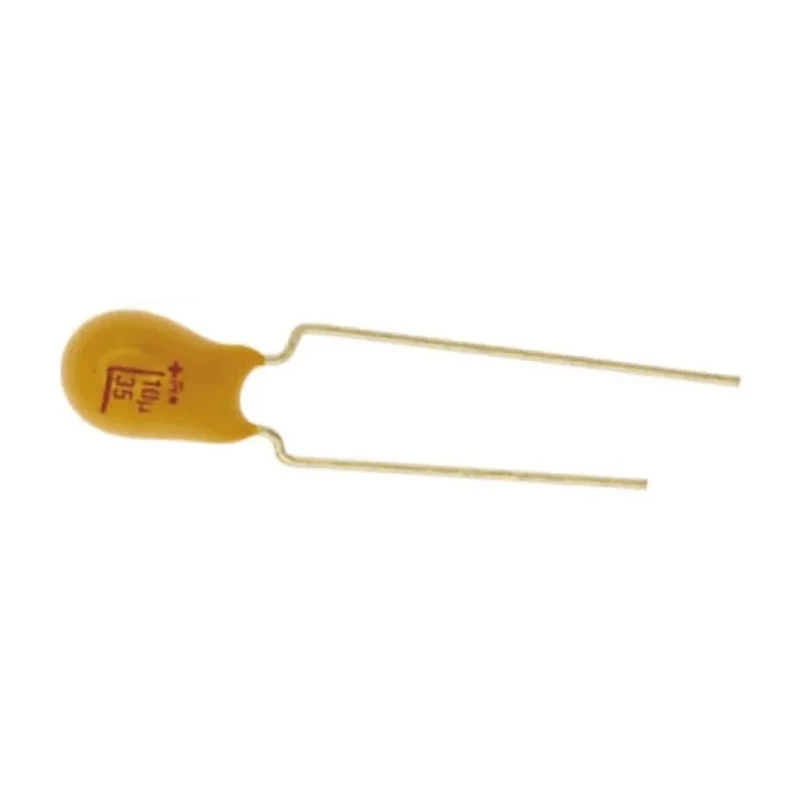

KYOCERA AVX 680 nF 35V DC MnO2 Technology Solid Electrolyte Tantalum Capacitor Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 35V dc |
| Diameter | 4.5mm |
| Brand | KYOCERA AVX |
| Height | 8.5mm |
| Length | 8.5mm |
| Model | MnO2 |
| Technology | MnO2 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | Tap |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 680nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Dissipation Factor | 4% |
| Leakage Current | 0.5μA |
| Electrolyte Type | Solid |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.5mm |
| Equivalent Series Resistance ESR | 10Ω |
| Lead Style | Outside Bend |
Key Features
- Manufactured with MnO2 solid electrolyte technology offering high temperature stability.
- Capacitance of 680 nF with ±20% tolerance for flexible circuit design.
- Through hole mounting ensures robust mechanical and electrical connection.
- Low leakage current of 0.5 μA and low dissipation factor of 4% for efficient performance.
- Lead pitch of 5 mm and lead diameter of 0.5 mm with solder terminal type.
- Operating temperature range from -55°C to 125°C for harsh environment usage.
- Compliance with RoHS standards ensuring environmental safety.
- TAP series resin dipped radial capacitors designed for industrial applications.
Product Description
KYOCERA AVX TAP684M035CCS is a 680 nF tantalum capacitor utilizing MnO2 solid electrolyte technology, designed for through hole mounting applications. Rated at 35V DC, this capacitor offers exceptional temperature stability, low leakage current, and reliable performance for industrial electronic circuits.

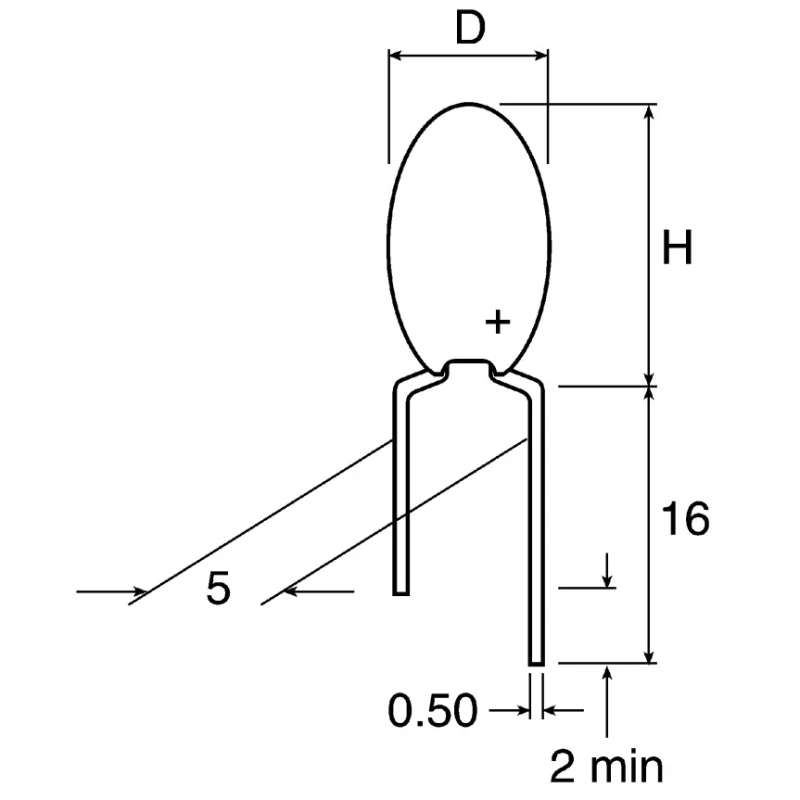

It features a resin-dipped radial design from the TAP series, built to withstand operating temperatures between -55°C and 125°C, with voltage derating at higher temperatures ensuring durability. The capacitor has a compact form factor with 8.5 mm length and height, and a diameter of 4.5 mm, making it suitable for applications where space is constrained.
This component is designed with low equivalent series resistance (ESR) of 10 Ω, low dissipation factor of 4%, and a leakage current of 0.5 μA, which minimizes power loss and improves energy efficiency. Its 5 mm lead pitch and 0.5 mm lead diameter with solder terminal type provide secure and stable mounting on printed circuit boards.
With a tolerance of ±20%, the capacitor supports precision requirements in power and signal processing circuits. It is compliant with RoHS environmental standards, making it a suitable choice for sustainable and regulatory-compliant designs.
Typical industrial applications include power supplies, telecommunications, automotive electronics (non-automotive standard), and various consumer electronics requiring stable and reliable capacitive elements.
Manufactured with MnO2 solid electrolyte technology offering high temperature stability. Capacitance of 680 nF with ±20% tolerance for flexible circuit design. Rated voltage of 35V DC suitable for a wide range of electronic circuits.
Through hole mounting ensures robust mechanical and electrical connection. Low leakage current of 0.5 μA and low dissipation factor of 4% for efficient performance. Lead pitch of 5 mm and lead diameter of 0.5 mm with solder terminal type.
Operating temperature range from -55°C to 125°C for harsh environment usage. Compact dimensions: 8.5 mm length and height with 4.5 mm diameter. Compliance with RoHS standards ensuring environmental safety. TAP series resin dipped radial capacitors designed for industrial applications.
Explore more KYOCERA AVX Tantalum Capacitors and electronic components at EnvMart for your industrial, manufacturing, and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 680 nF with a tolerance of ±20%.
The maximum operating temperature for this capacitor is 125°C.
It utilizes through hole mounting for robust mechanical and electrical connections.
This capacitor is rated for 35V DC, suitable for a wide range of electronic circuits.
The lead pitch is 5 mm and the lead diameter is 0.5 mm, designed for secure mounting.
It has a low leakage current of 0.5 μA, contributing to efficient performance.
The dissipation factor is 4%, which helps minimize power loss.
This capacitor has a length and height of 8.5 mm and a diameter of 4.5 mm.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
Typical applications include power supplies, telecommunications, automotive electronics, and consumer electronics.
It utilizes a solid MnO2 electrolyte technology, providing high temperature stability.
The equivalent series resistance (ESR) is 10 Ω, which contributes to its efficient performance.
