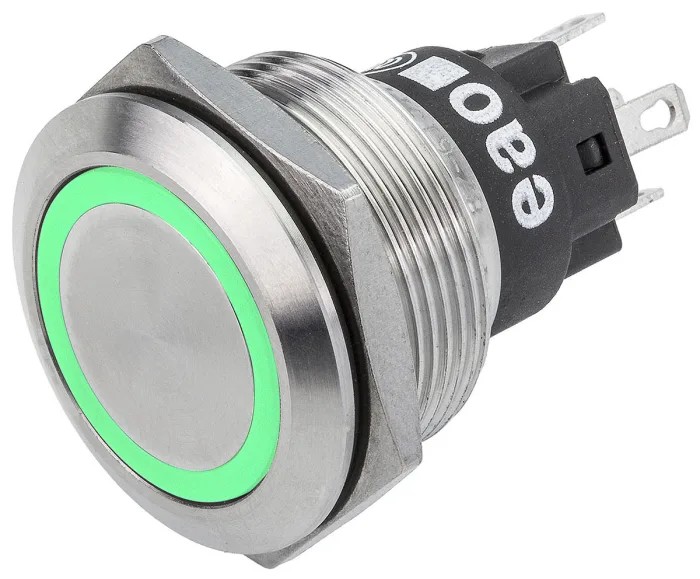

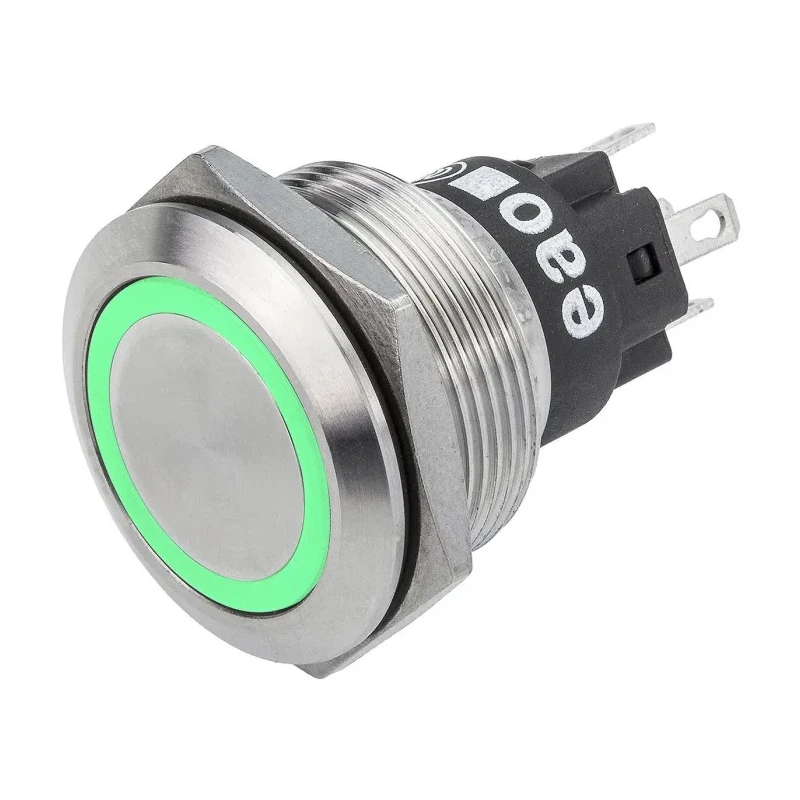

EAO Illuminated Momentary Push Button Switch, Panel Mount, 22.3 mm Cutout, SPDT, Green LED, IP65, IP67, 240 V 82-6151.1136



Category Push Button Switches & Components Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The actuator is round and silver in color, providing clear tactile feedback.
Equipped with a green LED indicator for illumination.
Designed to IP65 and IP67 standards, ensuring protection against dust and water ingress.
Suitable for operation from -30°C to 70°C, supporting a wide range of environments.
Supports contact voltages of up to 240 V dc and 240 V ac with a 3A contact current rating.
Constructed for high durability with IK10 impact resistance.
Compact length of 34.5 mm suits panel installation requirements.
Complies with CB, CCC, cUL, and UL standards for reliable safety and quality.

Product Description

EAO 82-6151.1136 is an illuminated momentary push button switch from the robust Series 82, designed for panel mounting with a 22.3 mm cutout. Featuring a single-pole double-throw (SPDT) contact configuration, this switch delivers reliable switching performance for demanding industrial and commercial applications.

The actuator adopts a round shape with a silver color, combined with a green LED illumination that enhances visibility in operational environments. This unit is protected to IP65 and IP67 standards, offering excellent resistance to dust and water, making it suitable for exposed or harsh environments where durability is paramount.

Operating temperature ranges from -30°C up to 70°C, allowing use in a variety of climates. The switch is designed to handle contact voltages up to 240 V dc and 240 V ac, with a contact current capacity of 3A, ensuring adaptability to multiple electrical systems.

Series 82 switches are manufactured with stainless steel housings rated for IK10 impact resistance, providing vandal resistance and reliable operation over long service lives, (>1 million cycles). The product meets international safety standards including CB, CCC, cUL, and UL certifications.

Typical usages include installations in exposed public areas, medical equipment, audio and video devices, building management systems, and factory machinery, where robust and responsive push button switches are essential.

The actuator is round and silver in color, providing crisp tactile feedback. Green LED illumination enhances operability in dim environments. IP65 and IP67 ratings ensure protection against dust and water ingress. Designed for operation between -30°C and +70°C temperatures.

3A contact rating supports a variety of electrical loads. Vandal-resistant IK10 stainless steel housing for tough environments. Meets key safety certifications: CB, CCC, cUL, and UL. Compact 34.5 mm length suits panel mount installations.

Single-pole double-throw (SPDT) configuration for versatile switching. Explore our extensive range of push button switches to find solutions tailored for electrical control and automation projects on EnvMart.
