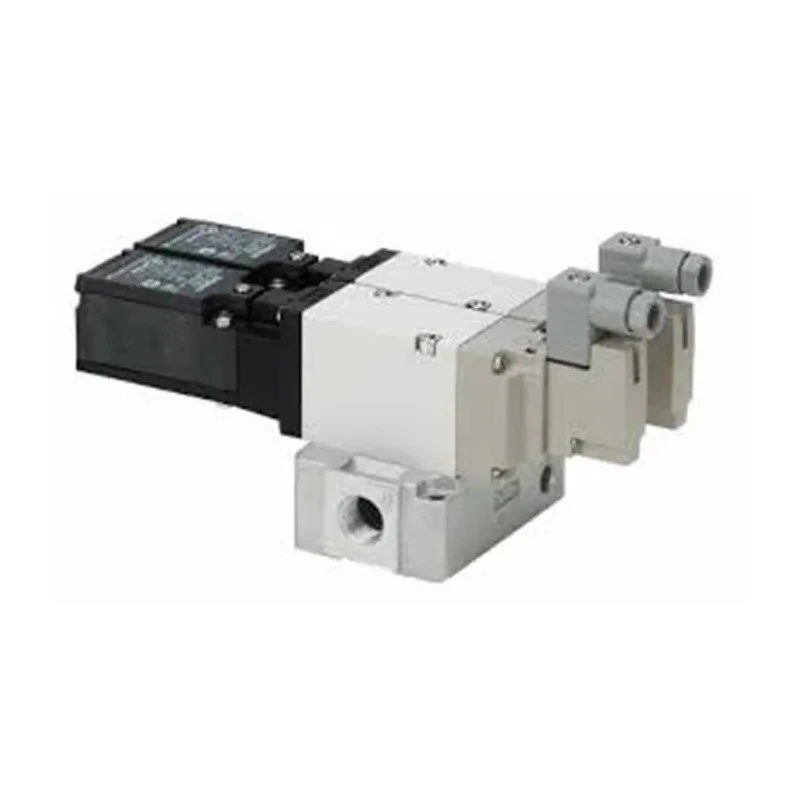

SMC Pneumatic Solenoid Valve with 1/2 in Threaded G Port, 3 Ports, Die Cast Aluminium Body, 24V Solenoid Power VP700
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 1 Mpa |
| Height | 88.8mm |
| Length | 224.8mm |
| Model | VP700 |
| Width | 40mm |
| Mount Type | Base |
| Series | VP700 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Port Type | Threaded |
| Number of Positions | 3 |
| Port Size | 1/2 in |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Standards/Approvals | CE, cULus, RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0.25MPa |
| Electrical Connection Type | DIN Connector |
| Maximum Pilot Pressure | 0.7MPa |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 0.45W |
Key Features
- Constructed from durable die-cast aluminium for longevity and lightweight handling.
- Features a 1/2 inch G-threaded female port connection with three ports for versatile integration.
- Operates efficiently within temperature ranges from -10°C to 50°C.
- Supports maximum operating pressure of 1 MPa and pilot pressures between 0.25 MPa and 0.7 MPa.
- Designed with IP65 enclosure rating for dust and moisture protection.
- Equipped with DIN connector type electrical connection and single solenoid actuation.
- Complies with CE, cULus, and RoHS standards ensuring safety and quality.
- Ideal for use in automated pneumatic machinery and safety circuit controls.
Product Description
SMC VP744-5DZ1-04F-M-X538 Pneumatic Solenoid Valve is a high-performance directional control device designed for industrial pneumatic systems. Powered by a 24V solenoid, this valve is part of the VP700 series and features a robust die-cast aluminium body for extended durability and reliability in harsh environments.
With a threaded G 1/2 female port and three ports in total, it accommodates a versatile range of pneumatic circuit designs. Its operating temperature range from -10°C to 50°C and maximum operating pressure of 1 MPa ensure wide applicability in various industrial settings. The valve's internal pilot design and modular connection simplify integration with downstream FRL units.
Equipped with an IP65-rated enclosure, the valve offers excellent protection against dust and moisture ingress, making it suitable for demanding factory environments. It includes a safety-certified design complying with ISO13849-1, featuring redundancy and a safety limit switch to support fail-safe operation in critical applications.
This product is widely used in automated pneumatic machinery, safety circuit systems, pressure release applications, and assembly line automation, supporting efficient and secure industrial processes. The electrical interface uses a DIN connector with a single solenoid type actuation mechanism, consuming 0.45W solenoid power.
Durable die-cast aluminium body construction. Threaded G 1/2 female port with three ports for pneumatic flow control. Operates between -10°C and 50°C with 1 MPa max pressure. Internal pilot reduces design complexity and enhances reliability.
IP65 enclosure rating for dust and moisture protection. Safety certified to ISO13849-1 with redundant safety limit switch. Compliant with CE, cULus, and RoHS standards. Suitable for automated pneumatic machinery and industrial safety circuits.
Set contains one VP744-5DZ1-04F-M-X538 solenoid valve unit as described. Explore more industrial pneumatic valves and components within EnvMart for your automation and fluid power needs.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 MPa.
It operates efficiently within a temperature range from -10°C to 50°C.
This unit features three ports for versatile integration into pneumatic systems.
It is equipped with a DIN connector type electrical connection.
The solenoid power consumption is 0.45W.
The body is constructed from die-cast aluminium, providing durability and lightweight handling.
It complies with CE, cULus, and RoHS standards, ensuring safety and quality.
It has a 1/2 inch G-threaded female port connection.
The actuation type is single solenoid.
The dimensions are 88.8 mm in height, 224.8 mm in length, and 40 mm in width.
The minimum pilot pressure is 0.25 MPa and the maximum is 0.7 MPa.
It is widely used in automated pneumatic machinery and safety circuit controls.
