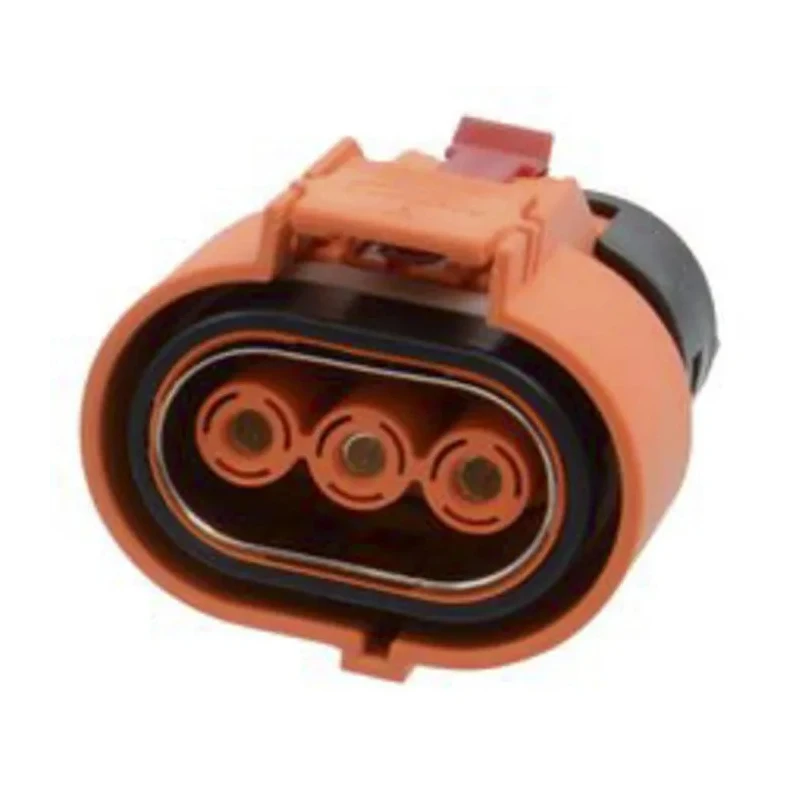

Amphenol Industrial Epower Lite RADSOK Plug with HVIL EV Connector Male 70A ELP3A04 / C10-737486-3AS4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 40.8mm |
| Model | ELP3A04 / C10-737486-3AS4 |
| Depth | 61.4mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Plug with HVIL |
| Width | 49.8mm |
| Mount Type | Cable |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 10mm² |
| Operating Voltage | 800V |
| For Use With | 3 Position ePower-Lite Receptacle with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- The connector belongs to the Epower Lite series, featuring a compact and lightweight design.
- It supports a maximum operating voltage of 800V and a current capacity of 70A.
- Constructed with plastic housing, it offers IP67 waterproof rating and complies with IEC 60529 and UL 94 V-0 standards.
- Designed with 1 row and 3 contacts, suitable for crimp termination and straight orientation.
- The connector features a Type A key, male connector gender, and female contact gender with 3.6mm pin diameter.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Its orange color and durable build support over 100 mating cycles ensuring high durability.
- Certified as a renewable energy solution and field-installable with CPA to avoid mis-mating.
Product Description
Amphenol Industrial ELP3A04 / C10-737486-3AS4 RADSOK Plug with HVIL EV Connector Male is a high-performance electrical connector designed primarily for electric vehicle (EV) and hybrid vehicle power connections. This connector integrates RADSOK technology, which ensures a low-resistance connection facilitating higher amperage with reduced thermal rise and voltage drop for efficient power transmission.
The compact and lightweight form factor of the Epower Lite series makes installation and handling easier, especially in space-constrained environments. With an operating voltage rating of 800V and current capacity of 70 amperes, it suits demanding automotive electrical applications requiring reliable high-current connections.
Its plastic housing ensures durability and offers a waterproof protection rated to IP67, making it suitable for harsh environmental conditions. It also meets rigorous industry standards such as IEC 60529 for touch proofing, and UL 94 V-0 for flammability, ensuring safety and compliance.
The connector features a single row with three contacts, supporting a 10mm² wire size, crimp termination type, and a straight orientation. Its male connector gender with female contacts and 3.6mm pin diameter provide secure mating. The temperature range from -40°C to 125°C guarantees operational stability in extreme climates.
Additional features include a Type A keying mechanism to prevent incorrect mating, field installability, and repairability. The connector is part of a renewable energy solution portfolio, contributing to sustainable electric vehicle technologies.
Compact and lightweight design with robust temperature resistant shell. Low-resistance RADSOK technology for efficient electrical conductivity. Waterproof rating of IP67 and touch-proof compliance (IEC 60529). Flammability rating UL 94 V-0 ensures safety in automotive applications.
Durability exceeding 100 mating cycles for reliable use. Designed specifically for EV and Hybrid vehicle electrical systems. Field installable with CPA to prevent mis-mating, enhancing usability.
This EV Connector is an ideal component for industrial, automotive, and renewable energy applications seeking safe, durable, and efficient power connection solutions. Explore more products in the EV Connectors category at EnvMart to meet your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this connector is 800V.
This model has a current capacity of 70A.
It has an IP67 waterproof rating, making it suitable for harsh environmental conditions.
The housing of this connector is made from plastic.
It operates reliably in temperatures ranging from -40°C to 125°C.
This connector features three contacts.
It uses a crimp termination type.
The pin diameter is 3.6mm.
The connector has a straight orientation.
It complies with IEC 60529 and UL 94 V-0 standards.
This model is orange in color.
It features a Type A keying mechanism to prevent incorrect mating.
