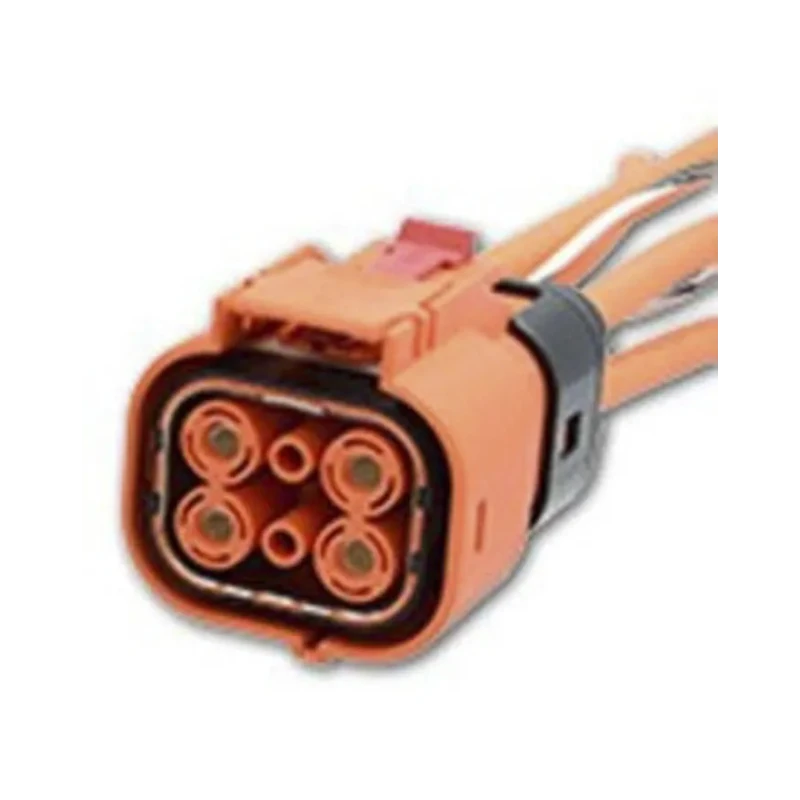

Amphenol Industrial Epower Lite RADSOK Plug with HVIL EV Connector Male 70A ELP4A01 / C10-737488-4AS1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 40.4mm |
| Model | ELP4A01 / C10-737488-4AS1 |
| Depth | 58.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Plug with HVIL |
| Width | 40.9mm |
| Mount Type | Cable |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 2 |
| Wire size | 2.5mm² |
| Operating Voltage | 800V |
| For Use With | 4 Position ePower-Lite Receptacle with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- The connector operates up to 800V with a durable plastic housing.
- It features an IP67 waterproof rating ensuring performance in harsh environments.
- Supports wire size of 2.5mm² with crimp termination for secure connections.
- Designed with RADSOK technology for low resistance and reduced voltage drop.
- Operating temperature range from -40°C to 125°C supports extreme conditions.
- The plug includes 4 contacts arranged in 2 rows with Type A keying for correct mating.
- Compact straight orientation measures approximately 40.9mm width, 40.4mm height, and 58.5mm depth.
- Meets IEC 60529 and UL 94 V-0 safety and flammability standards.
Product Description
Amphenol Industrial ELP4A01 / C10-737488-4AS1 RADSOK Plug with HVIL EV Connector Male is a high-performance electrical connector designed for electric and hybrid vehicle power systems operating up to 70 amperes. This compact and lightweight connector features robust plastic housing material, ensuring dielectric protection and mechanical durability suitable for demanding industrial, automotive, and renewable energy applications.
The connector uses advanced RADSOK technology to provide low electrical resistance, minimizing voltage drop and temperature rise, which optimizes efficiency and safety. It accommodates a wire size of 2.5mm² with reliable crimp termination and includes 4 female contacts arranged in 2 rows. The connector’s straight orientation and Type A keying prevent mis-mating and ensure correct assembly with compatible ePower-Lite receptacles, equipped with HVIL (High Voltage Interlock Loop) for enhanced safety.
Designed for extreme environments, this connector operates reliably within a temperature range of -40°C to 125°C and has an IP67 ingress protection rating, rendering it waterproof. It conforms to IEC 60529 and UL 94 V-0 standards, providing certified safety against water ingress and flammability, thereby supporting industrial and automotive regulatory compliance.
The connector is compact with precise dimensions: width 40.9mm, height 40.4mm, and depth 58.5mm. The orange color coding supports easy identification and safety during installation and maintenance. This product is ideal for electric vehicle charging, hybrid vehicle powertrains, and renewable energy equipment requiring reliable high-current connectors.
It offers environmental benefits aligned with renewable energy solutions, supporting sustainable technology development. Suitable for use in industrial, automotive, manufacturing, and commercial EV infrastructure applications.
For engineers and system integrators, this connector provides a durable, efficient, and safety-conscious solution that meets industry standards for high voltage, high current applications.
Explore more connectors and power system components in the EV Connectors category on EnvMart for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a maximum voltage of 800V.
This model has a current rating of 70A.
It has an IP67 waterproof rating, ensuring protection against water ingress.
The operating temperature range is from -40°C to 125°C, suitable for extreme conditions.
It uses a crimp termination type for secure connections.
This connector includes 4 female contacts arranged in 2 rows.
It supports a wire size of 2.5mm².
The connector features a straight orientation.
It meets IEC 60529 and UL 94 V-0 standards for safety and flammability.
It is designed with Type A keying to prevent mis-mating.
The housing material is made of plastic, providing dielectric protection.
This connector is ideal for electric vehicle charging, hybrid vehicle powertrains, and renewable energy equipment.
