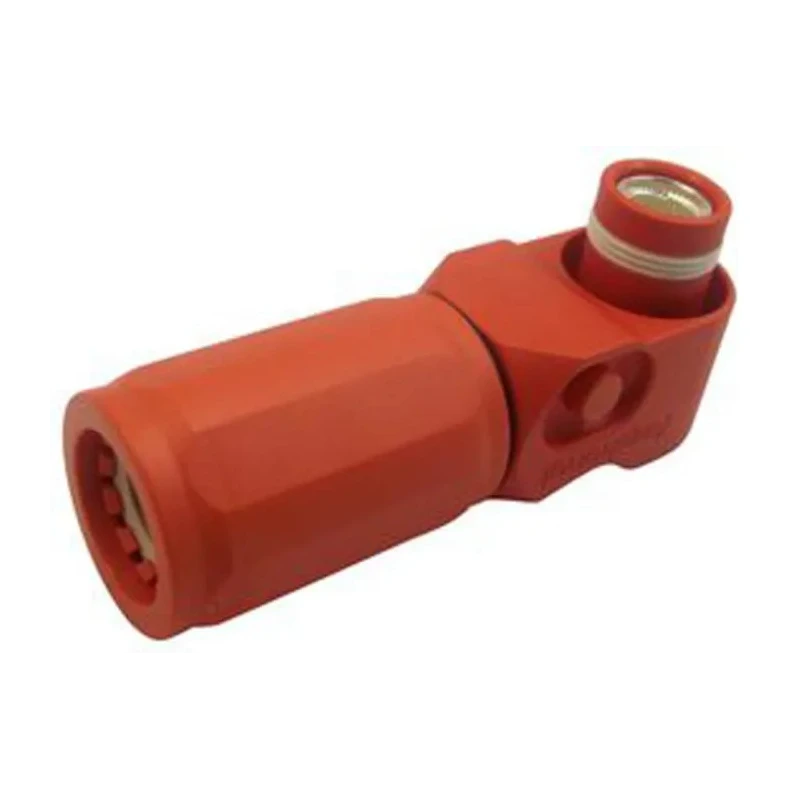

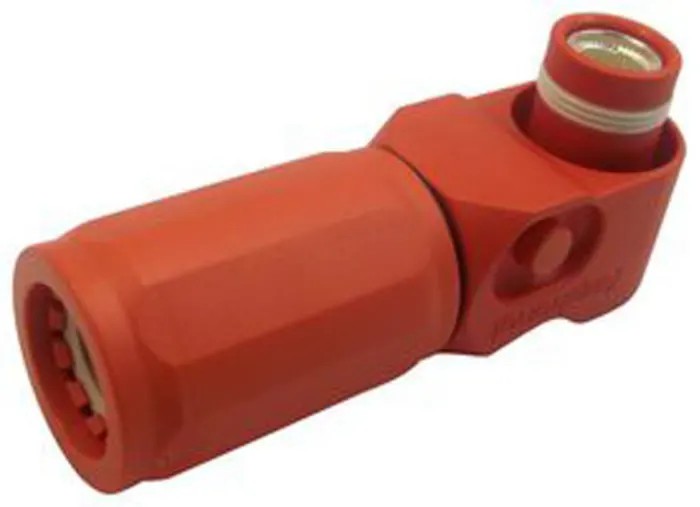

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 350A SLPPC85BSR0 / C10-730190-2800
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Right Angle |
| Current | 350A |
| Height | 88.5mm |
| Model | SLPPC85BSR0 / C10-730190-2800 |
| Depth | 40.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30.3mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 85mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Latch Type | Spring Locking |
Key Features
- The connector is part of the SURLOK PLUS series designed for efficient EV applications.
- It supports a continuous current rating of 350 amps at up to 1000 volts operating voltage.
- Constructed with high-quality copper alloy contacts and thermoplastic housing for durability.
- Features a 10.3mm pin diameter with spring locking and 360° rotation capability.
- Rated for IP67 ingress protection and UL 94-V0 flammability standards.
- Designed for crimp termination and right angle orientation to improve installation flexibility.
- Operates reliably between -40°C and 125°C temperature range.
- Keyed design minimizes risk of mismating, ideal for electric vehicles and heavy equipment.
Product Description
Amphenol Industrial SLPPC85BSR0 / C10-730190-2800 is a high-quality SURLOK PLUS series RADSOK EV Connector Male rated for 350A and 1000V, optimized for automotive electric vehicle applications and heavy equipment.
This compact and robust connector uses R4 Radsock technology to ensure a strong tensile connection with excellent conductivity. Its press-to-release quick lock provides convenient and secure mating to the SurLok 1-Position Receptacle.
The connector is constructed from durable copper alloy contacts within a thermoplastic housing, offering excellent resistance to environmental factors rated at IP67 ingress protection and meeting UL 94-V0 flammability standards.
Designed for crimp termination of 85mm² wire, it features a 10.3mm pin diameter and a spring locking latch type. The connector allows 360-degree rotation and has a keyed 90-degree orientation to prevent incorrect mating.
This connector operates reliably in temperatures ranging from -40°C to 125°C and is widely used in electric vehicles, rail mass transit, battery management systems, process control, and medical equipment.
The connector supports high electrical performance with 350A current capacity at 1000V. Its spring locking mechanism ensures secure connections resistant to vibration. Durable materials provide long service life in demanding industrial environments.
Rated for protection against dust and water ingress with IP67 certification. Compliant with international flammability standards UL 94-V0 for safety.
As part of the Amphenol Industrial Better World product range, this EV connector advances renewable energy solutions by offering reliable and sustainable connectivity for modern electric mobility and energy storage systems.
Explore the full Amphenol SurLok Plus EV Connector range for versatile, high-performance electrical connections suitable across industrial, automotive, and energy sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a continuous current rating of 350 amps.
It supports a maximum operating voltage of 1000 volts.
The connector features copper alloy contacts and a thermoplastic housing.
It is rated IP67 for ingress protection against dust and water.
This unit operates reliably between -40°C and 125°C.
It is designed for crimp termination of 85mm² wire.
The pin diameter is 10.3mm.
It features a spring locking latch type that ensures secure connections resistant to vibration.
It is designed with a right angle orientation for improved installation flexibility.
It is designed for use with the SurLok 1-Position Receptacle.
It complies with UL 94-V0 flammability standards.
This model is widely used in electric vehicles, rail mass transit, battery management systems, process control, and medical equipment.
