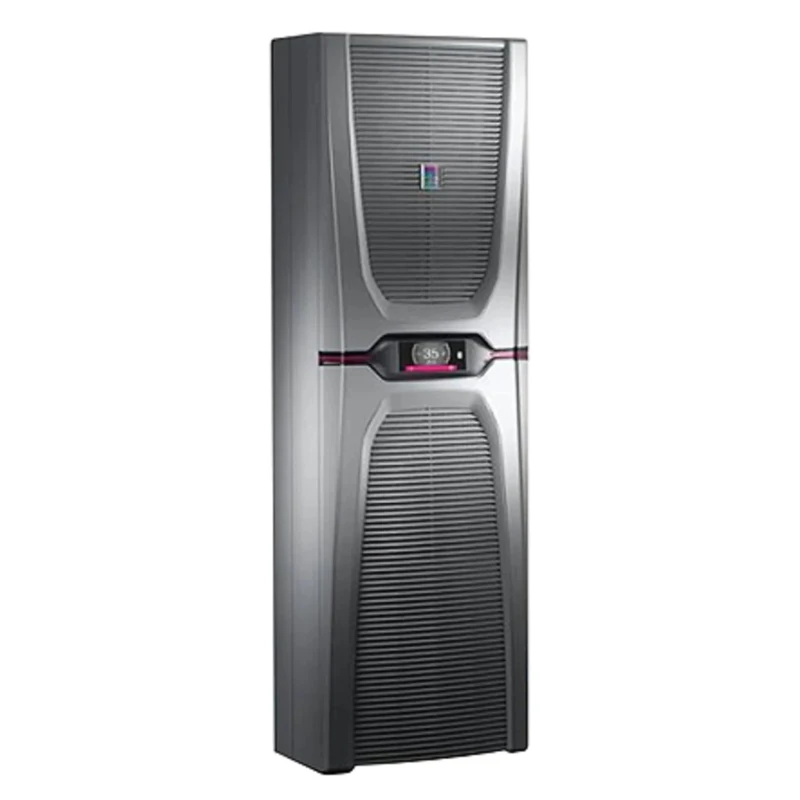

Rittal Enclosure Cooling Unit Blue e Series 2300 m³/h Air Flow 5800W 480V AC Wall-Mounted 1.6m 393mm 450mm 3189940
Specifications
| Country of Origin | Italy |
|---|---|
| Power Consumption | 2.2kW |
| Frequency | 60Hz |
| Brand | Rittal |
| Material | Sheet Steel |
| Operating Temperature | (environment): -20 °C...+60 °C |
| Storage Temperature | -40 °C...+70 °C |
| Height | 1.6m |
| Air Flow | 2300m³/h |
| Model | 3189940 |
| Depth | 393mm |
| IP Rating | IP55 |
| Noise Level | 74dBA |
| Gross Weight | 72.4kg |
| Width | 450mm |
| Cooling Capacity | 3.95kW |
| Mount Type | Wall |
| Certification | EAC |
| Series | Blue e |
| Input power | 2200W |
| Cooler Type | Air Conditioner |
| Refrigerant Type | R513a |
| Maximum Temperature Setting | 50°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 480V ac |
| Better World Claim | Saves Energy |
| Maximum Cooling Power | 5800W |
| Min Temperature Setting | 20°C |
| Type of installation | Wall-Mounted |
| Setpoint temperature setting range | +20 °C...+50 °C |
Key Features
- Equipped with a robust sheet steel body resistant to impact and corrosion.
- Designed for wall mounting to optimize floor space utilization.
- Features an intuitive touch display for easy and precise temperature control.
- Supports temperature settings from +20°C to +50°C for versatile use.
- Incorporates a refrigerant circuit inverter for regulated component temperature and extended service life.
- Operates with energy-saving hybrid technology, reducing fluctuations and prolonging enclosure component life.
- Includes nano-coated condenser and integral electric condensate evaporation for maintenance efficiency.
- Ideal for commercial buildings, control rooms, and enclosure temperature management.
Product Description
Rittal 3189940 Enclosure Cooling Unit from the Blue e Series offers industrial-grade cooling designed for electrical enclosures with a maximum cooling power of 5800W and an air flow rate of 2300 m³/h. Powered by 480V AC and consuming 2.2 kW input power, this unit is specifically engineered for wall-mounted installation, making it perfect for conserving floor space in industrial and commercial environments.
The enclosure cooling unit features a durable sheet steel body finished in RAL7035, providing resistance against impact and corrosion. The unit includes an intuitive touchscreen display that facilitates smooth user interaction and straightforward temperature adjustment within the configurable range of +20°C to +50°C, suited for diverse ambient conditions.
Advanced hybrid cooling technology integrates both a passive heat pipe and an active refrigerant circuit with inverter control. This combination achieves energy savings up to 75% by dynamically regulating compressor and fan speeds based on cooling demand, ensuring efficient operation and prolonging equipment life.
The cooling system employs R513a refrigerant, noted for its environmental performance, and complies with RoHS and EAC certifications. It is finished with a nano-coated condenser and integral electric condensate evaporation system to minimize maintenance needs and enhance reliability.
This unit is optimized for commercial buildings, control rooms, and electrical enclosure applications where precise temperature regulation and robust environmental protections are essential. It conforms to an IP55 ingress protection rating, safeguarding internal components against dust ingress and water jets.
Robust sheet steel construction ensures long-lasting durability. Wall-mount design maximizes available floor space. Energy-efficient hybrid cooling technology reduces operational costs. Advanced inverter refrigerant circuit regulates cooling as per requirement.
Easy configuration and monitoring via intuitive touch display. Nano-coated condenser and electric condensate evaporation enhance system maintenance. Certified RoHS and EAC compliant product manufactured in Italy. Supports a broad operating temperature range ensuring performance in diverse climates.
IP55 rated for protection against dust and water jets.
This Rittal Blue e Series cooling unit represents a high-performance solution for industrial and commercial enclosure cooling needs. Discover more cooling and electrical enclosure products in the Electronics & Electricals category at EnvMart.
Explore more products in our Cooling Units category.
