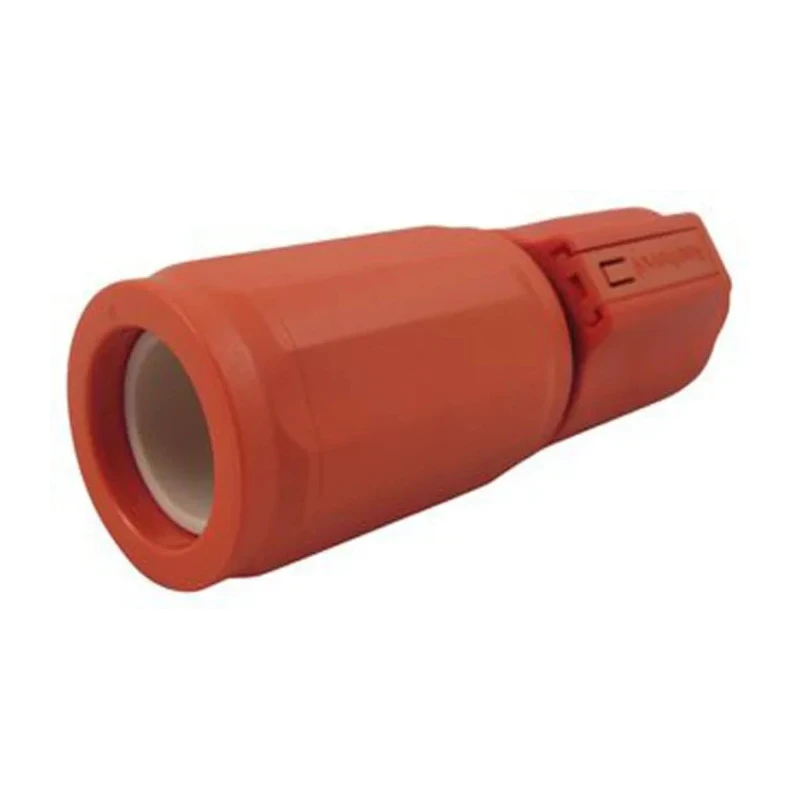

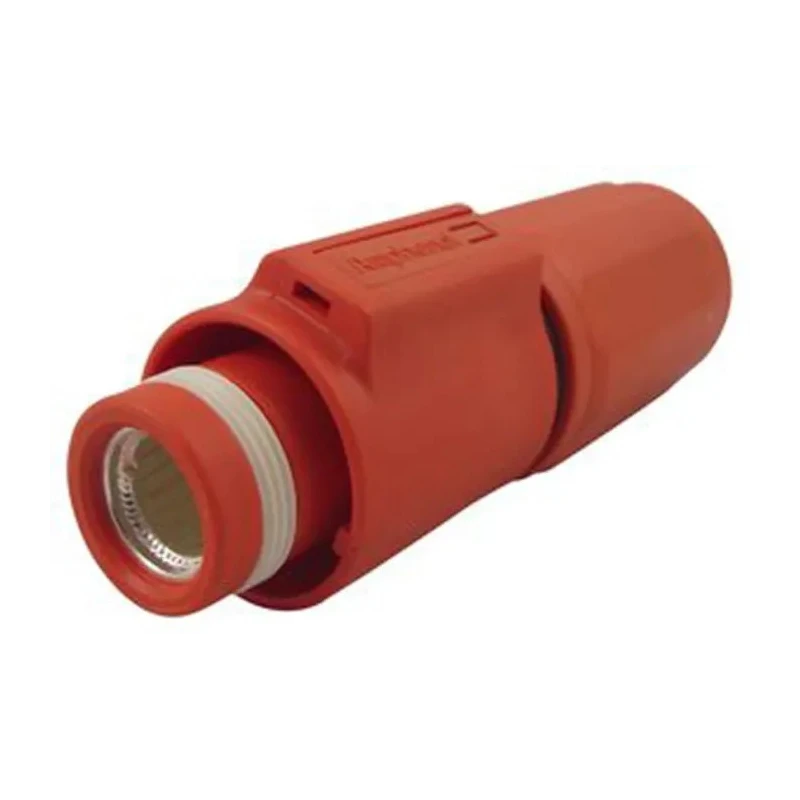

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 150A 1000V Crimp Termination SLPIPB35BSO1 / C10-731951-001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 150A |
| Height | 24.6mm |
| Model | SLPIPB35BSO1 / C10-731951-001 |
| Depth | 72.4mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 21.4mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
Key Features
- Supports 150A current with an operating voltage of 1000V.
- Features a single-row, one-contact RADSOK type male connector matched with a female contact.
- Crimp termination type compatible with 35mm² wire size.
- Built with thermoplastic housing and copper alloy contact for durability and conductivity.
- IP67 rated for environmental sealing and protection against dust and water ingress.
- Operates in a temperature range from -40°C to 125°C.
- Complies with UL 94-V0 flammability standard ensuring high safety.
- Connector incorporates 8mm pin diameter and straight orientation.
Product Description
Amphenol Industrial SLPIPB35BSO1 / C10-731951-001 is a SURLOK PLUS RADSOK EV Connector Male rated at 150A current and 1000V operating voltage. This connector is engineered for robust and reliable electrical connections in industrial, electric vehicle (EV/HEV), rail mass transit, medical, and battery management applications. It terminates to 35mm² wire using a crimp termination method with a copper alloy female contact in a thermoplastic housing.
Designed for harsh environments, this connector is IP67 rated, providing complete protection against dust ingress and water immersion up to 1 meter. It features a straight orientation with an 8mm pin diameter that enables secure and efficient connectivity. The plug includes R4 Radsock technology, ensuring a high tensile strength connection with a highly conductive surface area.
The SURLOK PLUS series plug offers quick mating with a press-to-release mechanism and rotates 360°, enhancing usability in confined spaces. It is keyed with a 180° keying system to eliminate mismating errors. The housing material complies with UL 94-V0 flammability standards, enhancing safety against fire risks.
This product is part of Amphenol's Better World initiative, recognized as a renewable energy solution contributing to sustainability goals. Its orange color coding aids in easy identification during installations. The connector's compact and field-installable design simplifies maintenance and replacement procedures.
Supports 150A current and 1000V operating voltage. Single-row, one-contact RADSOK male connector. Crimp termination compatible with 35mm² wire. Durable thermoplastic housing and copper alloy contacts. Environmental protection rating IP67.
Operating temperature range from -40°C to 125°C. Complies with UL 94-V0 flammability rating. Includes press-to-release quick locking and 360° rotation. Keyed to prevent mismating (180 key). Used in EV, rail transit, medical, and battery management systems.
For those seeking reliable, high-performance EV connectors, Amphenol Industrial SURLOK PLUS RADSOK series delivers exceptional durability, environmental sealing, and ease of installation. Explore the full Amphenol Industrial Connector range on EnvMart for integrated power and signal connectivity solutions to meet demanding industrial applications.
