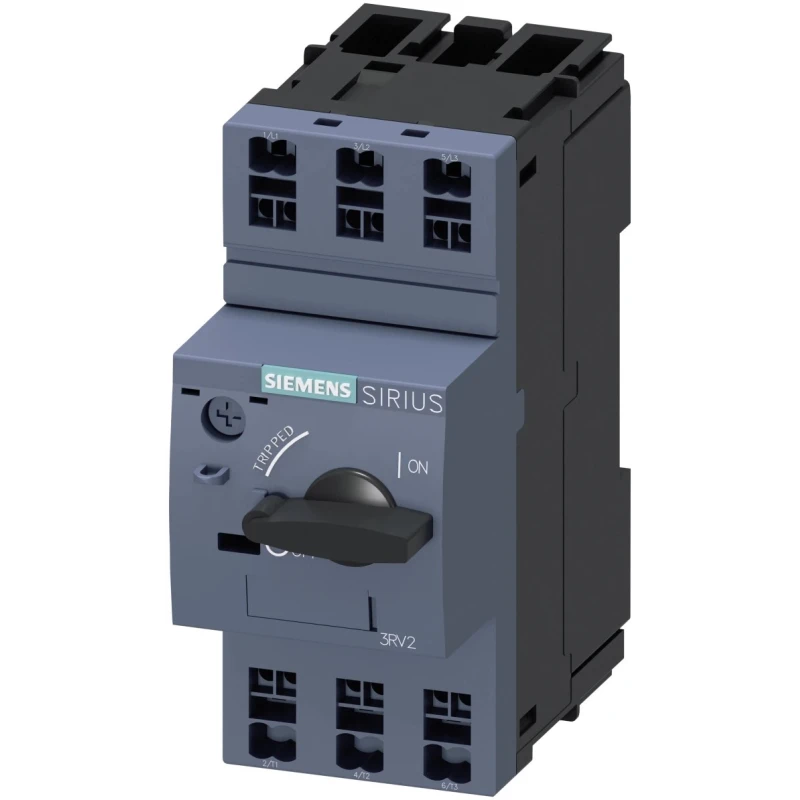

Siemens Motor Protection Circuit Breaker 110mA, 160mA Current Rating, Magnetic Sensing, 690V Supply Voltage 3RV2011-0AA20

Siemens 3RV2011-0AA20 Motor Protection Circuit Breaker is a high-quality protective device designed specifically for motor safety in industrial and commercial environments. This motor circuit breaker from the 3RV2 series provides reliable protection against overload, short circuits, and phase failure with a magnetic sensing type.

With a current rating of 110mA and 160mA, it operates efficiently at a supply voltage of 690V. The breaker supports three poles, making it suitable for three-phase motor configurations. Its compact dimensions of 45mm length, 96.9mm width, and 106mm depth ensure compatibility with various control panels.

The unit works effectively in operating temperature ranges from -20°C to 60°C and has an IP20 rating for protection against solid objects and accidental contact. The motor protection circuit breaker features a low power loss of 6 to 7 Watts, which contributes to energy savings in continuous operation.

Designed to endure harsh electrical conditions, the breaker has an impulse voltage resistance rating of 6 kV, ensuring robustness and longer service life. Installation is made convenient with screw and spring clamp connection options.

Rated for currents of 110mA and 160mA to protect motors efficiently. Compact design with overall dimensions of 45mm length, 96.9mm width, and 106mm depth. Operates reliably in temperatures ranging from -20°C to 60°C. Features IP20 rating ensuring basic protection against contact and ingress of solid objects.

Equipped with 3 poles suitable for three-phase motor protection. Complies with international standards including CE, UL, CSA, ATEX, and RoHS. Low power loss of 6 to 7 Watts ensures energy efficiency during operation. Impulse voltage resistance of 6 kV for enhanced durability.

Designed for screw and spring clamp connections facilitating secure installation. Manufactured in Germany with extended product life and low carbon manufacturing claims.

This Motor Protection Circuit Breaker is suitable for use in industrial automation settings, electrical control panels, manufacturing facilities, HVAC systems, and machinery protection. Its high standard approvals such as CE, UL, CSA, and ATEX make it compliant with global safety and quality requirements.

Choose Siemens 3RV2011-0AA20 for dependable motor protection solutions that combine safety, energy efficiency, and durability. Discover more electronic and electrical circuit protection products by browsing our extensive EnvMart catalog.
