RS PRO IPM245F Power Clamp Meter 1 kA AC-DC, 1000 V AC/DC, True RMS, CAT IV CAT III Safety IPM245F

Free Delivery in India | Lowest Global Shipping Charges

RS PRO IPM245F Power Clamp Meter 1 kA AC-DC, 1000 V AC/DC, True RMS, CAT IV CAT III Safety IPM245F

Name: RS PRO IPM245F Power Clamp Meter 1 kA AC-DC, 1000 V AC/DC, True RMS, CAT IV CAT III Safety IPM245F
Brand: RS PRO
SKU: 194590
Price: 692.57 USD
Availability: InStock



Category Clamp Meters Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Display Type	LCD Backlight
Brand	RS PRO
Temperature Resolution	0.1°C
Battery Life	100h
Battery type	Alkaline
Height	257mm
Length	87.5mm
Model	IPM245F
Gross Weight	470g
Width	50.5mm
Maximum Operating Temperature	50°C
AC Voltage Resolution	100mV ac
Minimum Operating Temperature	0°C
DC Voltage Resolution	100 mV dc
Resistance Measurement Accuracy	±1 % + 3 Digits
Temperature Measurement Accuracy	±1 % + 1 °C
AC Current Accuracy	±1.5 % rdg + 5 Digits
Resistance Resolution	100mΩ
AC Current Resolution	100mA
Maximum Jaw Opening	27mm
Standards/Approvals	IEC 610101, RoHS Certificate of
Maximum Temperature Measurement	1000°C
Functions Measured	Power Factor, DC Voltage, Frequency, DC Current, AC Current, Total Harmonic Distortion, Continuity, Temperature, Harmonics, AC Voltage, Diode, Power, Resistance, Capacitance
Maximum Resistance Measurement	100kΩ
Maximum DC Voltage Measurement	1000V dc
Maximum DC Current Measurement	1kA
Maximum AC Voltage Measurement	1000V ac
Safety Category Level	CAT IV, CAT III
Safety Category Voltage	600, 1V
Maximum Conductor Size	42mm
Clamp Meter Type	Power Clamp Meter
IEC 61010-1	CAT IV 600 V, CAT III 1000 V

Key Features

Measures AC/DC current up to 1000 A with True RMS accuracy.
Capable of AC and DC voltage measurement up to 1000 V.
Equipped with a non-contact VoltSense voltage detector for safe operation.
Large backlit LCD display with analogue bar graph and torch lighting.
Functions include power factor, frequency, harmonics, capacitance, diode testing, and temperature measurement up to 1000°C.
Auto AC/DC selection and auto power off for convenience and power saving.
Includes continuity buzzer, inrush current detection, peak hold and min/max hold features.
Powered by alkaline batteries providing up to 100 hours of operation.

Product Description

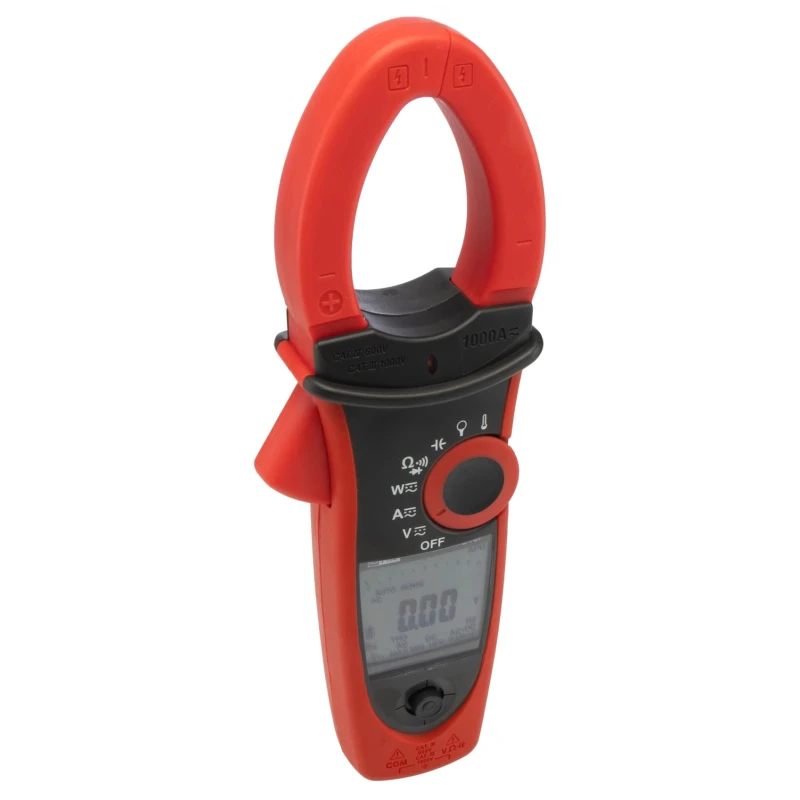

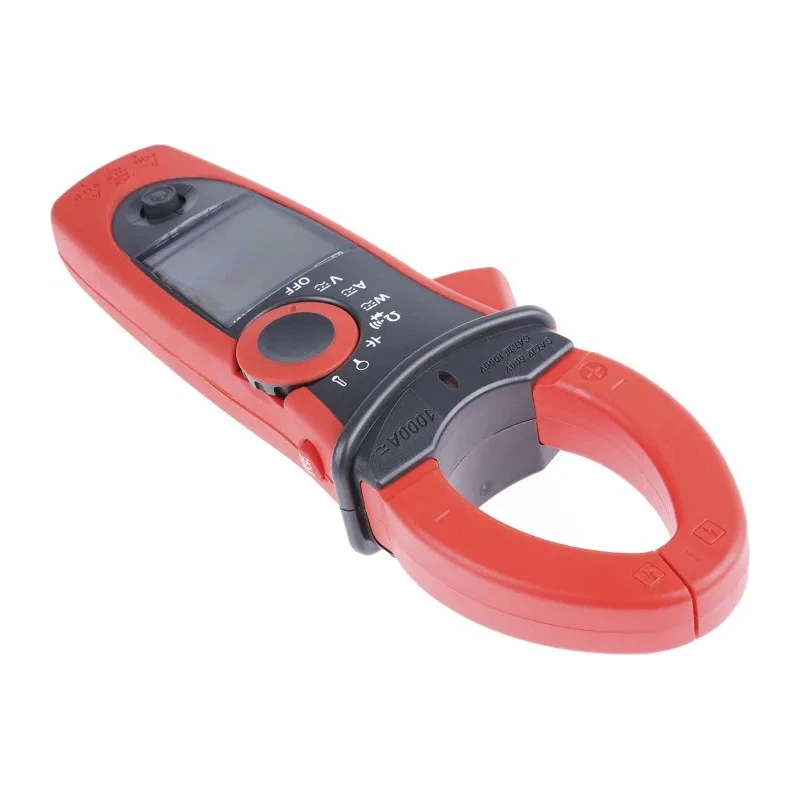

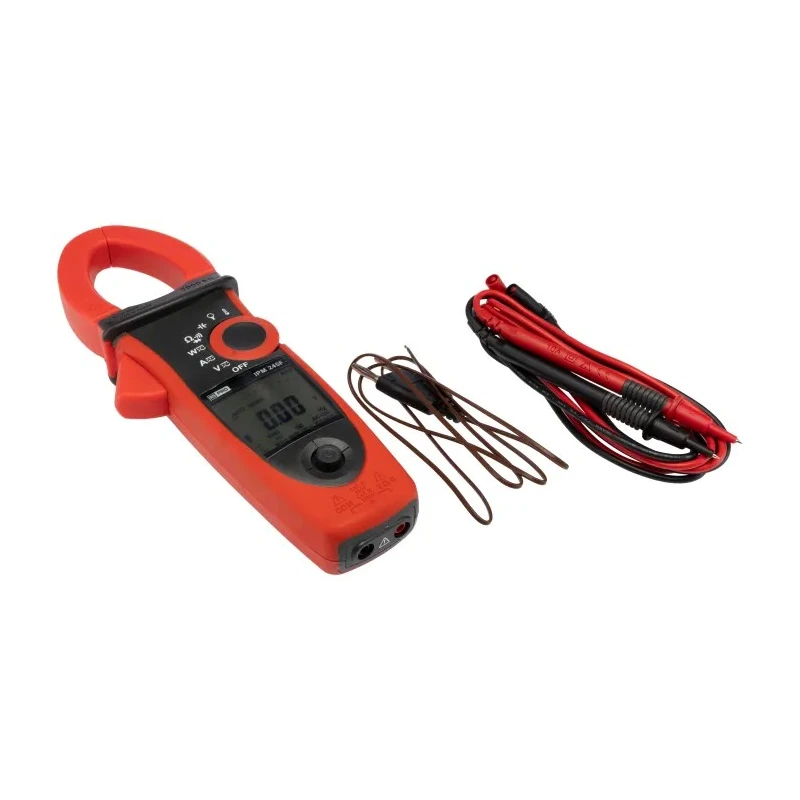

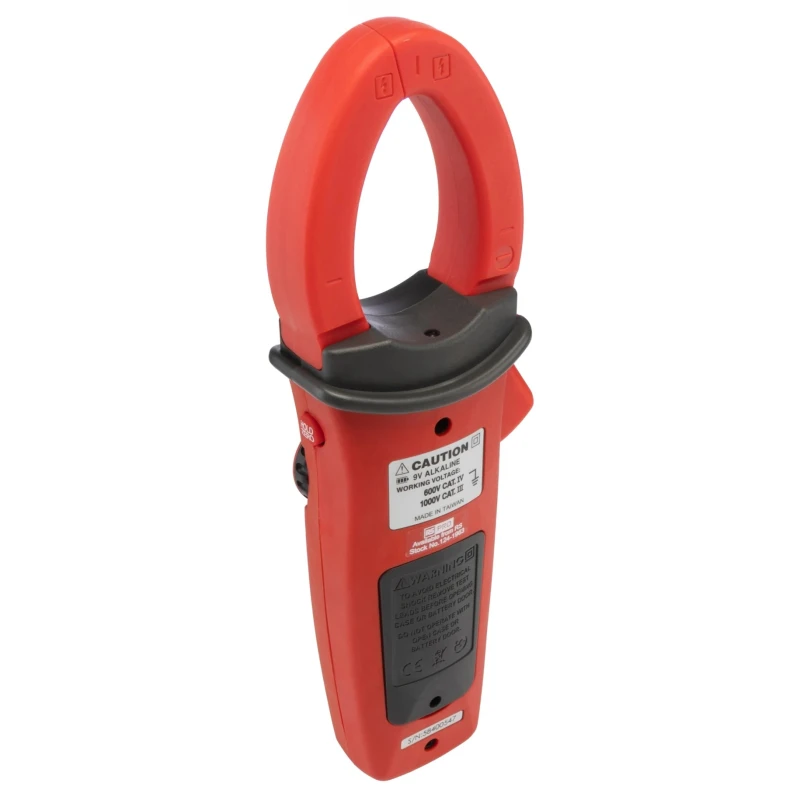

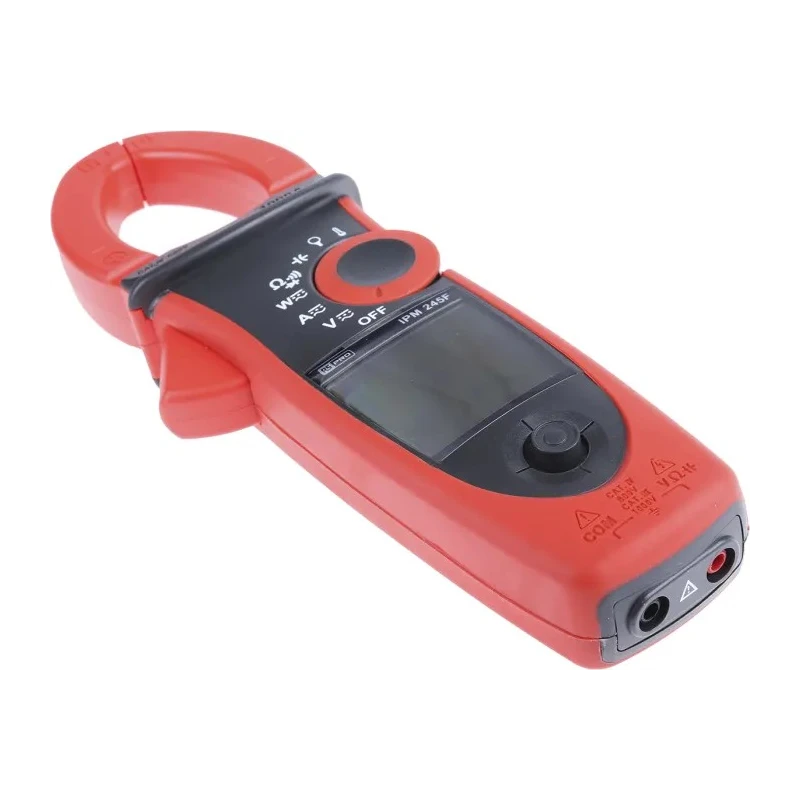

RS PRO IPM245F Power Clamp Meter is a battery-powered, high-accuracy measuring instrument designed for industrial electrical testing and power analysis applications. Featuring a 10000 count digital display and True RMS technology, it accurately measures AC and DC current up to 1000 A and voltage up to 1000 V AC/DC. The clamp meter supports a wide range of functions including power factor measurement, frequency counting, harmonics analysis (up to 25), capacitance, and temperature measurement up to 1000°C with high precision.

Equipped with a non-contact VoltSense voltage detector for added safety, it also provides analogue bar graph display and torch lighting to enhance visibility in low-light conditions. The auto AC/DC selection, inrush current capability, peak and min/max hold features make it suitable for complex electrical diagnostics in industrial environments.

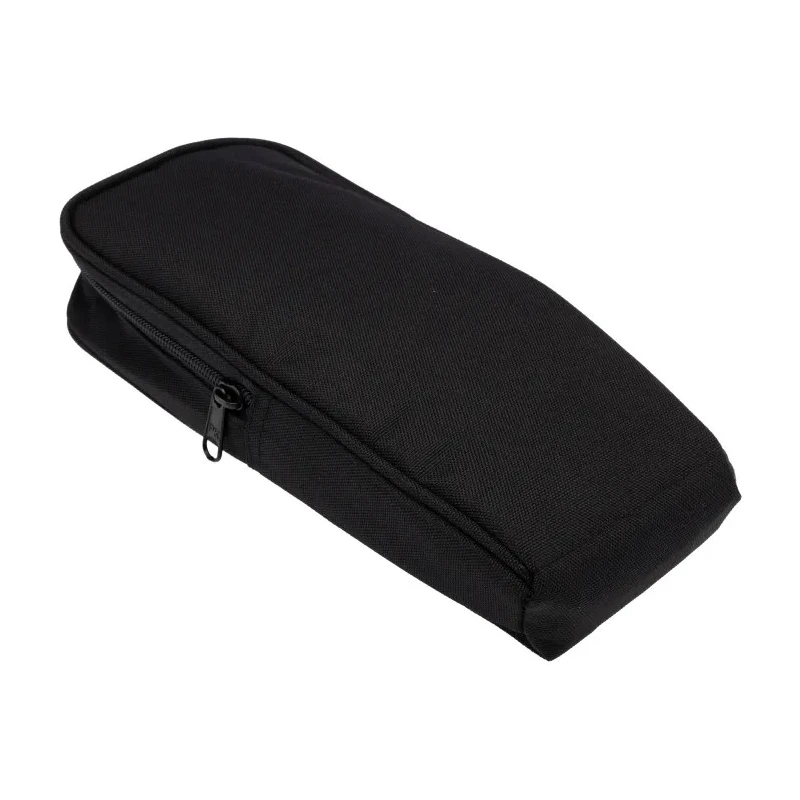

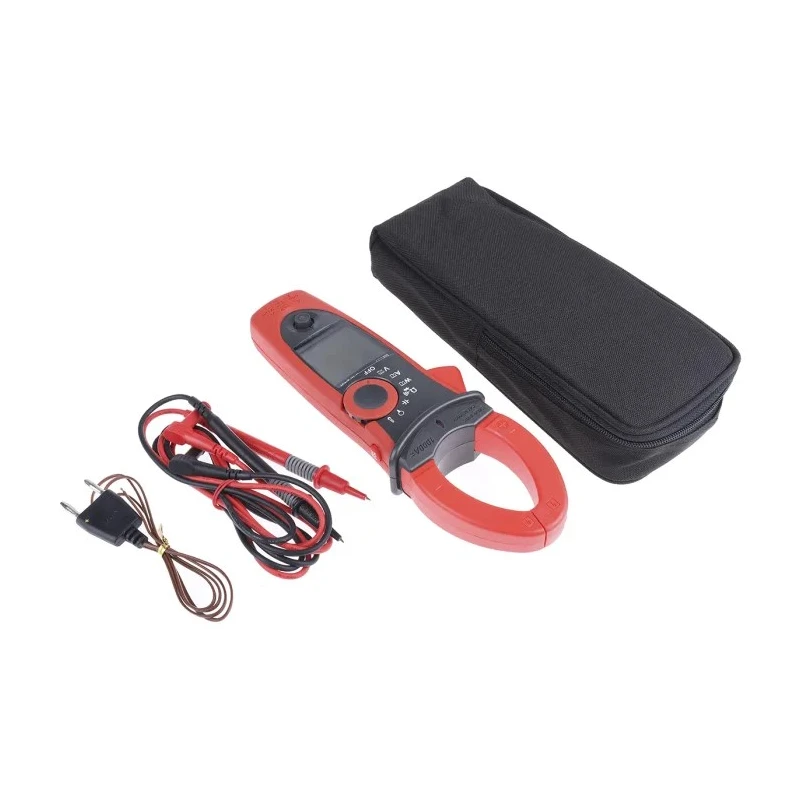

Its ergonomic design includes a 27 mm jaw opening and supports conductors up to 42 mm in diameter. The device meets IEC 61010-1 standards and bears CAT IV 600 V and CAT III 1000 V safety ratings, ensuring safe operation in high-voltage environments. With a long battery life of approximately 100 hours and a protective carry case, this clamp meter is ideal for electrical engineers, HVAC technicians, and maintenance professionals.

Measures AC/DC current and voltage with True RMS accuracy for reliable readings. Includes non-contact voltage detection for enhanced user safety. Wide measurement functions covering harmonics, power factor, capacitance, and temperature.

Robust construction compliant with IEC 61010-1 safety standards. Easy-to-read backlit LCD with analogue bar graph and torch light. Auto AC/DC selection and inrush current measurement for versatile electrical testing. Compact, lightweight design with convenient carry case for portability.

Suitable for industrial, commercial, and laboratory electrical measurement applications. Explore more high-quality Clamp Meters and electrical testing equipment from RS PRO and other leading brands in the measuring and testing instruments category at EnvMart.
