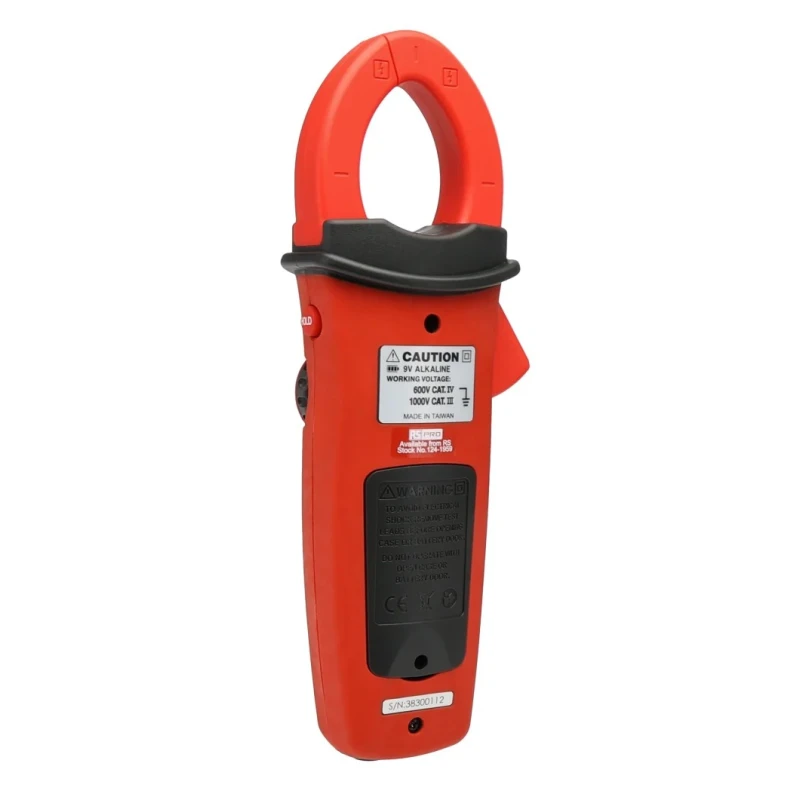

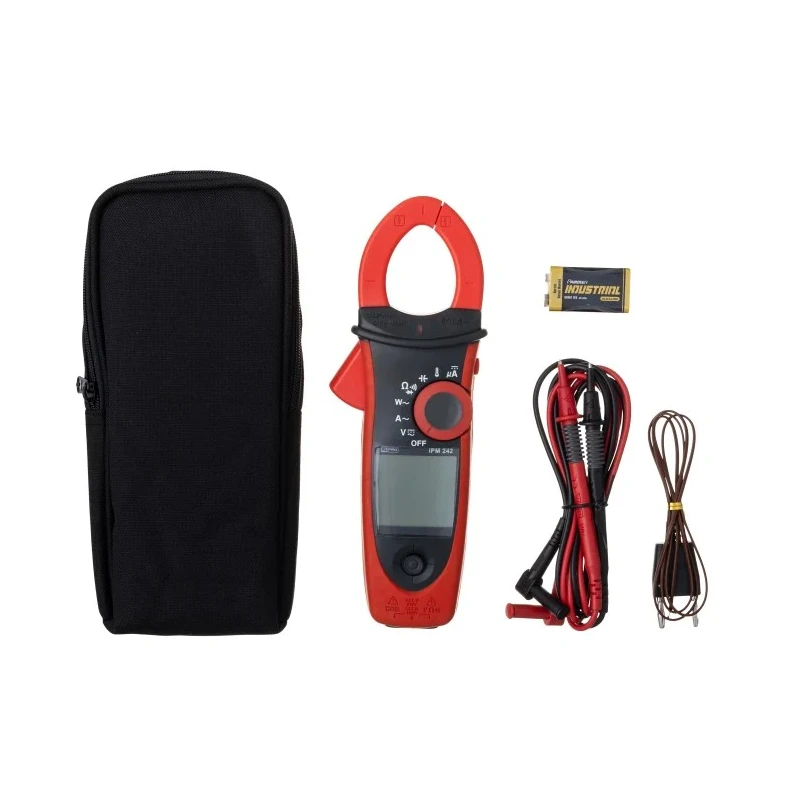

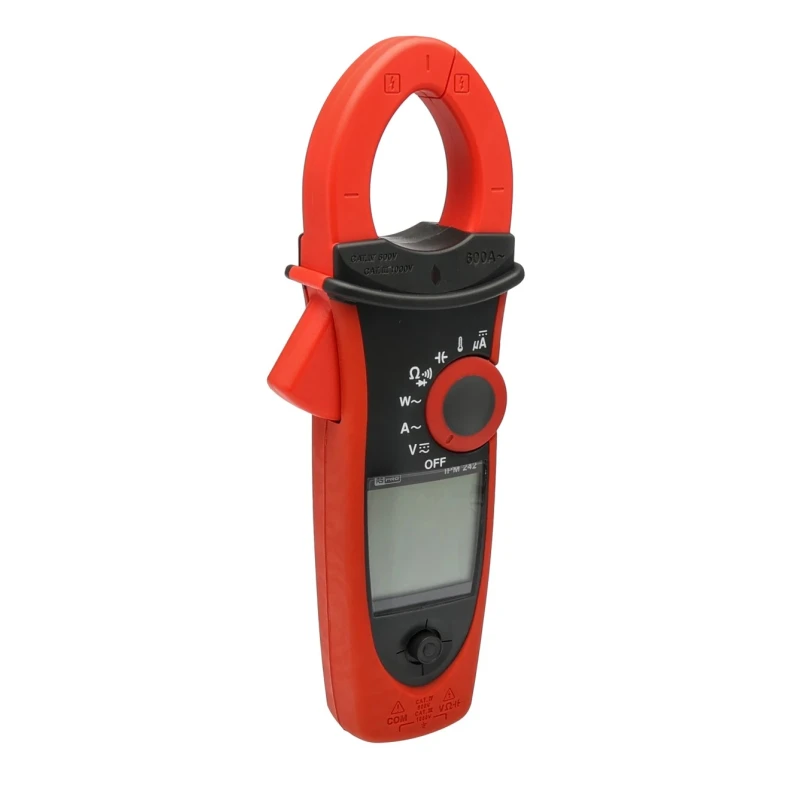

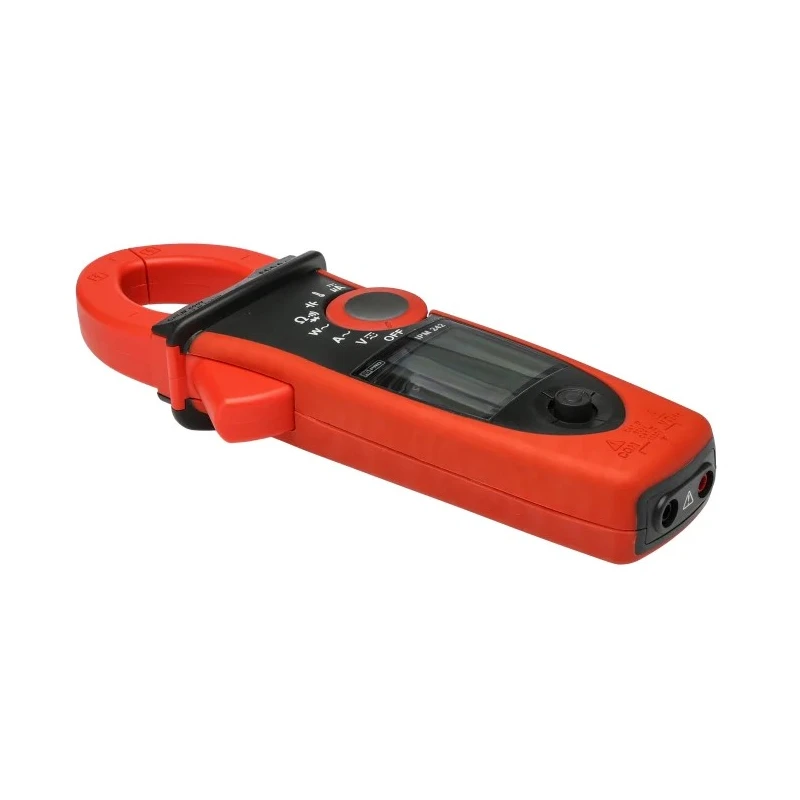

RS PRO AC/DC Clamp Meter with Non-Contact Voltage Detector, 1 mA DC, 600 A AC, 1000 V DC CAT III CAT IV 124-1959

Free Delivery in India | Lowest Global Shipping Charges

RS PRO AC/DC Clamp Meter with Non-Contact Voltage Detector, 1 mA DC, 600 A AC, 1000 V DC CAT III CAT IV 124-1959

Name: RS PRO AC/DC Clamp Meter with Non-Contact Voltage Detector, 1 mA DC, 600 A AC, 1000 V DC CAT III CAT IV 124-1959
Brand: RS PRO
SKU: 194586
Price: 628.15 USD
Availability: InStock



Category Clamp Meters Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Display Type	Digital
Brand	RS PRO
Battery Life	50h
Battery type	9V Alkaline
Height	242mm
Length	87.5mm
Model	124-1959
Gross Weight	435g
Width	50.5mm
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
DC Current Accuracy	±1.7 % rdg + 2 Digits
AC Current Accuracy	±1.5 % rdg + 5 Digits
Standards/Approvals	EN 613261, EN50419:2006, IEC 610101
Maximum Temperature Measurement	1000°C
Functions Measured	Resistance, Total Harmonic Distortion, Power Factor, Power, Current, DC, Individual Harmonics, Temperature, Capacitance, Diode, Voltage, Frequency, Inrush Current, Continuity
Maximum Resistance Measurement	99.99kΩ
Maximum AC Current Measurement	600A ac
Maximum DC Voltage Measurement	1000V dc
Maximum DC Current Measurement	1mA dc
Maximum AC Voltage Measurement	999.99V ac
Safety Category Level	CAT III, CAT IV
Safety Category Voltage	1000V dc
Maximum Conductor Size	42mm
Clamp Meter Type	AC/DC Clamp Meter
Standards/ApprovalsEN 613261, EN50419	2006, IEC 610101
EN 613261, EN50419	2006, IEC 610101
• Safety Standard	IEC 61010-1 CAT IV 600 V / CAT. III 1000 V

Key Features

Includes True RMS measurements for accurate AC and AC+DC readings.
Equipped with VoltSense for non-contact voltage detection.
Digital display with backlight and analogue bar graph for easy readability.
Measures resistance, capacitance, power factor, frequency, temperature, and inrush current.
Compact design with a clamp maximum conductor size of 42 mm for versatile applications.

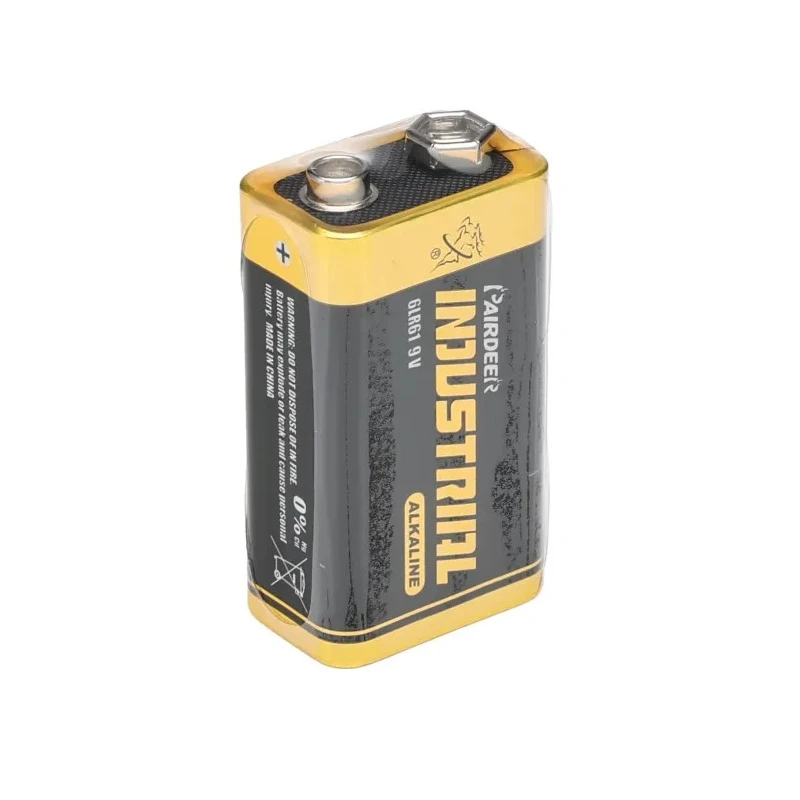

Operates on a 9V alkaline battery with approximately 50 hours battery life.
Suitable for industrial, electrical maintenance, HVAC, and laboratory testing.

Product Description

RS PRO 124-1959 AC/DC Clamp Meter is a versatile measuring instrument designed for electrical professionals requiring precise current, voltage, and resistance measurements with high safety standards. It supports maximum DC current measurement of 1 mA and AC current measurement up to 600 A, with voltage measurement ranges of 999.99 V AC and 1000 V DC. This clamp meter offers True RMS readings to ensure accuracy in varying electrical environments.

Featuring a non-contact voltage detector with VoltSense technology, the clamp meter enhances user safety by alerting to live conductors without direct contact. The digital display includes a high-contrast backlit screen and an analogue bar graph for quick diagnostics during field work or laboratory testing. Its ergonomic design supports clamp diameters up to 42 mm, making it convenient for various conductor sizes.

This clamp meter measures a wide range of electrical parameters including resistance up to 99.99 kΩ, capacitance, frequency, power factor, total harmonic distortion, temperature up to 1000°C, and inrush current. The device boasts AC and DC voltage and current accuracy suitable for demanding industrial maintenance, construction, HVAC, and manufacturing applications.

True RMS AC and AC+DC measurement capability for accurate readings. VoltSense non-contact voltage measurement enhances electrical safety. Auto torch-light feature facilitates easy viewing in low-light conditions. Multi-function including power, power factor, harmonic measurements, and temperature.

Equipped with auto AC-DC detection and auto resistance/continuity/diode functions.

The RS PRO 124-1959 clamp meter is battery powered by a 9V alkaline cell, providing approximately 50 hours of operation, making it ideal for field use where portability and reliability matter. Safety compliance includes CAT III and CAT IV ratings, suitable for use with voltages up to 1000 V DC, meeting industry standards EN 61326-1, EN 50419:2006, and IEC 61010-1.

This clamp meter is ideal for professionals in industrial, electrical maintenance, HVAC, manufacturing, and laboratory environments requiring a comprehensive multiparameter electrical measurement tool. RS PRO products are recognized for durable construction and precise performance, backed by technical support and documentation ensuring user confidence.

Explore RS PRO Clamp Meters and related electrical measuring instruments in the EnvMart catalog for reliable performance and technical accuracy in your professional applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum AC current measurement for this model is 600 A.

It can measure AC voltage up to 999.99 V and DC voltage up to 1000 V.

The AC current accuracy is ±1.5 % of reading plus 5 digits.

The non-contact voltage detection feature, known as VoltSense, alerts users to live conductors without the need for direct contact, enhancing safety during measurements.

This clamp meter can measure resistance, voltage, current (AC and DC), capacitance, frequency, power factor, temperature, inrush current, and total harmonic distortion.

The maximum resistance measurement capability is 99.99 kΩ.

The dimensions are 242 mm in height, 87.5 mm in length, and 50.5 mm in width.

It operates on a 9V alkaline battery with an approximate battery life of 50 hours.

The maximum conductor size that this clamp meter can accommodate is 42 mm.

It has safety category ratings of CAT III and CAT IV, suitable for use with voltages up to 1000 V DC.
