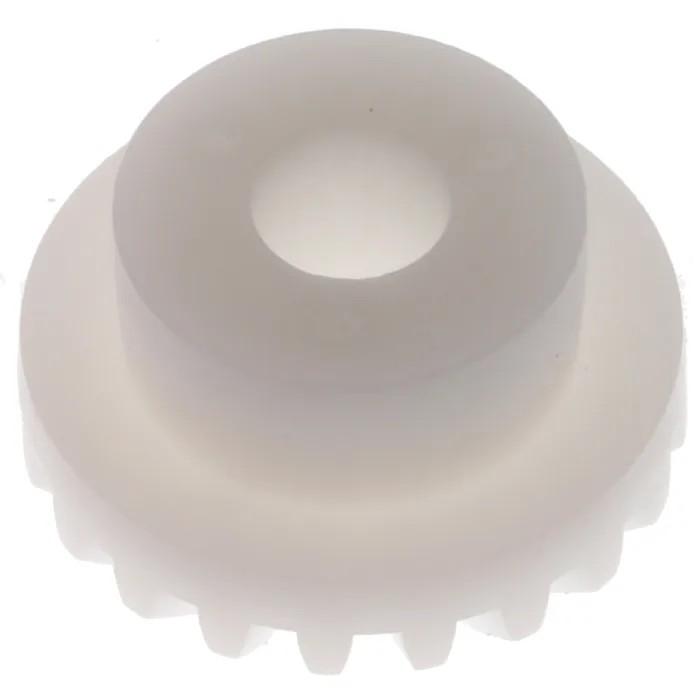

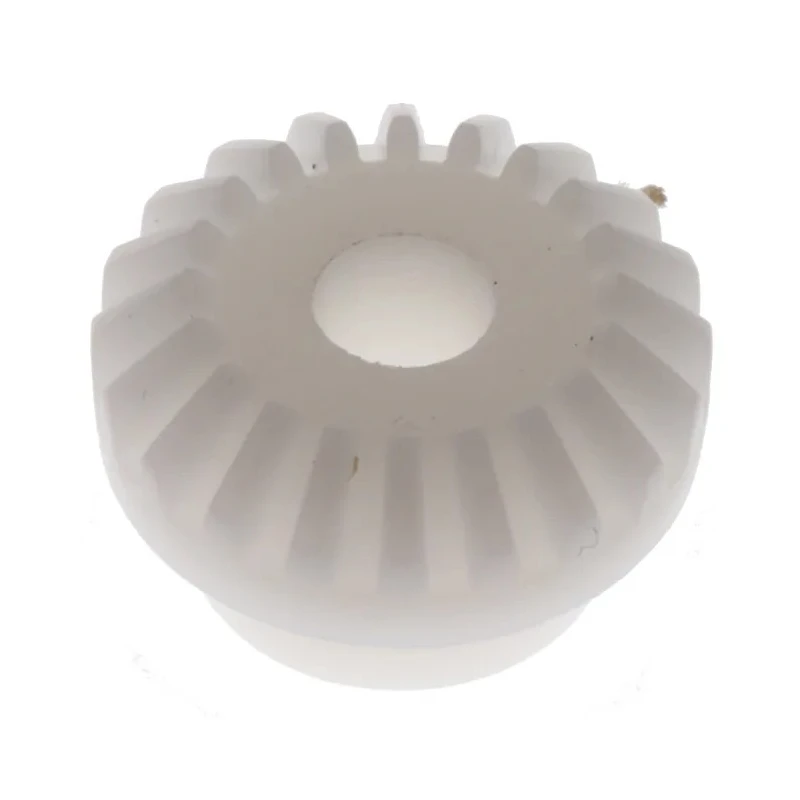

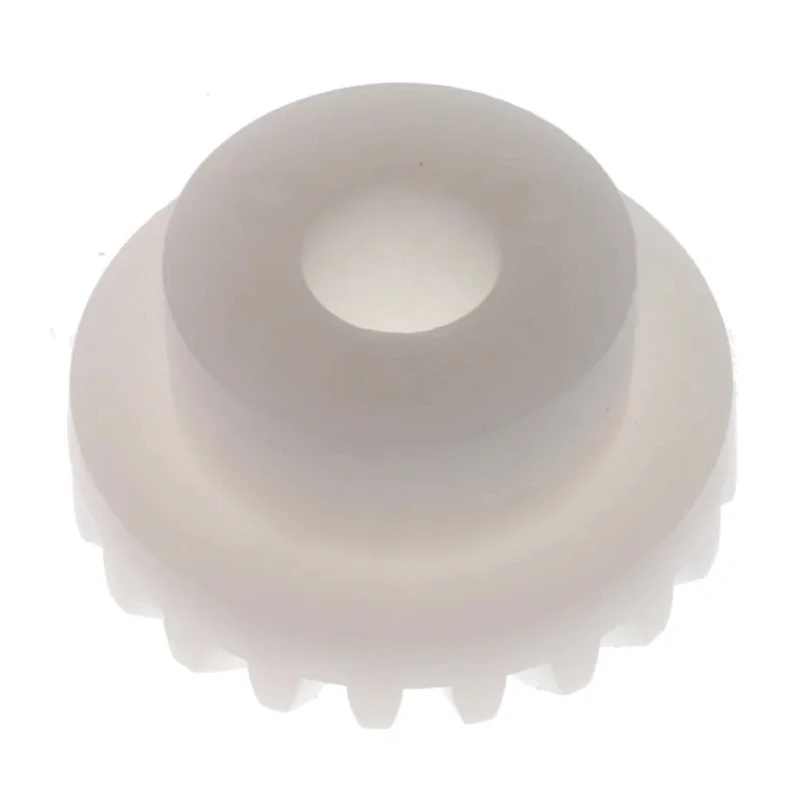

RS PRO Polyoxymethylene Mitre Gear, 5mm Bore, 20 Teeth, 0.8 Module 521-6042
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Polyoxymethylene |
| Model | 521-6042 |
| Gear Type | Mitre |
| Number of Teeth | 20 |
| Bore Diameter | 5mm |
| Gear ratio | 1:1 |
| Standards/Approvals | RoHS |
| Pitch Diameter | 0.8mm |
| Hub Diameter | 12mm |
| Module | 0.8 |
| Pressure Angle | 20° |
| Gear Ratio1 | 1 |
| Injection moulded acetal co-polymer mitre gears giving a gear ratio of 1 | 1 |
Key Features
- The gear has a bore diameter of 5mm for robust shaft fitting.
- Manufactured from durable polyoxymethylene material for high tensile strength.
- Features 20 teeth with a 0.8 module for accurate meshing.
- Pitch diameter measures 0.8mm with a hub diameter of 12mm.
- Designed with a pressure angle of 20 degrees ensuring efficient power transfer.
- Complies with RoHS standards guaranteeing environmental safety.
- Exhibits hardness Rockwell R 110-120 for durable performance.
- Suitable for industrial, mechanical, and fluid power applications.
Product Description
RS PRO 521-6042 Polyoxymethylene Mitre Gear is a high-quality mechanical power transmission component featuring a 5mm bore diameter and 20 teeth with a 0.8 module. Constructed from injection moulded acetal co-polymer (Delrin), this mitre gear offers excellent tensile strength of 94 N/mm² and high hardness measured at Rockwell R 110-120, ensuring durability in demanding industrial environments.
The gear exhibits a module of 0.8 and a pitch diameter of 0.8mm with a hub diameter of 12mm. It features a pressure angle of 20°, optimized for efficient load distribution and smooth meshing in mechanical systems that require a 1:1 gear ratio.
This mitre gear is compliant with RoHS standards, aligning with environmental regulations for safe use in various applications including mechanical machinery, fluid power systems, and industrial power transmissions. Its precise molding process ensures dimensional accuracy and consistent performance across batches.
Typical applications include Mechanical Power Transmission setups in manufacturing, automation, and other industrial sectors requiring reliable torque transfer between shafts set at 90 degrees. The polyoxymethylene material ensures low friction and wear resistance, extending the gear’s service life.
Bore diameter ensures secure shaft mounting and alignment. Durable polyoxymethylene material provides high strength and stiffness. Precisely 20 teeth allow for accurate rotational transmission. Module and pitch diameter conform to standard specifications for compatibility.
Pressure angle provides optimized load handling with minimal backlash. RoHS compliance guarantees adherence to environmental standards. High hardness rating supports wear resistance in heavy usage. Injection moulded for consistency and reliability in manufacturing.
Suitable for industrial and mechanical applications requiring 90-degree gear transmission. Ensures a precise 1:1 gear ratio for synchronized rotational speeds. Explore EnvMart's range of RS PRO mechanical transmission components for robust and efficient gear solutions tailored to industrial, construction, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this mitre gear is 5mm, ensuring a robust shaft fitting.
This model features 20 teeth, allowing for accurate meshing in mechanical systems.
The gear has a module size of 0.8, which conforms to standard specifications for compatibility.
The pressure angle is 20°, optimized for efficient load distribution and smooth meshing.
It is constructed from polyoxymethylene, which provides high tensile strength and durability.
The pitch diameter measures 0.8mm, which is essential for proper gear engagement.
The hub diameter of this mitre gear is 12mm, which aids in secure mounting.
This gear provides a 1:1 gear ratio, ensuring synchronized rotational speeds between connected shafts.
Yes, it is compliant with RoHS standards, ensuring adherence to environmental safety regulations.
It is suitable for mechanical power transmission setups in manufacturing, automation, and fluid power systems.
The gear exhibits a hardness rating of Rockwell R 110-120, supporting wear resistance in heavy usage.
The country of origin for this gear is India.
