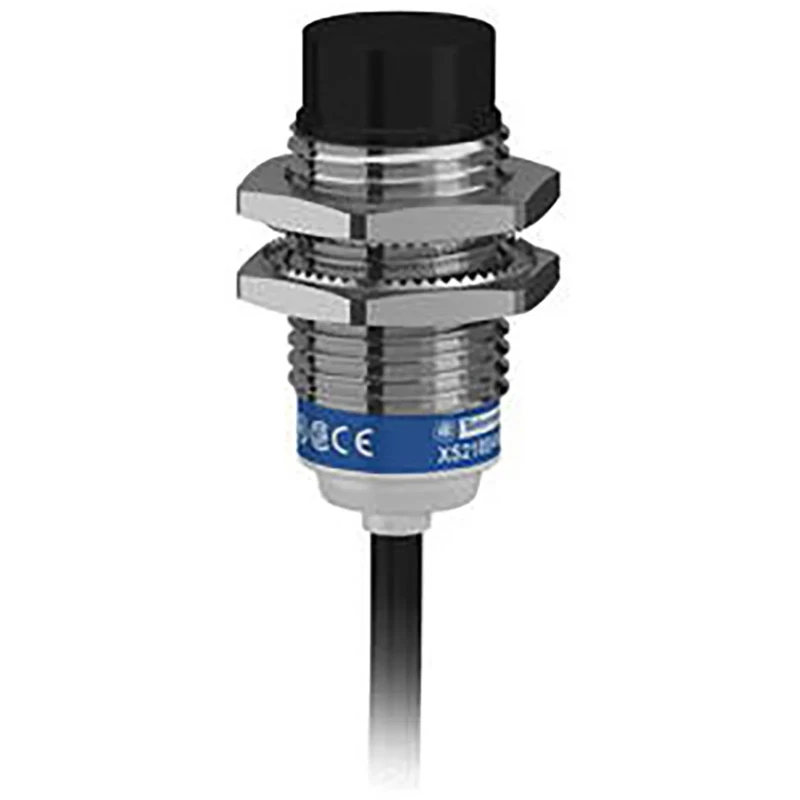

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M18 x 1 NPN 24 V dc 200mA XS218B4NAL2

Telemecanique Sensors XS218B4NAL2 is a high-performance threaded barrel Inductive Proximity Sensor with an M18 x 1 size, delivering reliable metal detection in industrial automation applications. It operates at 24 V dc with a maximum switching current of 200mA and a detection range of 16 mm, suited for mobile equipment and light hoisting systems.

This sensor incorporates a nickel plated brass housing that ensures robustness and longevity. Its non-flush mounting and unshielded design facilitate versatile installation options in challenging environments. The sensor body measures 41 mm in length, 24 mm in width, and 24 mm in depth.

With operational temperature range from -25°C to 70°C, it withstands a broad spectrum of temperature conditions, and its IP65, IP67, and IP69K protection ratings enable resistance to dust, water, and high-pressure cleaning, making it ideal for food, beverage, and manufacturing industries.

The NPN output and cable type terminals offer straightforward electrical connections. The sensor’s maximum switching frequency of 1 kHz supports fast process control and detection applications.

This model complies with multiple international safety and quality standards including CE, CSA, E2, and UL, underscoring its suitability for industrial use where reliability is paramount.

Common applications cover robotics, machine tools, packaging, materials handling, and other metal detection tasks in automated systems. The sensor is unaffected by oil, dirt, or surface finishes and operates effectively in high vibration and shock environments.

This sensor features a nickel plated brass body with an M18 x 1 threaded barrel design. It supports non-flush mounting and is unshielded for higher flexibility. Operating temperature ranges from -25°C to 70°C making it suitable for harsh environments.

Highly durable with IP65, IP67, and IP69K ingress protection ratings for dust and water resistance. The sensor uses NPN output type and supports cable terminal type connections. It has a maximum switching frequency of 1 kHz providing fast response.

Compliant with CE, CSA, E2, and UL standards ensuring safety and quality. Ideal for metal detection applications in automation, robotics, packaging, and materials handling. Explore the full range of sensors at EnvMart to find the perfect solution for your industrial sensing needs.
