SMC Aluminium Alloy Double Acting Pneumatic Cylinder 100 mm Stroke Clevis Mount ISO 6432 CD85

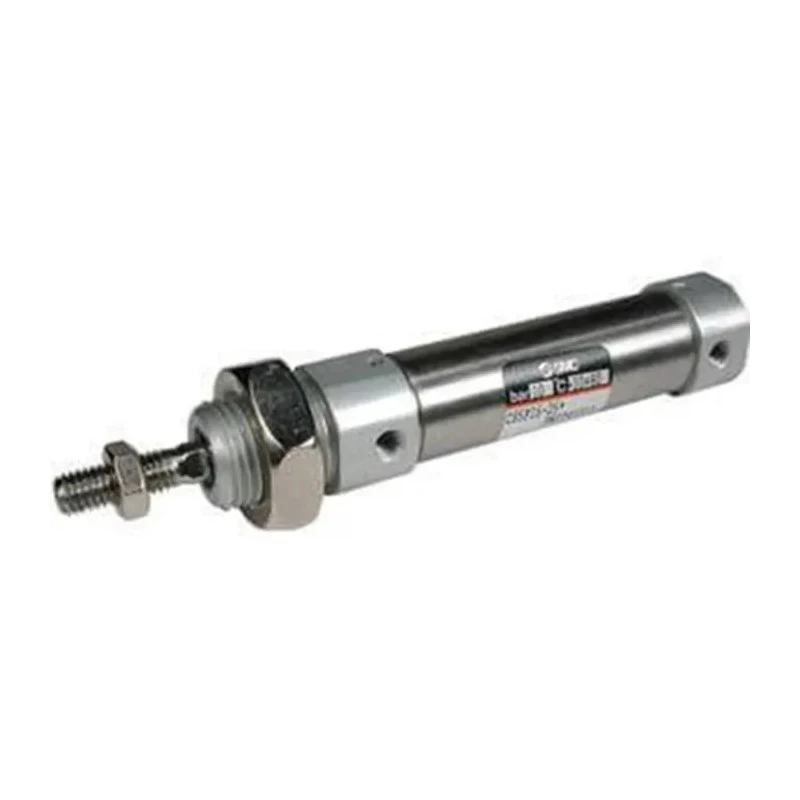

The SMC CD85N12-100-B double acting pneumatic cylinder combines a lightweight aluminium alloy body with reliable internal cushioning, designed for compact industrial automation and motion control applications requiring precise linear actuation.

Featuring a 100 mm stroke length, this cylinder utilizes double acting operation to provide bidirectional piston movement for accurate extension and retraction. Its single piston rod is male threaded with an M6 metric standard, allowing easy fitting of accessories and tooling.

The clevis-style mount provides a pivoting connection that accommodates misalignment and angular movement, enhancing installation flexibility. Rubber bumper cushioning at the end of the stroke effectively absorbs impact energy, reducing vibration, shock, and mechanical stress during high-speed, repetitive cycles.

With a maximum piston speed of 1500 mm/s, the cylinder is suited for rapid cycle operations in manufacturing settings. It is rated to operate at temperatures up to +80°C, accommodating elevated ambient conditions commonly encountered in industrial environments.

Manufactured to the ISO 6432 standard, the CD85 series ensures dimensional compatibility and interchangeability with standard pneumatic components and accessories across various automation systems.

The aluminium alloy body reduces overall system weight and resists corrosion. Double acting action type provides controlled force on both extension and retraction stroke. Clevis mounting supports pivoting motions and secure installation.

Rubber bumper cushioning minimizes mechanical stress at stroke ends. Single piston rod with M6 male thread offers secure accessory attachment. Suitable for pick-and-place actuators, valve actuation, test fixtures, clamps, ejectors, and robotic tooling.

Complies with the international ISO 6432 standard for compact pneumatic cylinders.

This pneumatic piston rod cylinder is ideal for use in industrial automation, assembly lines, HVAC control panels, manufacturing production cells, and robotic end-of-arm tooling applications. Its advanced cushioning and mounting features increase reliability and lifespan in demanding operational cycles.
