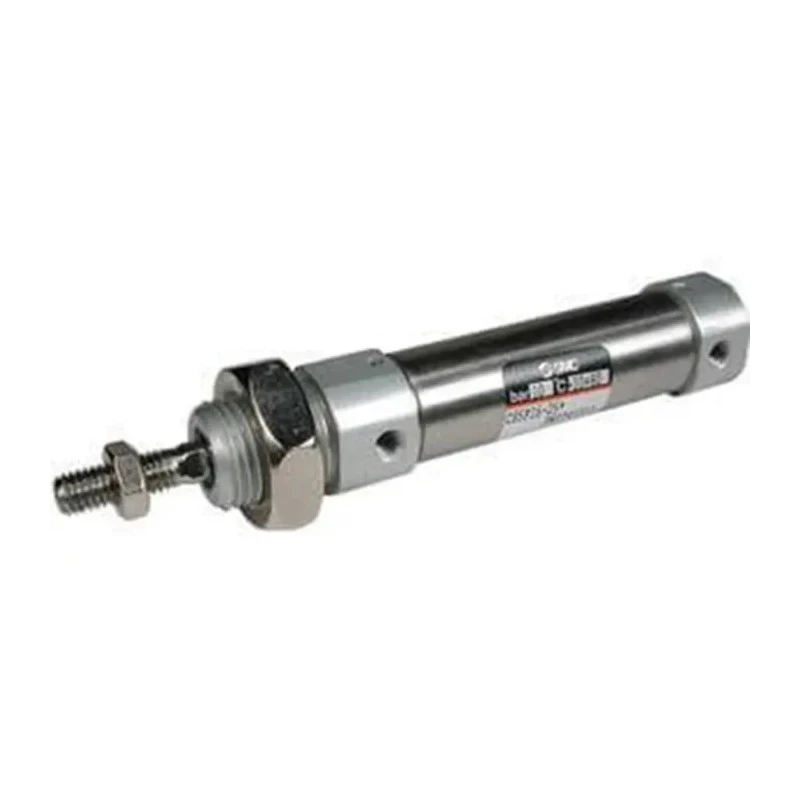

SMC 10 mm Double Acting Cylinder Both Ends Tapped Aluminium Alloy Body C85N16-10

The SMC C85N16-10 is a precision-engineered double acting cylinder from the C85N series, featuring a 10 mm stroke length and robust aluminium alloy body. It is designed to deliver reliable pneumatic actuation for a variety of industrial, laboratory, and manufacturing applications.

This cylinder employs a double acting mechanism that allows force to be exerted during both extension and retraction of the piston, ensuring smooth and consistent motion. The mount type is both ends tapped, facilitating secure attachment in tightly integrated pneumatic systems.

The aluminium alloy body provides an excellent balance of strength and light weight, making it suitable for high-speed operations. Additionally, the cylinder is fitted with rubber bumpers to cushion the piston at the end of its stroke, reducing noise and mechanical wear.

Capable of a maximum piston speed of 1500 mm/s, the cylinder meets demanding performance criteria with a single rod design. The rod has a female thread meeting metric standards for compatibility with various fixtures and accessories.

Operational integrity is maintained up to a maximum temperature of 80°C, suitable for a range of industrial environments. The product is RoHS compliant, supporting environmentally responsible manufacturing and usage.

Double acting pneumatic cylinder with both ends tapped mount type. Aluminium alloy body ensures durability and reduced weight. Rubber bumper type cushioning minimizes mechanical impact. Stroke length of 10 mm suited for precision linear motion.

Maximum piston speed up to 1500 mm/s for efficient actuation. Single rod design with female piston rod thread. Maximum operating temperature of 80°C. Complies with RoHS regulations for safety and environment.

This cylinder is widely used in industrial automation, mechanical machinery, and fluid power systems requiring reliable linear actuation. It suits applications in assembly lines, packaging equipment, and pneumatic systems where controlled linear motion is essential.
