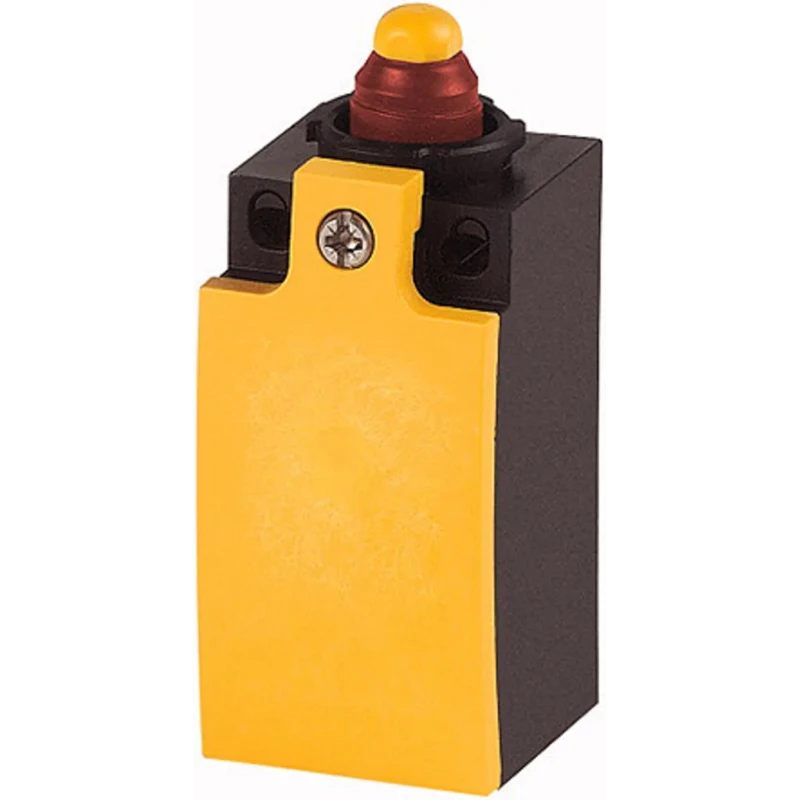

Eaton LS-Titan Series Plunger Limit Switch IP65 Insulated Plastic Housing 415V AC 6A

Eaton 176887 LS-11A-CC Plunger Limit Switch IP65 from the LS-Titan Series is engineered for industrial automation applications requiring precise and safe monitoring of machine guards, doors, flaps, and grilles. It offers a robust insulated plastic housing capable of operating in cold climates and harsh environments, ensuring durability and operator safety.

This limit switch features snap-action contacts with positive opening to prevent defeat using common tools, providing reliable interruption of electrical circuits in safety applications. With a switching capacity of 6A at 415V AC and 220V DC, it supports a variety of control circuits.

The compact dimensions (31mm length, 33.5mm width, 76mm depth) and cage clamp terminal type enable straightforward integration and secure wiring. The switch maintains operability across a broad temperature range from -40°C to 70°C, supporting versatility in challenging industrial environments.

The LS-Titan range includes plunger, lever, rotary, and rod actuating heads, with this model featuring a plunger actuator for direct contact sensing. Mechanical life expectancy extends up to 8 million operations, ensuring reliable long-term function in industrial, manufacturing, construction, and automation control systems.

Designed and manufactured in Germany, this limit switch conforms to RoHS standards and does not have hazardous area certification. Installation is flexible with top mounting orientation, supporting diverse application needs.

Designed for reliable position monitoring of protective guards and machine safety. Heavy-duty insulated plastic housing with cold climate resistance. Snap-action contacts with positive opening for enhanced safety. Suitable for operation in a temperature range from -40°C to 70°C.

Cage clamp terminals provide secure and maintenance-free connections. Compact dimensions of 31mm length, 33.5mm width, and 76mm depth. Rated for switching AC voltage up to 415V and DC voltage up to 220V. High mechanical durability of 8 million operations ensures long service life.

Flexible mounting orientation and versatile operating heads available. Manufactured in Germany with RoHS compliance and no hazardous area certification.

This Eaton LS-Titan Series plunger limit switch is ideal for industrial safety circuits, automation control, and mechanical position sensing in electrical and manufacturing sectors. Explore more Limit Switches and Eaton products on EnvMart.
