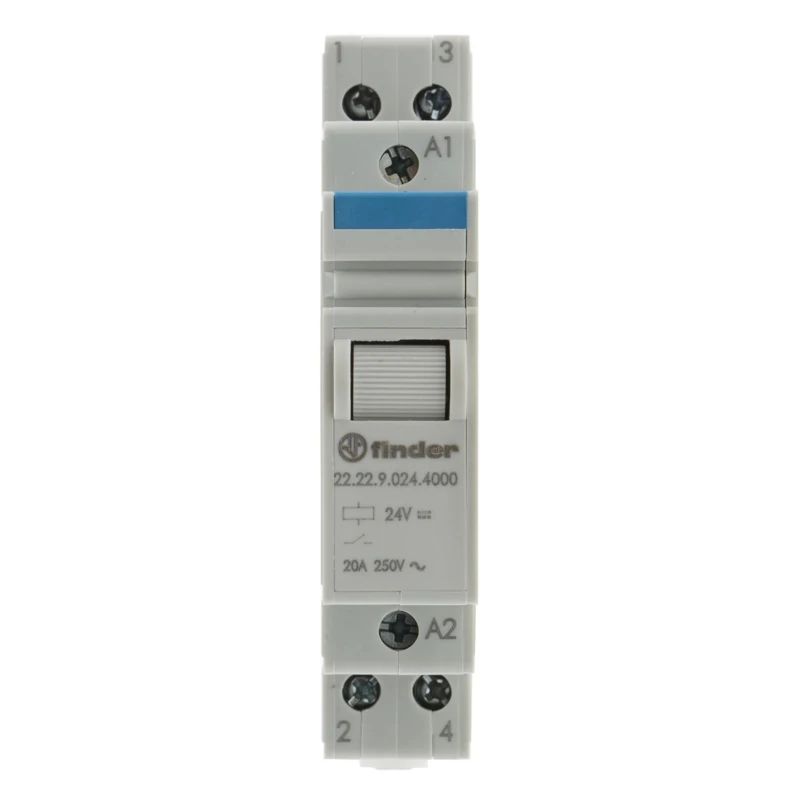

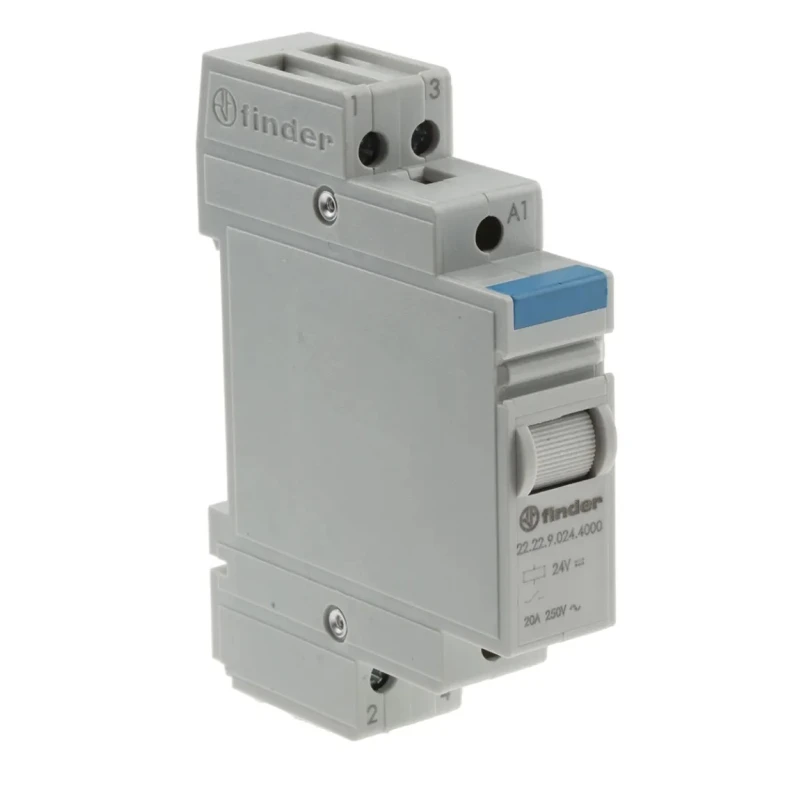

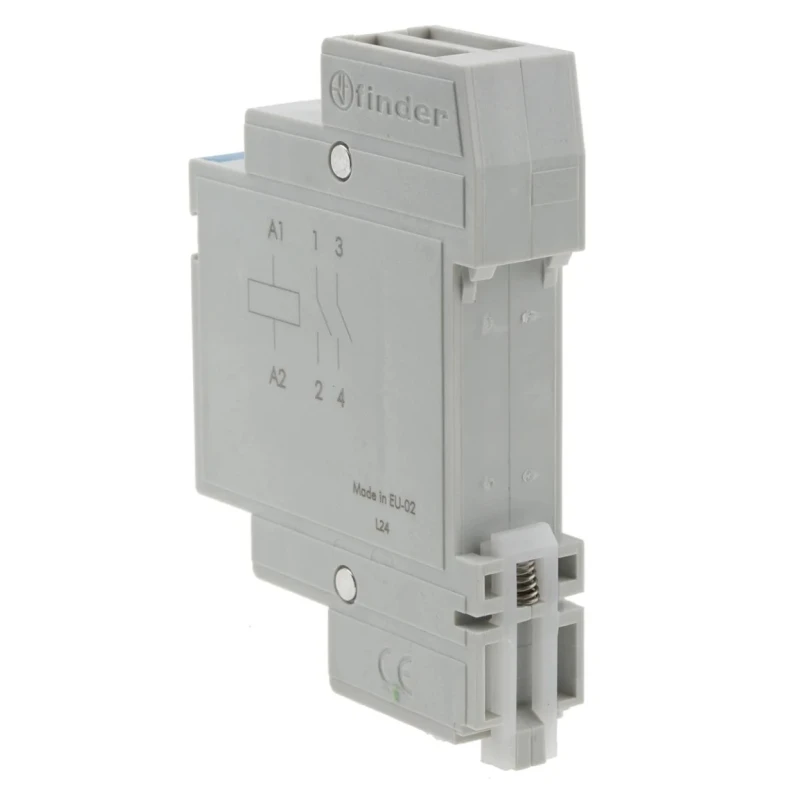

Finder DIN Rail Impulse Relay 24V DC Coil 20A Switching Current 2 NO Contacts Series 22 22.22.9.024.4000

Finder 22.22.9.024.4000 DIN Rail Impulse Relay with a 24V DC coil voltage and 20A switching current is designed for efficient and reliable operation in various automation and electrical control systems. This relay features a 2 normally open (2 NO) contact configuration and is built for DIN rail mounting, simplifying installation and maintenance in industrial and commercial electrical panels.

The relay is constructed with silver alloy contacts that offer longevity and superior electrical conductivity, making it suitable for handling different types of loads such as incandescent, halogen, and fluorescent lighting. Its coil resistance of 460 Ohms and coil power of 1.25 Watts ensure energy-efficient coil operation.

Engineered to operate in ambient temperatures from -40°C to +40°C, this device maintains reliable performance even in demanding environments. The insulation between coil and contacts is rated at 4 kV, providing protection against transient voltages and enhancing overall safety.

Physical dimensions of 58.4mm length, 58.4mm width, and 84mm height allow for compact and space-saving integration. The relay’s switching AC voltage rating is 250V AC, supporting diverse electrical applications in commercial buildings, energy management systems, lighting control, and industrial pump controls.

The relay operates at a coil voltage of 24V DC ensuring broad compatibility. Supports a high switching current of 20 Amps for robust load management. Equipped with 2 normally open contacts to provide efficient circuit control.

Designed for DIN rail mounting with secure screw terminal connections for ease of installation. Coil resistance is rated at 460 Ohms with a power consumption of 1.25 Watts. The relay withstands an operating temperature range from -40°C to +40°C for reliable performance.

Switching AC voltage capacity is 250V AC supporting various load types including incandescent and fluorescent loads. Silver alloy contacts ensure durability and optimized electrical conduction. Insulation between coil and contacts rated at 4 kV providing enhanced safety against transient voltages.

Compact dimensions of 58.4mm length, 58.4mm width, and 84mm height facilitate easy integration in electrical panels.

This Finder relay is suitable for industrial automation, building management systems, energy control, and commercial lighting control. Its reliable switching capabilities improve the efficiency and safety of electrical circuits. Available as a new, high-quality component produced in France, it meets relevant industry standards such as EAC and CE.
