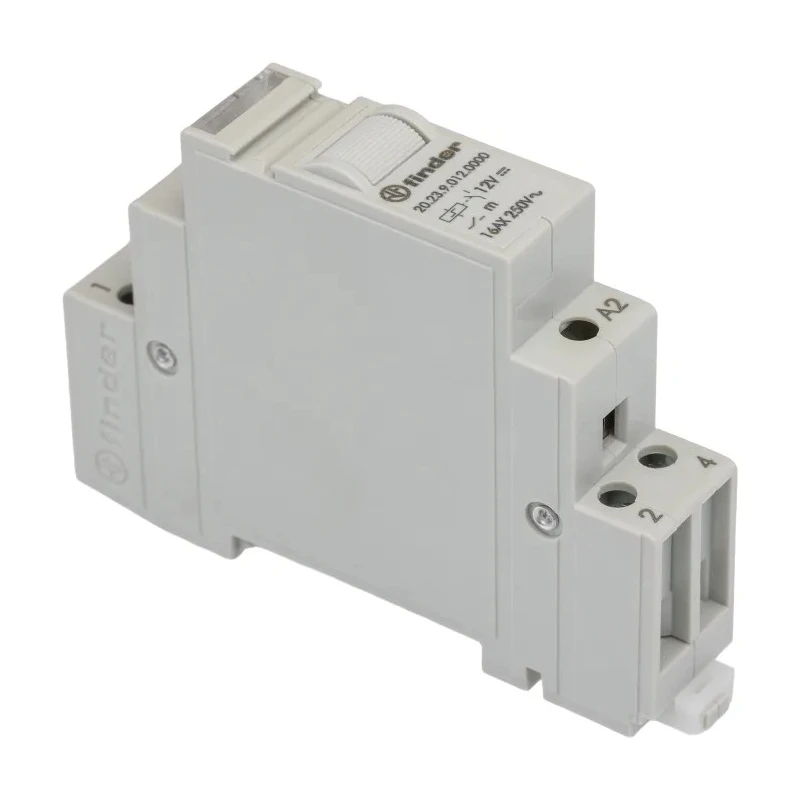

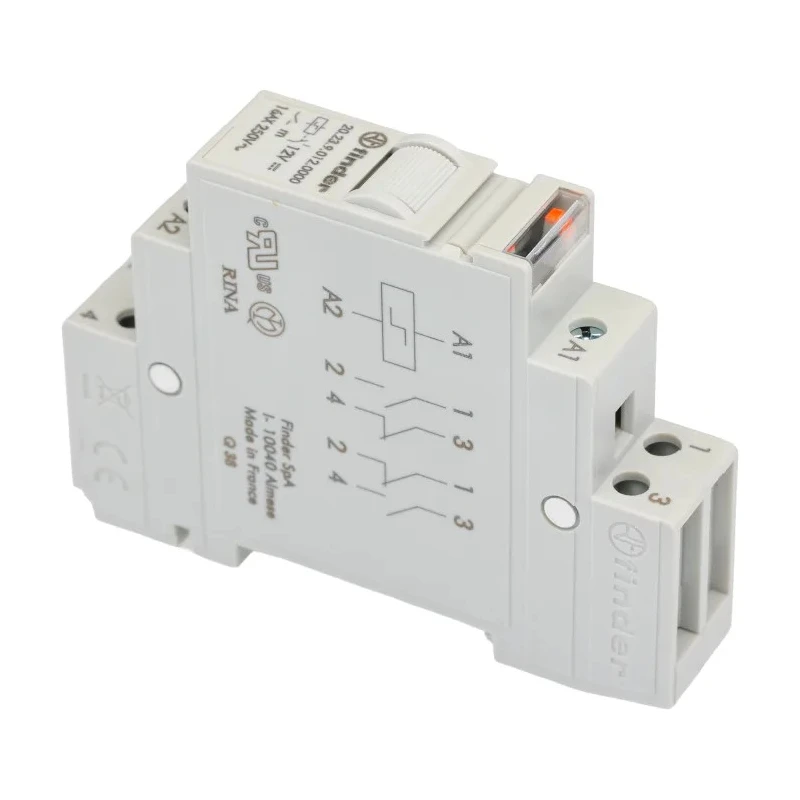

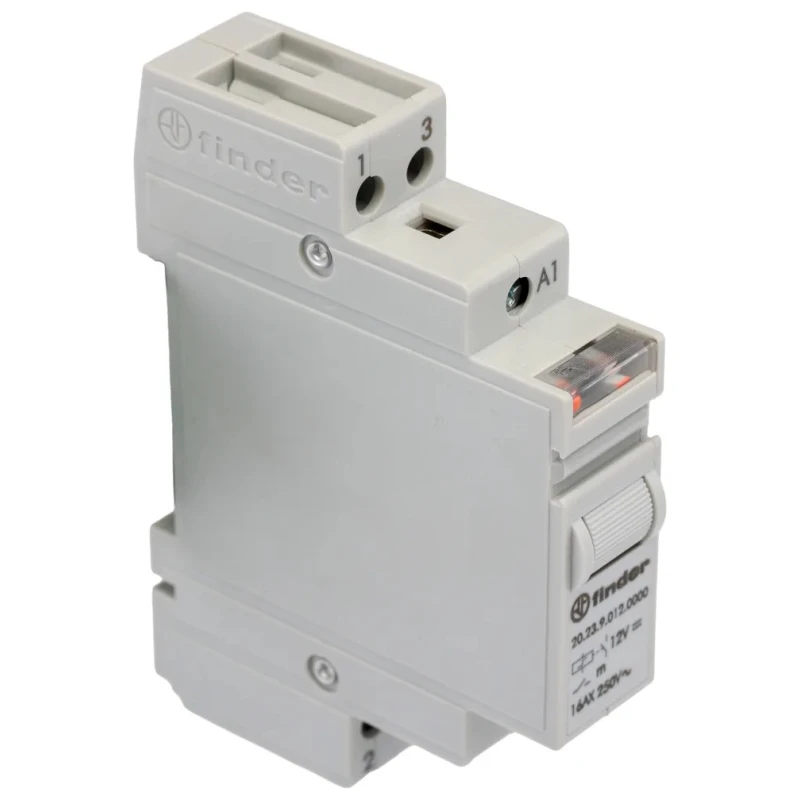

Finder DIN Rail Modular Step Relay 12V DC Coil 16A Switching Current 20.23.9.012.0000

Finder 20.23.9.012.0000 DIN Rail Modular Step Relay is a precision-engineered device intended for control and automation tasks in industrial, commercial, and building electrical automation applications. It operates on a coil voltage of 12V DC and supports a switching current of 16A, making it suitable for a variety of motor and lighting control systems.

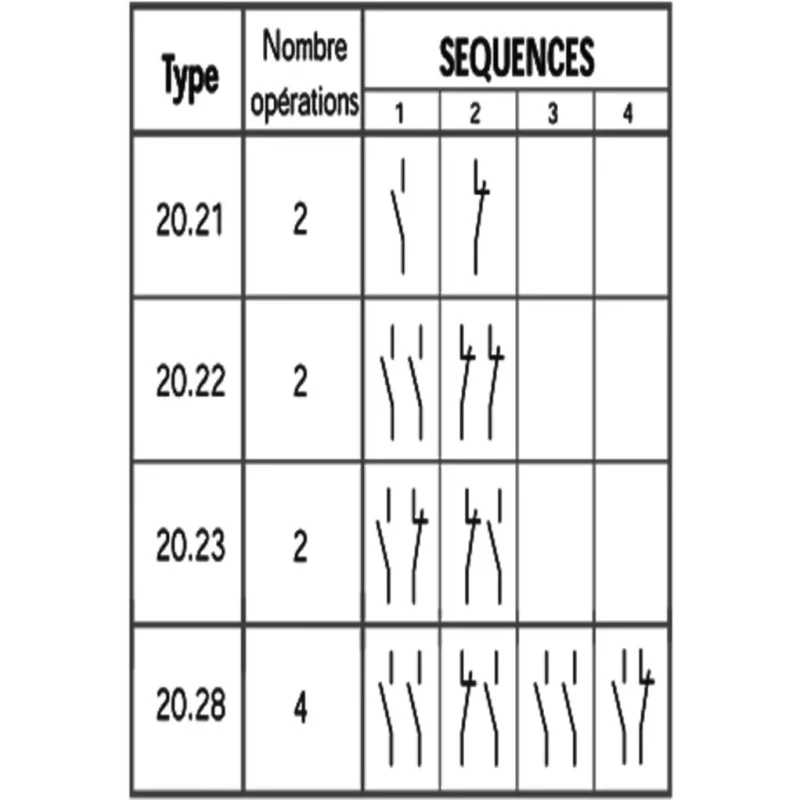

The relay utilizes a latching mechanism which improves energy efficiency by maintaining its contact position without continuous coil power. It provides seven selectable switching sequences, allowing complex control schemes such as lighting in hotel corridors or coordinated bedroom lighting systems.

Installation is streamlined with compatibility for mounting on 35mm standard DIN rails and screw terminals that ensure secure wiring connections. Its compact size (84mm height, 58.4mm width, and 58.4mm depth) fits well within electrical panels requiring modular components.

Constructed with silver alloy contacts, it guarantees high conductivity and long operational life, while the coil resistance of 27Ω and coil power of 5W reflect efficient electrical design. The unit supports a maximum switching power of 4kVA and can switch up to 250V AC loads reliably. Designed to function in temperature ranges from -40°C to 40°C, it performs dependably under various environmental conditions.

Typical industrial applications include automation of blinds, grilles, shutters, motor systems, and lighting controls, especially where energy saving and reliability are critical. Its robust design and international standards compliance (RoHS, RINA, EN, EAC, cURus, CE) ensure suitability for demanding environments.

The relay supports a maximum switching current of 30A for robust applications. Offers a choice of seven switching sequences for custom control. Integrated test button enhances operational convenience and monitoring. Designed for direct mounting on 35mm DIN rails for easy installation.

Latching mechanism ensures energy efficiency and performance stability. Equipped with screw terminals for secure and reliable connections. Compact dimensions suit installation in space-limited electrical panels. Silver alloy contacts provide durable and reliable electrical connections.

Operable in temperatures from -40°C to 40°C for diverse conditions. Ideal for automation of lighting, blinds, shutters, and motor-driven systems. Explore a wide range of industrial relays and automation components on EnvMart to complement the Finder Modular Step Relay for tailored control solutions.
