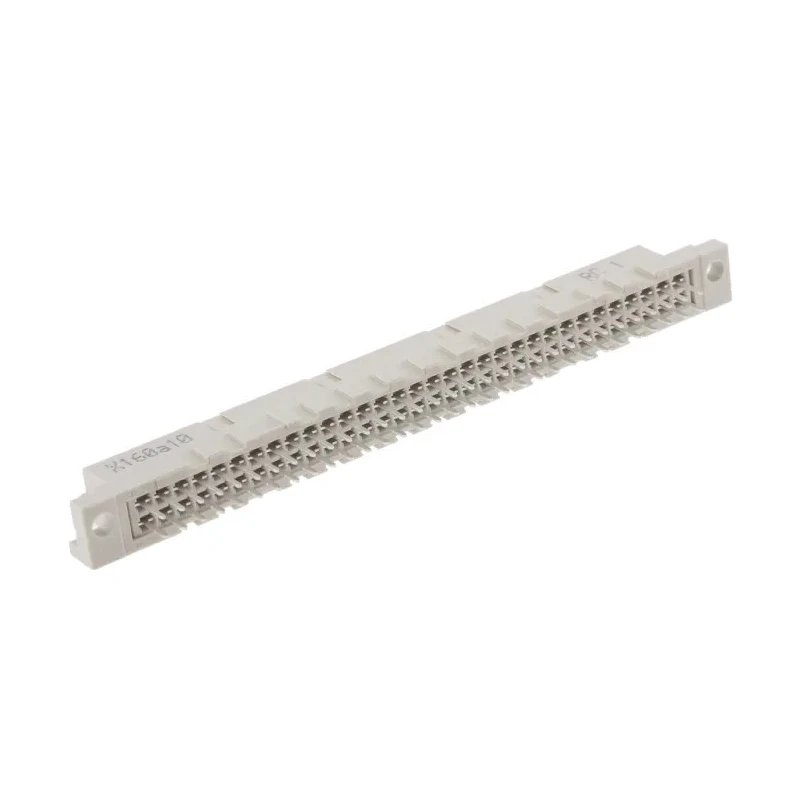

RS PRO 64 Way 2.54 mm Pitch 2 Row Female Straight DIN 41612 Connector Type B Solder Termination Class C1 1kV 2A 508-3072

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 64 Way 2.54 mm Pitch 2 Row Female Straight DIN 41612 Connector Type B Solder Termination Class C1 1kV 2A 508-3072

Name: RS PRO 64 Way 2.54 mm Pitch 2 Row Female Straight DIN 41612 Connector Type B Solder Termination Class C1 1kV 2A 508-3072
Brand: RS PRO
SKU: 192278
Price: 9.91 USD
Availability: InStock



Category DIN 41612 Connector Brand RS PRO Condition New

Specifications

Country of Origin	Germany
Voltage	1kV
Brand	RS PRO
Orientation	Straight
Current	2A
Model	508-3072
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	RS PRO
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Type B
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B
Class1 64way 2row DIN41612a/b socket,4mmBrand	NEUTRAL

Key Features

Ensures reliable 2A current conduction at 1kV voltage rating.
Features gold over nickel contact plating for enhanced conductivity and corrosion resistance.
Manufactured with polybutylene terephthalate housing providing robust insulation and durability.
Operates efficiently in temperatures ranging from -55°C to 125°C.
Dual cantilever female contacts reduce insertion force and extend connector life.
Designed to DIN 41612 standards for industrial backplane and rack applications.
Suitable for telecommunications, data communications, and measurement control systems.
Provides a high-quality interconnection solution for 19-inch Eurocard racking systems.

Product Description

RS PRO model 508-3072 is a 64 Way, 2 Row Female Straight DIN 41612 Connector designed to provide a dependable connection interface with a 2.54 mm pitch and Type B configuration.

Constructed with brass contacts plated in gold over nickel, and housed in high-quality polybutylene terephthalate, this connector delivers robust electrical performance and mechanical durability suitable for demanding industrial and electronic applications.

The connector supports a current of 2A and withstands voltages up to 1kV. It operates reliably across a wide temperature range from -55°C to 125°C, making it suitable for both indoor and demanding environmental conditions.

Featuring Class C1 performance and dual cantilever female contacts, it reduces insertion force while enhancing reliability and lifespan. The Type B, 2 row layout with A/B row loading is compatible with standard 19-inch Eurocard backplane and sub-rack systems.

This connector is ideal for applications in telecommunications, data communications, measurement, and control systems, providing secure connections between plug-in cards and backplanes at right angles or between parallel PCBs.

Ensures reliable 2A current conduction at 1kV voltage rating. Features gold over nickel contact plating for enhanced conductivity and corrosion resistance. Manufactured with polybutylene terephthalate housing providing robust insulation and durability.

Operates efficiently in temperatures ranging from -55°C to 125°C. Dual cantilever female contacts reduce insertion force and extend connector life. Designed to DIN 41612 standards for industrial backplane and rack applications.

Suitable for telecommunications, data communications, and measurement control systems. Provides a high-quality interconnection solution for 19-inch Eurocard racking systems.

This RS PRO DIN 41612 Connector meets the needs of industrial engineers, laboratories, and manufacturers requiring high-performance and reliable connection systems. Browse the comprehensive RS PRO range on EnvMart for compatible connectors and accessories.
