RS PRO Clamp Meter True RMS 1 kA AC 750 V DC 1000 V Non-Contact Voltage Detector ICM133R
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery Life | 300h |
| Battery type | NEDA 1604, IEC 6F22 |
| Height | 275mm |
| Length | 90mm |
| Model | ICM133R |
| Gross Weight | 420g |
| Width | 51mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 100mV |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±1.9% + 5 Digits |
| Resistance Measurement Accuracy | ±1 % rdg + 3 Digits |
| Resistance Resolution | 100mΩ |
| Maximum Jaw Opening | 51mm |
| Standards/Approvals | MILT28800E, IEC 610101, EN 613261 |
| Functions Measured | DC Voltage, Frequency, AC Voltage, Resistance, Diode, Continuity, AC Current |
| Maximum Resistance Measurement | 400Ω |
| Maximum AC Current Measurement | 1kA |
| Maximum DC Voltage Measurement | 1000V dc |
| Maximum AC Voltage Measurement | 750V ac |
| Safety Category Level | CAT IV, CAT III |
| Safety Category Voltage | 600, 1V |
| Maximum Conductor Size | 51mm |
| Clamp Meter Type | Current, Voltage |
Key Features
- The clamp meter features a large backlit digital LCD for clear readings.
- True RMS measurement technology provides precise AC current values even with distorted waveforms.
- Includes non-contact voltage detection for enhanced safety during electrical testing.
- Maximum jaw opening of 51mm allows clamping around various conductor sizes.
- Multiple measurement functions include DC voltage, AC voltage, resistance, diode test, continuity, frequency, and AC current.
- Equipped with an analogue 43-segment bargraph to visualize measurement trends.
- Powered by a NEDA 1604 (IEC 6F22) battery with an estimated life of 300 hours.
- Complies with CAT IV 600 V and CAT III 1000 V safety standards for industrial and field use.
Product Description

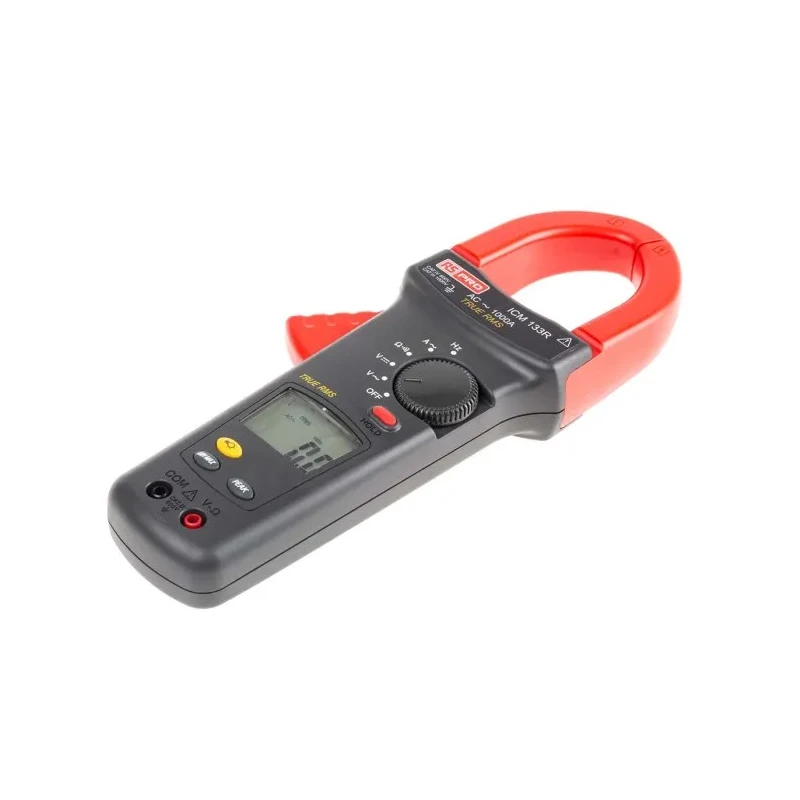

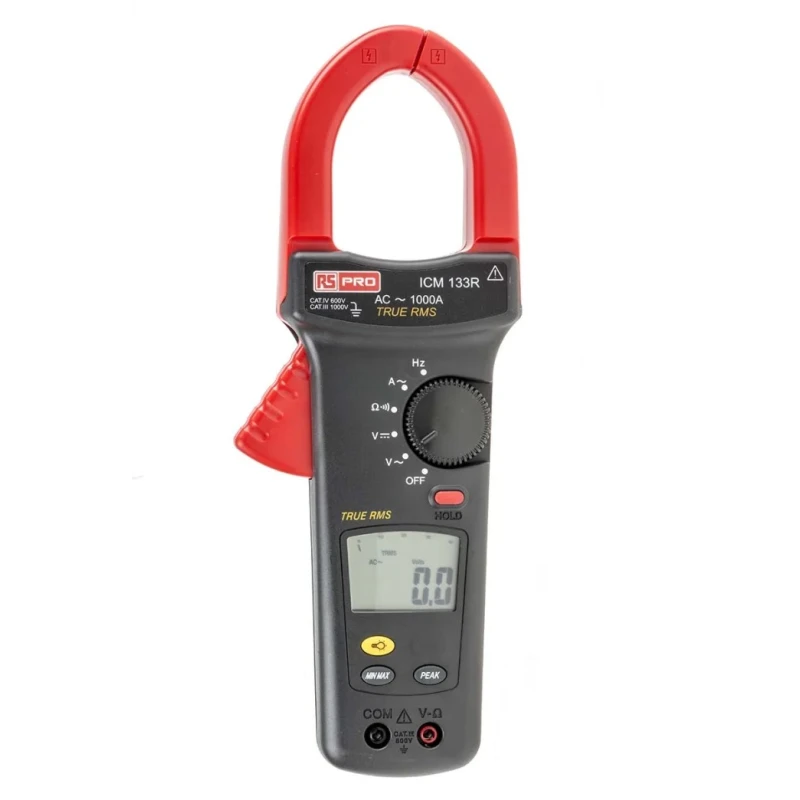

RS PRO ICM133R Clamp Meter is a reliable electrical test instrument designed for precise measurement of AC and DC current and voltage up to 1 kA and 1000 V respectively, utilizing True RMS technology.
This clamp meter features nickel steel alloy jaws with a maximum opening of 51mm, enabling measurement on a variety of conductor sizes.
The device is powered by a standard NEDA 1604 battery, providing up to 300 hours of operation. Its large, backlit LCD and an analogue 43-segment bargraph facilitate clear, convenient readings even in low-light conditions.
Functions include DC voltage, frequency, AC voltage, resistance, diode testing, continuity check, and AC current measurement. The instrument offers an accuracy of ±1.9% for AC and DC current and ±1% for resistance measurements.
Safety is ensured with compliance to CAT IV 600 V and CAT III 1000 V standards, making it suitable for demanding electrical environments such as industrial, construction, HVAC, and manufacturing maintenance.
The ICM133R also features a non-contact voltage detector, enhancing user safety by allowing voltage detection without direct wire contact. The display hold and peak hold functions allow capturing stable measurement values.

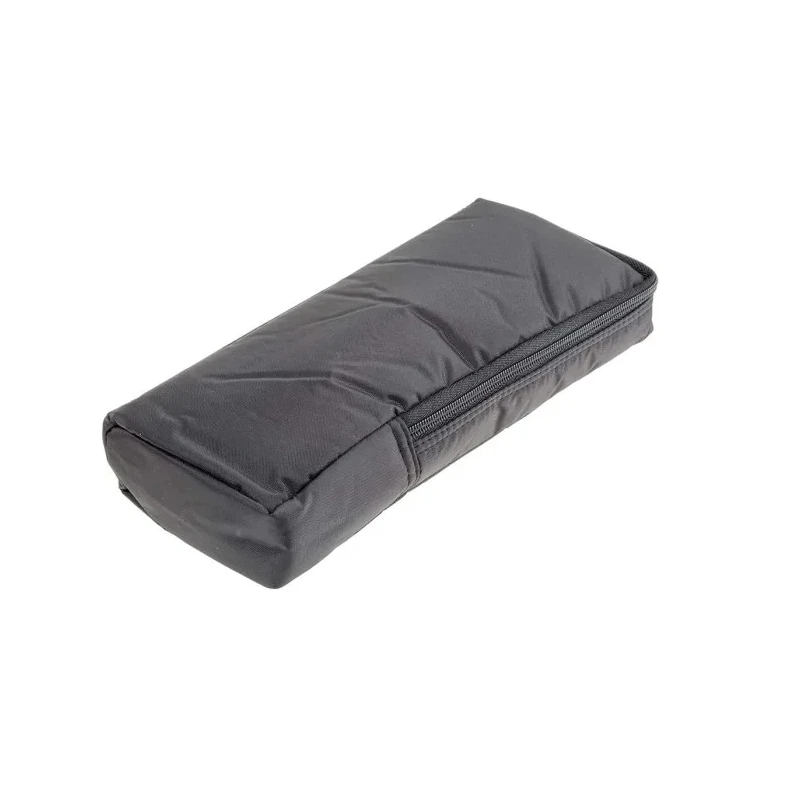

Auto power-off conserves battery life during periods of inactivity. Continuity bleeper facilitates quick circuit checks without observing the display. This clamp meter comes with a protective carry case for safe transport and storage, making it ideal for professionals requiring accuracy and versatility in the field.
Explore RS PRO products and top-quality Clamp Meters in EnvMart's Measuring & Testing Instruments category for industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO ICM133R clamp meter can measure AC current up to 1 kA.
This clamp meter can measure DC voltage up to 1000 V and AC voltage up to 750 V.
It can measure DC voltage, AC voltage, resistance, diode, continuity, frequency, and AC current.
The accuracy for both AC and DC current measurements is ±1.9% + 5 digits.
The maximum jaw opening is 51 mm, allowing it to clamp around various conductor sizes.
It features a large backlit LCD display for clear readings, even in low-light conditions.
The clamp meter is powered by a NEDA 1604 battery, providing an estimated battery life of 300 hours.
It complies with CAT IV 600 V and CAT III 1000 V safety standards, suitable for industrial and field use.
The maximum operating temperature is 50°C, and the minimum operating temperature is 0°C.
Yes, it includes a non-contact voltage detector for enhanced safety during electrical testing.
The gross weight of this clamp meter is 420 g.
It includes an analogue 43-segment bargraph for visualizing measurement trends, display hold, peak hold functions, and a continuity bleeper.
