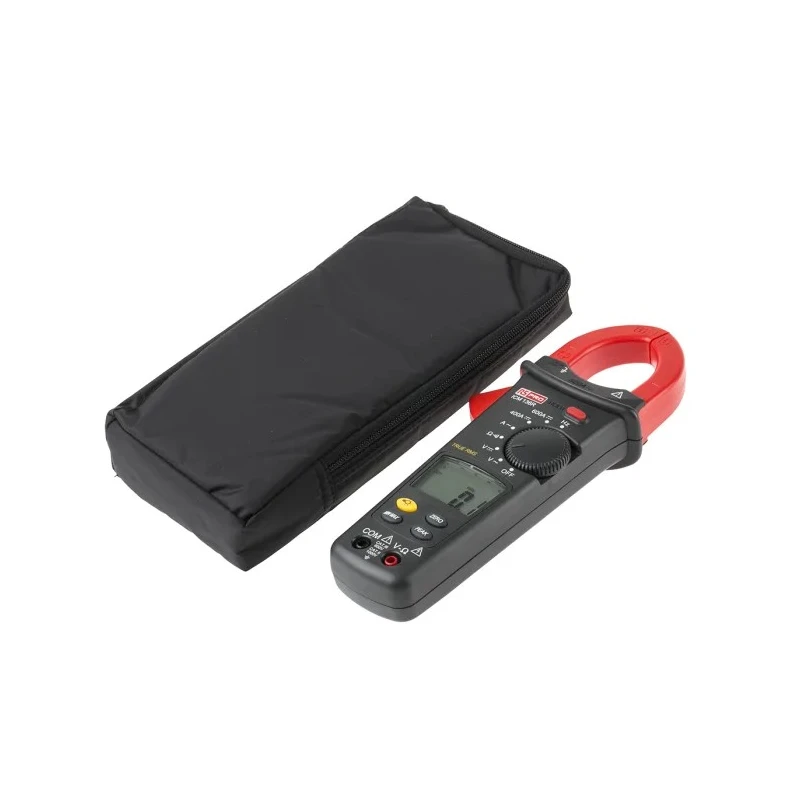

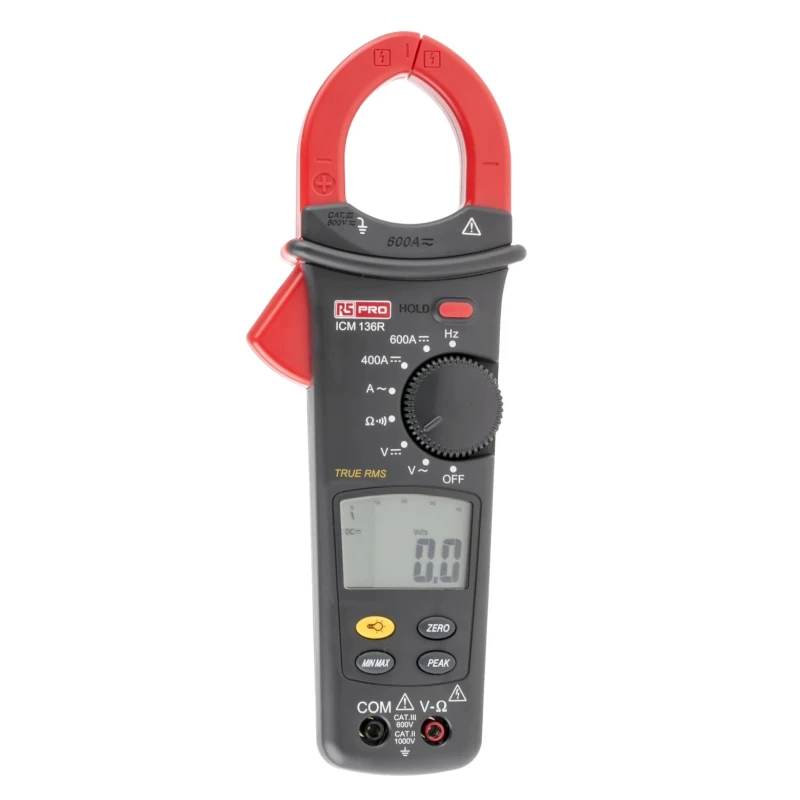

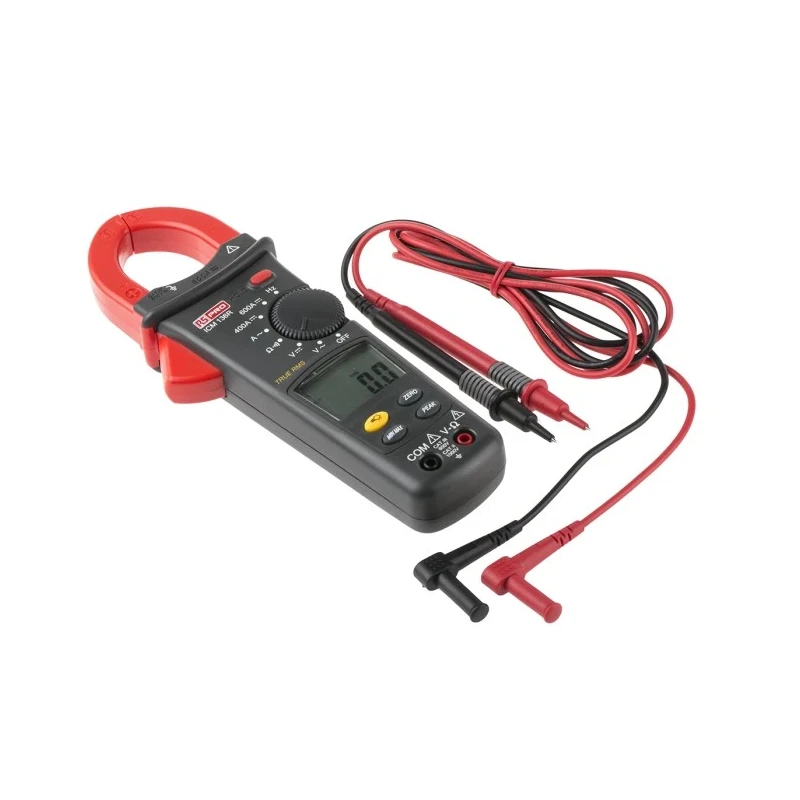

RS PRO ICM136R Clamp Meter True RMS AC/DC Current and Voltage Measurement 600 A 600 V CAT III CAT II

RS PRO ICM136R Clamp Meter is a versatile electrical measuring instrument offering true RMS AC and DC current and voltage measurement capabilities up to 600 A and 600 V respectively. The device utilises Hall Effect technology combined with durable nickel steel alloy jaws featuring a 35 mm maximum jaw opening, enabling precise current sensing on wires and busbars without direct contact.

This clamp meter boasts a bright backlit LCD display with 4000 counts and an analogue bar graph delivering clear, real-time measurements. It supports resistance measurement with an audible continuity beeper, frequency counting, diode testing, and includes a non-contact voltage detector for enhanced safety. The meter’s DCA zeroing key, min/max function, and peak hold (10 ms) provide flexible data acquisition options for field and workshop scenarios.

Powered by standard NEDA 1604, IEC 6F22 batteries, the instrument provides up to 300 hours of operation to facilitate extended use on site. Weighing only 380 g, it is designed for portability and convenience, supplied with a protective carry case. The clamp meter complies with EN 613261, IEC 610101, and MILT28800E standards, and is safety rated for CAT III and CAT II environments at 600 V, suitable for both industrial and commercial electrical testing tasks.

This device is ideal for electricians, technicians, and engineers requiring reliable current measurements in maintenance, installation, and troubleshooting tasks. Its True RMS technology ensures accuracy even with non-linear and distorted waveforms, outperforming average reading meters.

True RMS reading ensures accurate current measurement in complex waveforms. Measures AC and DC current up to 600 amperes and voltage up to 600 volts. Equipped with nickel steel alloy jaws with 35 mm maximum opening for conductor sizes.

Features a large backlit 4000 count LCD display and analogue bar graph for clear readings. Includes resistance, frequency, diode, continuity tests and non-contact voltage detection. Battery powered with long 300-hour battery life using NEDA 1604, IEC 6F22 battery type.

Safety rated for CAT III and CAT II environments with 600 V voltage rating. Lightweight design at 380 g with portable carry case for secure transit. Additional functions include max/min, peak hold, display hold, frequency counter, and DCA zeroing key.

Ideal for electrical test and measurement in industrial, maintenance, and construction applications. Explore more precision electrical test meters and accessories in EnvMart's Measuring & Testing Instruments category for optimal selection and trusted brand assurance.
