RS PRO Current Clamp AC Adapter 3 kA Maximum AC Current, Accuracy ±0.5 % ± 5 Digits (AC Voltage), ICA3000

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Current Clamp AC Adapter 3 kA Maximum AC Current, Accuracy ±0.5 % ± 5 Digits (AC Voltage), ICA3000

Name: RS PRO Current Clamp AC Adapter 3 kA Maximum AC Current, Accuracy ±0.5 % ± 5 Digits (AC Voltage), ICA3000
Brand: RS PRO
SKU: 191910



Category Current Clamps Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Accuracy	±0.5 % ± 5 Digits (AC Voltage), 1 (AC Current) %
Brand	RS PRO
Model	ICA3000
Cable Length	457mm
Connector Type	Test Lead
Adapter Type	AC
Standards/Approvals	EN61010IEC 61010-1
Maximum AC Current	3kA
Maximum Conductor Size	170mm
Dimensions (box)	130 x 80 x 43 mm

Key Features

Flexible design enables winding multiple conductors and passing through obstacles.
Low AC voltage offset below 20 mVDC for precise measurements.
Wide bandwidth from 10 Hz to 10 kHz with low phase shift.
Input protection rated to 600 V for safe operation.
Powered by two AA alkaline batteries providing 300 hours battery life.
Compact box dimensions of 130 x 80 x 43 mm and lightweight at 430 g.
Terminated with right angle 4 mm shrouded plugs for test lead connection.
Complies with EN61010-1 Cat III, 600 V safety standards.

Product Description

RS PRO ICA3000 Current Clamp AC Adapter provides a highly flexible probe solution for measuring AC currents up to 3000 amperes with excellent accuracy. The flexible design allows the clamp to easily pass through obstacles and accommodate multiple conductors simultaneously, enhancing usability in complex electrical setups.

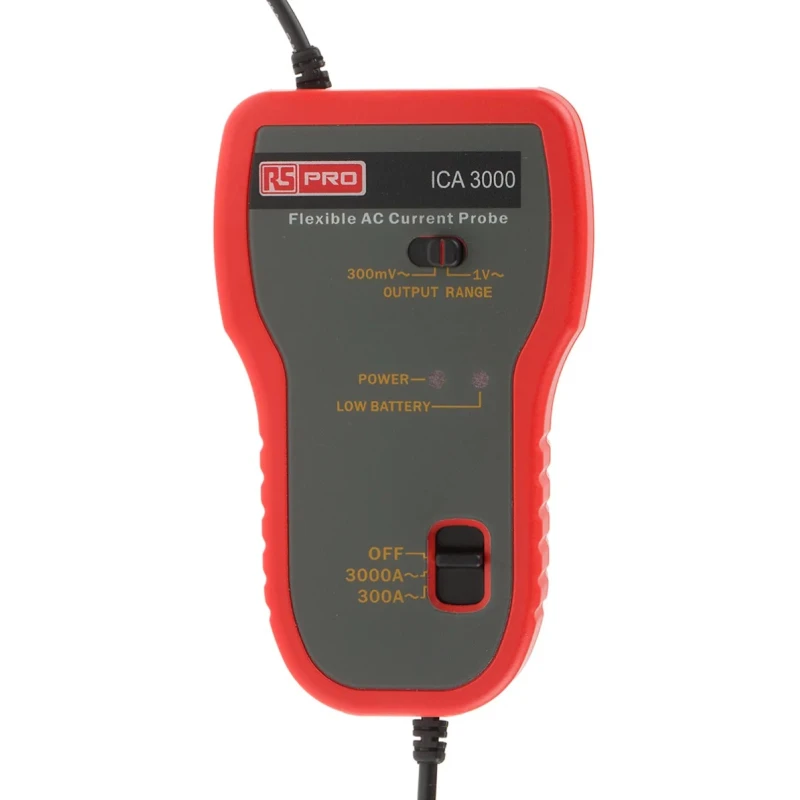

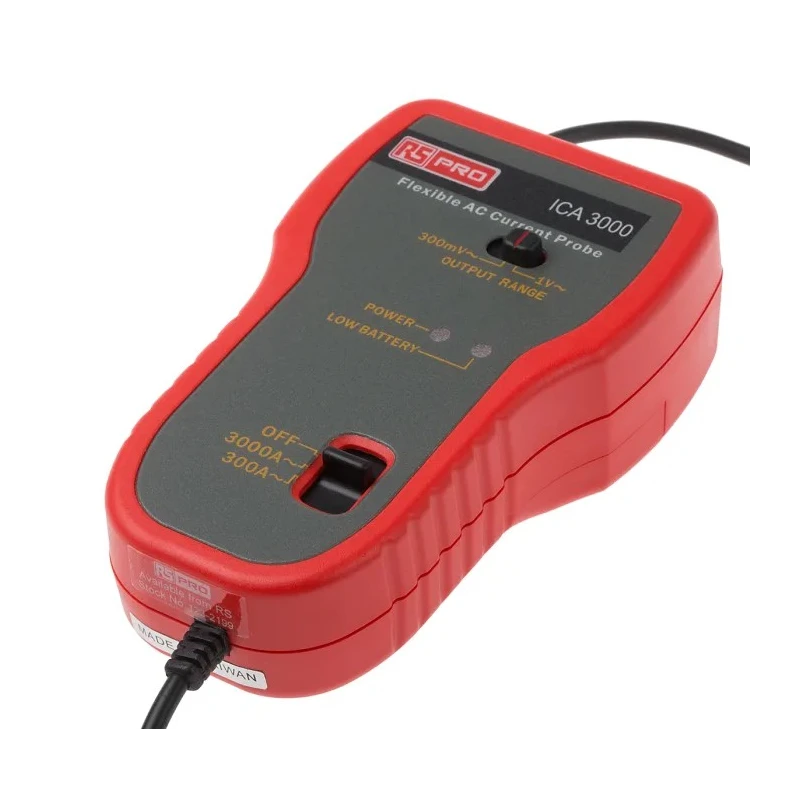

This clamp offers two selectable current ranges of 300 A and 3000 A with low offset voltages below 20 mVDC ensuring precise current sensing. Its wide bandwidth from 10 Hz to 10 kHz and minimal phase shift facilitates accurate measurement across broad frequency ranges.

The clamp features robust input protection rated up to 600 V and low output noise less than 2 mVAC RMS, suitable for safe and reliable operation in industrial environments.

Powered by two AA alkaline batteries, it delivers long-lasting performance with up to 300 hours of battery life, housed in a compact enclosure measuring 130 x 80 x 43 mm and weighing 430 grams for portable use.

The product comes terminated with right angle 4 mm shrouded plugs compatible with standard test leads. Certified to EN61010-1 Cat III 600 V safety standards, this clamp is designed for demanding industrial, laboratory, construction, and electronics applications.

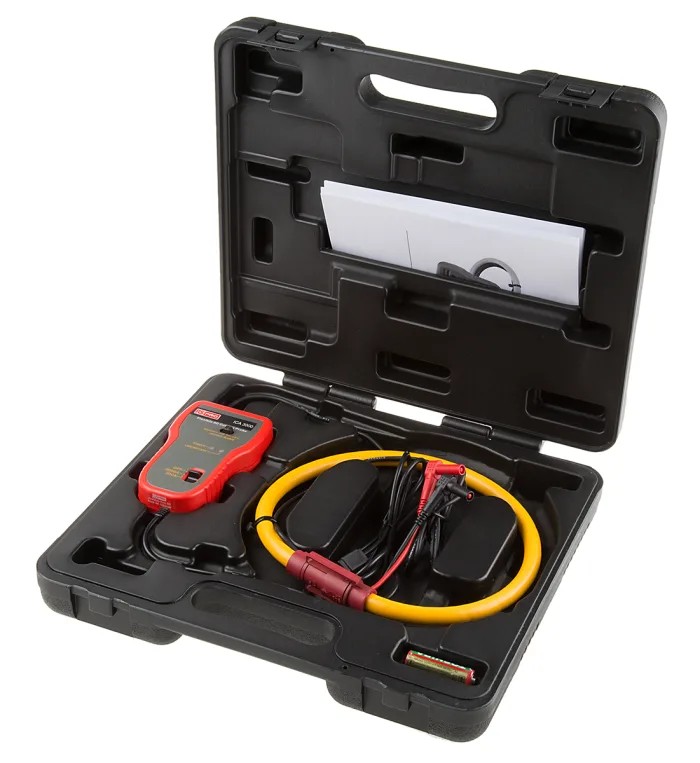

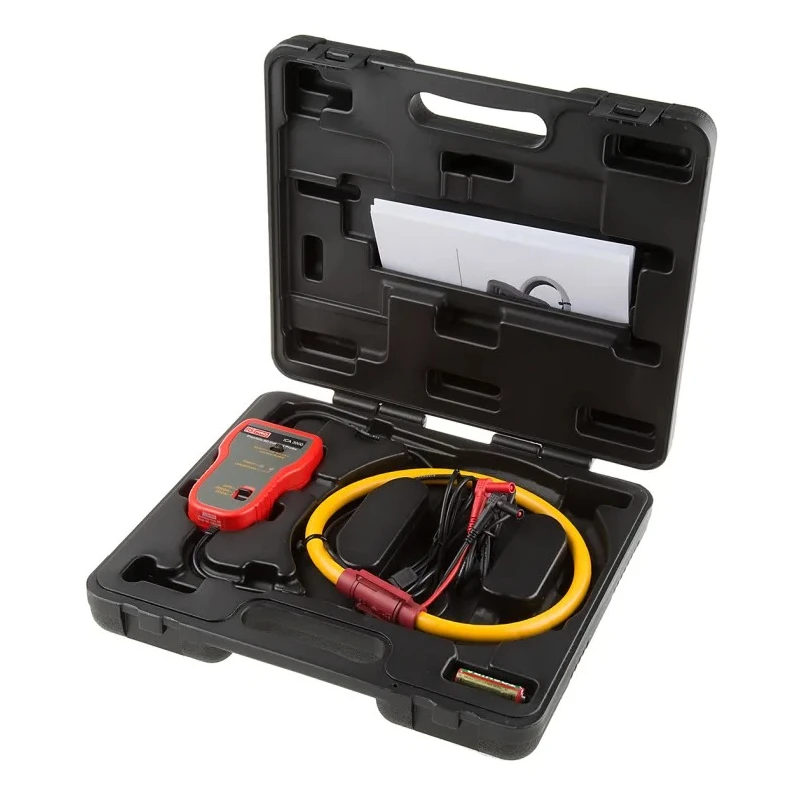

Typical use cases include electrical system current measurement, monitoring with multimeters, recorders, and data loggers across HVAC, manufacturing, and maintenance tasks. The package includes the current clamp probe, an operator manual, and two AA alkaline batteries to enable immediate use upon delivery.

Offers two selectable AC current ranges: 300 A and 3000 A. Flexible design for winding multiple conductors and passing through obstacles. Low AC voltage offset below 20 mVDC for precise measurements. Wide bandwidth (10 Hz to 10 kHz) with low phase shift.

Input protection rated to 600 V for safe operation. Long battery life of 300 hours powered by 2 AA alkaline batteries. Compact and lightweight design for portability. Terminated with right angle 4 mm shrouded plugs. Complies with EN61010-1 Cat III 600 V safety standards.

Suitable for multimeters, recorders, and data loggers in industrial settings. Discover the comprehensive range of Current Clamps and testing instruments available on EnvMart for reliable electrical measurement solutions.
