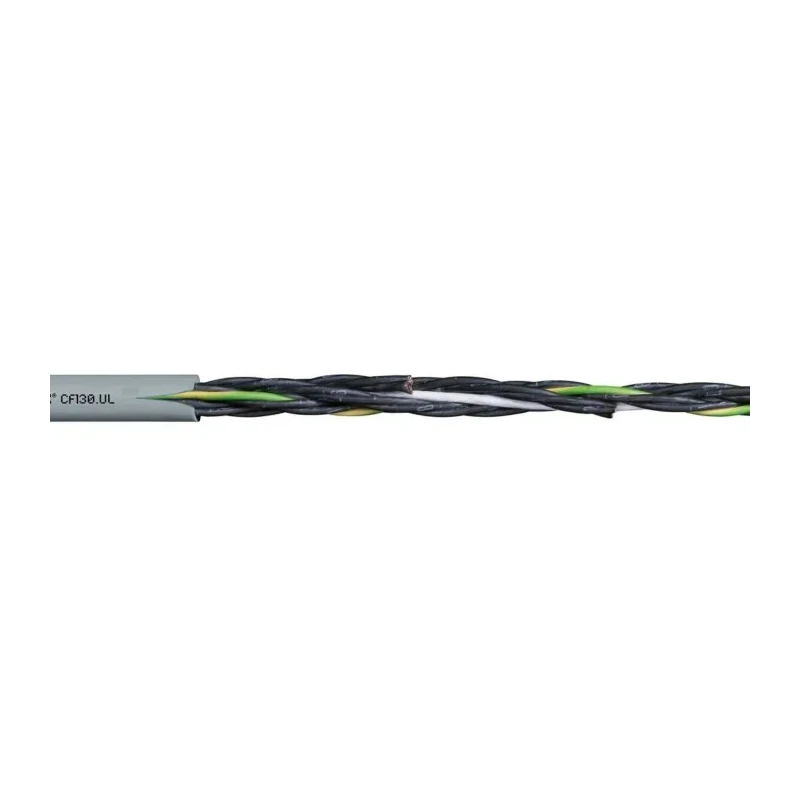

Igus Chainflex CF130.UL Control Cable, 4 Cores, 1mm² 17 AWG, Unscreened, Flame Retardant, 500V, 10 m Length CF130.10.04.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF130.10.04.UL |
| Cable Length | 10m |
| Series | Chainflex CF130.UL |
| Outside diameter | 7mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 17AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
Key Features
- The cable has a thermoplastic elastomer grey sheath suitable for indoor control applications.
- Rated for 500V operating voltage with flame retardant properties.
- Supports minimum operating temperature of -5°C and maximum of 70°C.
- Designed for medium load applications with torsion resistance and silicon-free construction.
- It is suitable for freely suspended travel distances and gliding applications up to 50 meters.
- The outer sheath is a low-adhesion PVC mixture tailored for energy chain requirements.
- Conforms to IEC 60332-1-2, FT1, VW1 flame retardant standards.
- Made in Japan with CE and EN certifications.
Product Description
Igus CF130.10.04.UL Chainflex control cable is a 4-core cable with 1mm² (17 AWG) stranded bare copper conductors housed in a grey thermoplastic elastomer sheath. This unscreened cable is engineered for medium load control applications requiring flexible, torsion-resistant cable with reliable performance in automation and industrial environments.
The cable operates at up to 500 volts, supporting a temperature range from -5°C to 70°C. Its flame retardant properties meet IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards, making it suitable for safe indoor use.
The silicon-free construction prevents oil influence, while the low-adhesion PVC outer sheath is specifically adapted to energy chain requirements, enhancing durability in applications involving continuous bending and movement. This cable is well suited for freely suspended travel distances and gliding applications up to 50 meters, classified as Class 2.
Manufactured in Japan, it meets CE and EN quality standards, making it an excellent choice for control wiring in electrical, automation, and industrial power systems. The 4 cores with bare copper conductors provide reliable electrical performance.
The thermoplastic elastomer outer jacket offers flexibility and abrasion resistance. Its flame retardant design enhances safety in challenging environments. The cable’s torsion resistance improves longevity under repetitive motion.
Compatible with energy chains requiring low adhesion cables. Suitable for use in electrical power and industrial cable applications.
This Igus Chainflex CF130.UL control cable is ideal for applications in industrial automation, robotics, manufacturing, and other commercial environments requiring dependable control and signal transmission.
Explore more in our Electronics & Electricals category under Wires & Cables for high-quality Control Cables by Igus and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this control cable is 500V.
This model supports a minimum operating temperature of -5°C and a maximum of 70°C.
The cable features 4 cores with stranded bare copper conductors.
The outside diameter of this control cable is 7mm.
The jacket is made of thermoplastic elastomer, while the outer sheath is a low-adhesion PVC mixture tailored for energy chain requirements.
Yes, the cable is designed with flame retardant properties and conforms to IEC 60332-1-2, FT1, and VW1 standards.
It is suitable for medium load control applications in industrial automation, robotics, and manufacturing environments requiring flexible and torsion-resistant cabling.
The cable length is 10 meters.
This control cable meets CE and EN quality standards, ensuring compliance for safe use in various environments.
The conductors in this cable are rated at 17 AWG.
Yes, it is designed for freely suspended travel distances and gliding applications up to 50 meters.
This cable is manufactured in Japan.
