RS PRO Clamp Meter AC/DC 400 A 600 V True RMS LCD Display CAT III RS380
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Dimensions | 197 mm x 70 mm x 40 mm |
| Temperature Resolution | 1°C |
| Battery type | AAA |
| Height | 230mm |
| Length | 82mm |
| Model | RS380 |
| Gross Weight | 230g |
| Width | 40mm |
| Maximum Operating Temperature | 40°C |
| AC Voltage Resolution | 100V ac |
| Minimum Operating Temperature | 5°C |
| DC Voltage Resolution | 100 V dc |
| Resistance Measurement Accuracy | ±1 % rdg + 4 Digits |
| Temperature Measurement Accuracy | ±(3.0% ±5°C) |
| AC Current Accuracy | ±2.5 % rdg + 5 Digits |
| Resistance Resolution | 100mΩ |
| AC Current Resolution | 10mA |
| Maximum Jaw Opening | 23mm |
| Standards/Approvals | RoHS |
| Maximum Temperature Measurement | 760°C |
| Functions Measured | AC Voltage, Temperature, Diode, Resistance, AC Current, Continuity, DC Voltage |
| Maximum Resistance Measurement | 20mΩ |
| Maximum AC Current Measurement | 400A |
| Maximum DC Voltage Measurement | 600V dc |
| Maximum AC Voltage Measurement | 600V ac |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Maximum Conductor Size | 30mm |
| Clamp Meter Type | AC/DC Clamp Meter |
| RS PRO RS330 Clamp Meter 400 A 600 V dc 600 V ac CAT IIIBrand | RS PRO |
| Amprobe ACD-20SW Clamp Meter, Max Current 400A ac CAT III 600 VBrand | Amprobe |
Key Features
- Measures AC and DC current up to 400 A accurately.
- Capable of AC and DC voltage measurement up to 600 V.
- Features temperature measurement capability up to 760°C.
- True RMS technology for precise measurement.
- Compact jaw opening fits conductors up to 30 mm.
- Includes non-contact voltage detection for safety.
- Equipped with LCD display and data hold function.
- Auto power off and low battery indicator included.
Product Description

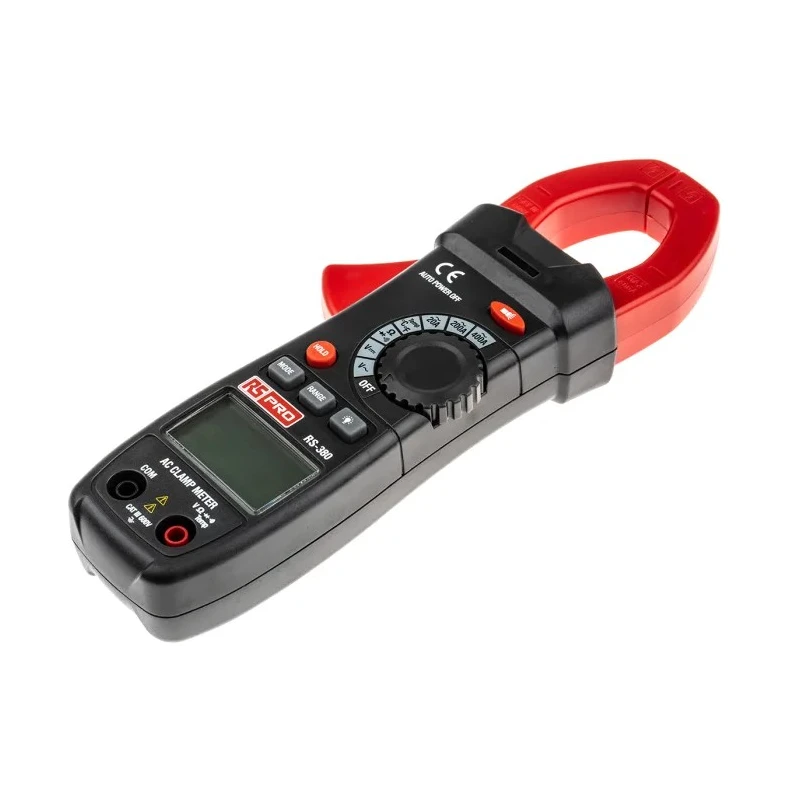

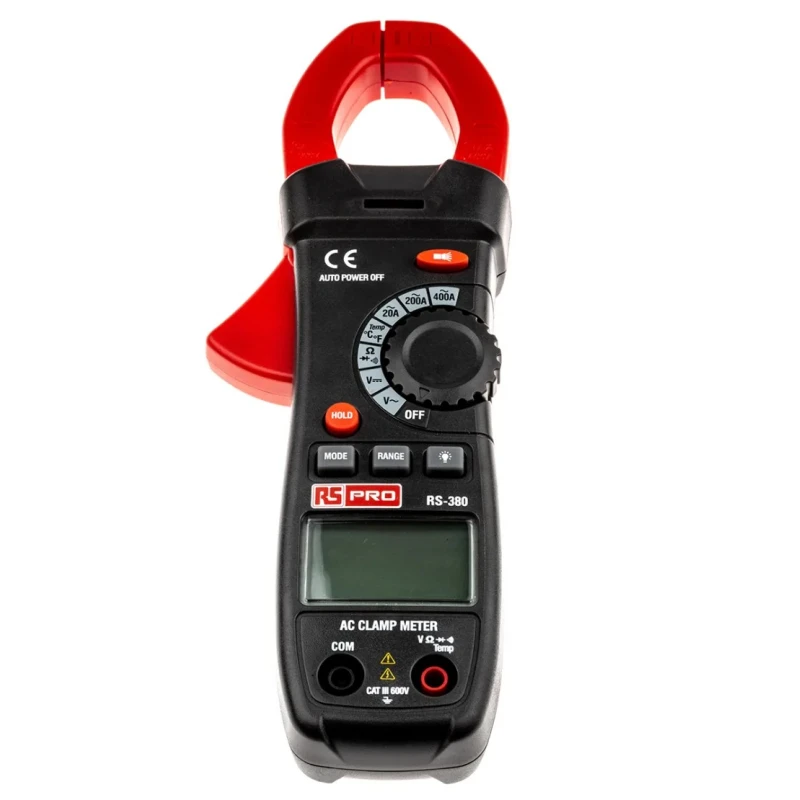

RS PRO RS380 Clamp Meter is a highly versatile AC/DC clamp meter combining precise electrical measurement functions with compact design and enhanced safety features. It supports current measurements up to 400 A AC, voltage measurements up to 600 V AC/DC, and temperature measurements up to 760°C, addressing comprehensive test and measurement requirements in industrial, HVAC, electrical, and laboratory applications.

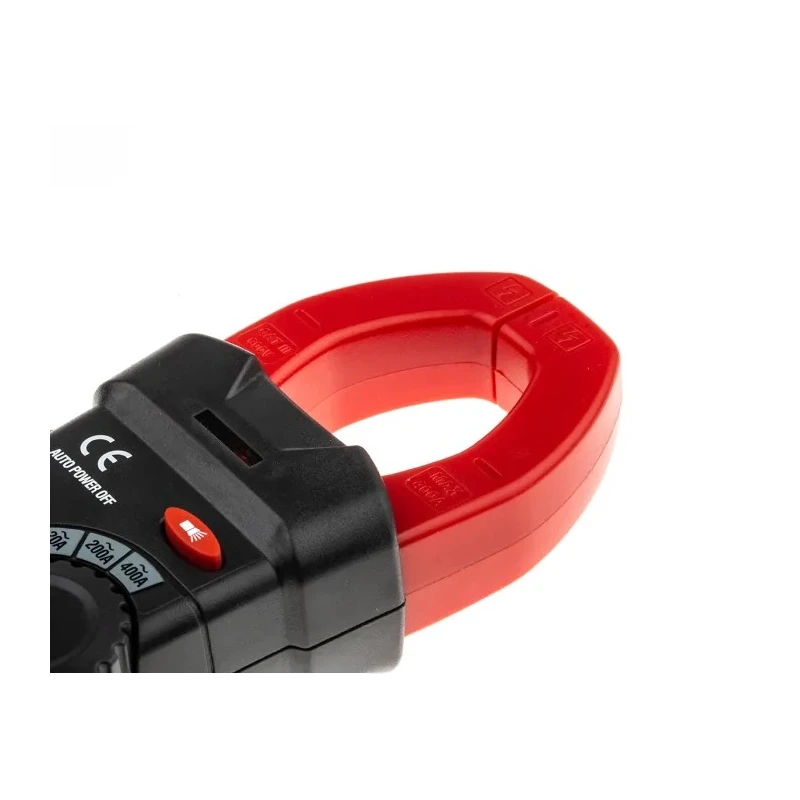

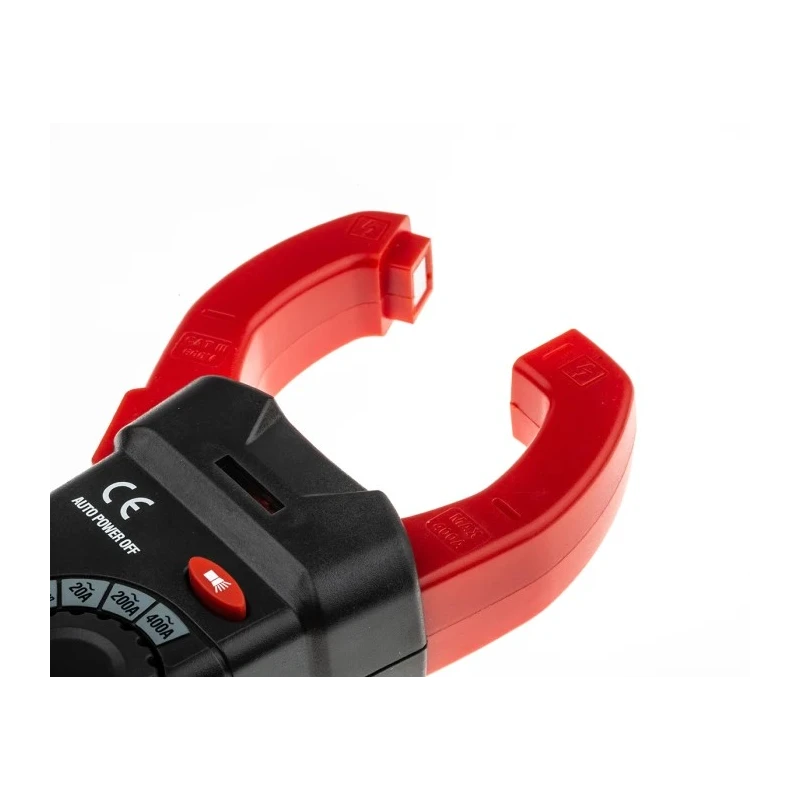

This clamp meter features a true RMS sensing technology that ensures accuracy in AC current and voltage readings, a crucial factor for non-linear loads and distorted waveforms. The clamp jaw opens to a maximum of 23 mm, fitting conductors up to 30 mm in diameter, making it ideal for various wiring and cable sizes. The device meets CAT III 600 V safety standards, providing reliable protection in industrial environments.
Additional functions include resistance measurement, continuity and diode testing, and a non-contact voltage detector for enhanced user safety. The inclusion of an LCD display with a hold function, auto power off, and low battery indicator further improves user experience.

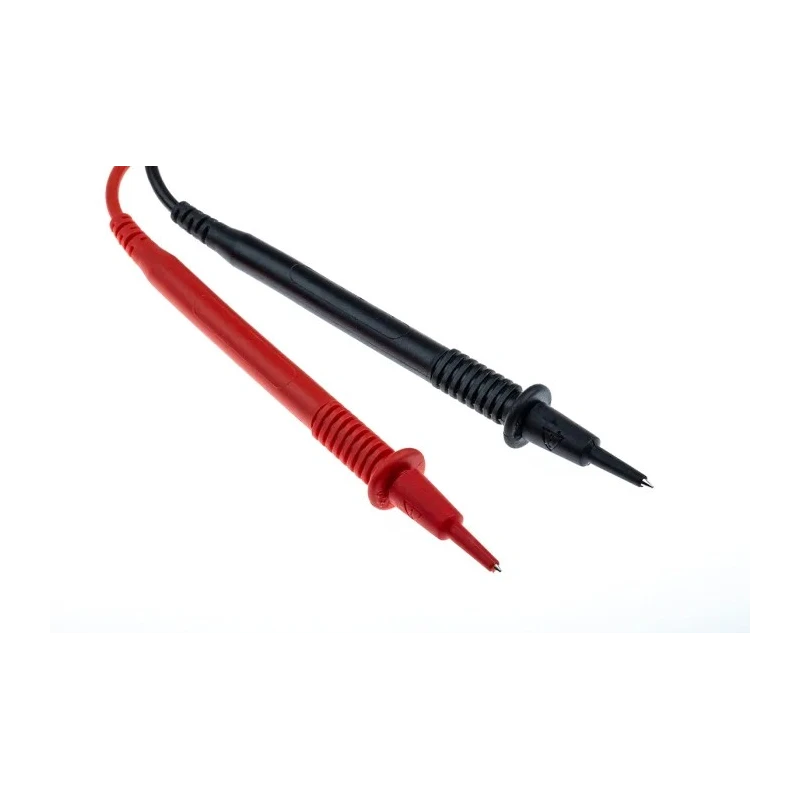

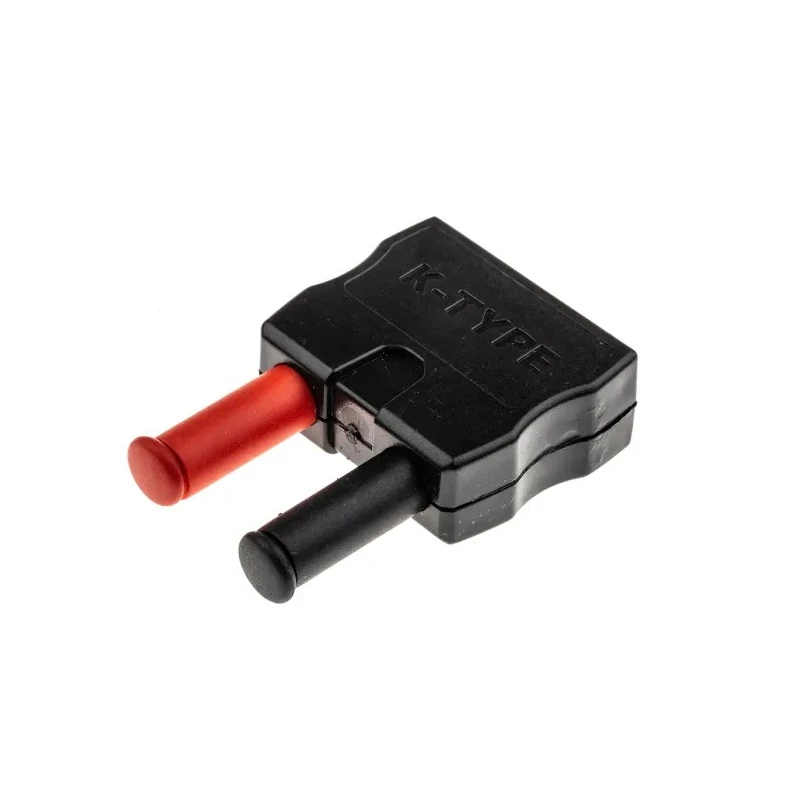

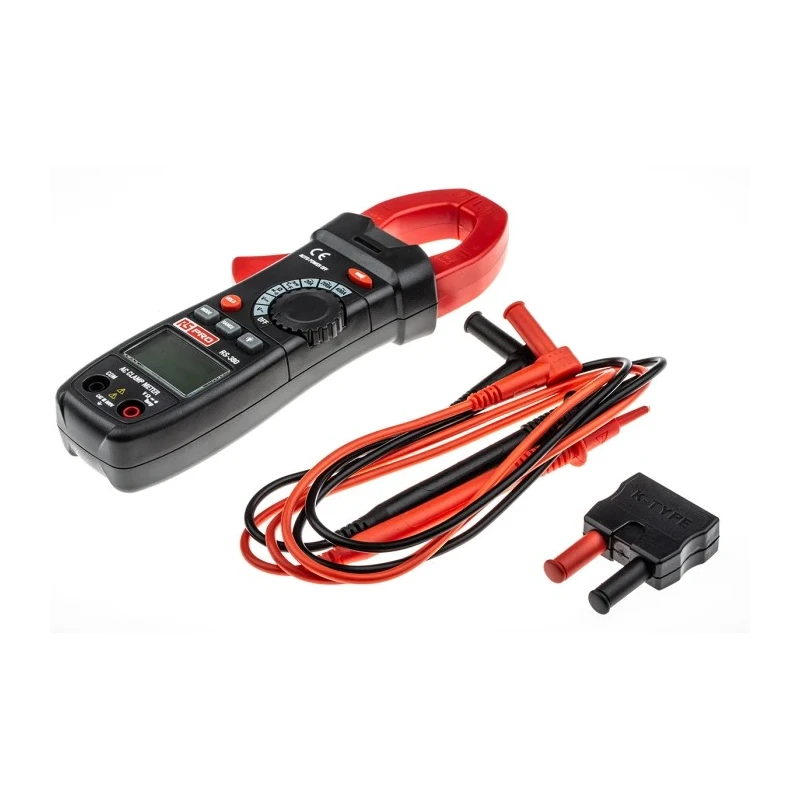

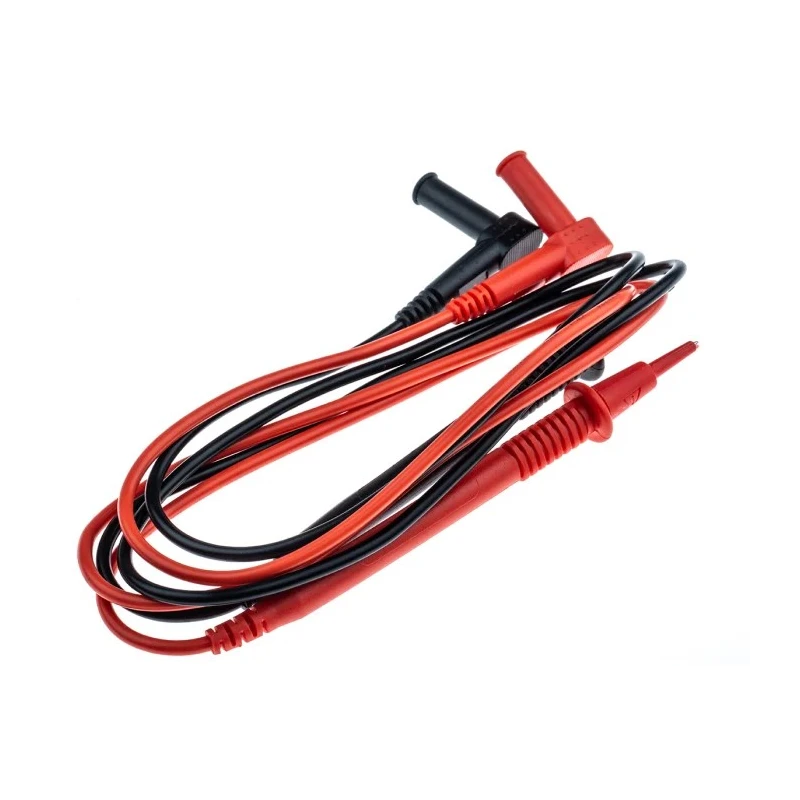

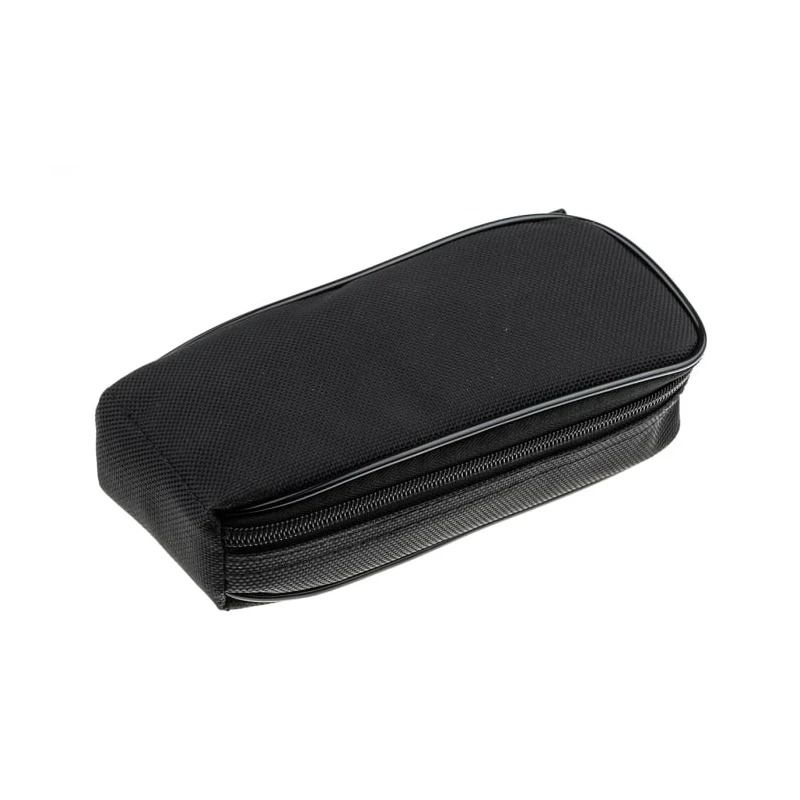

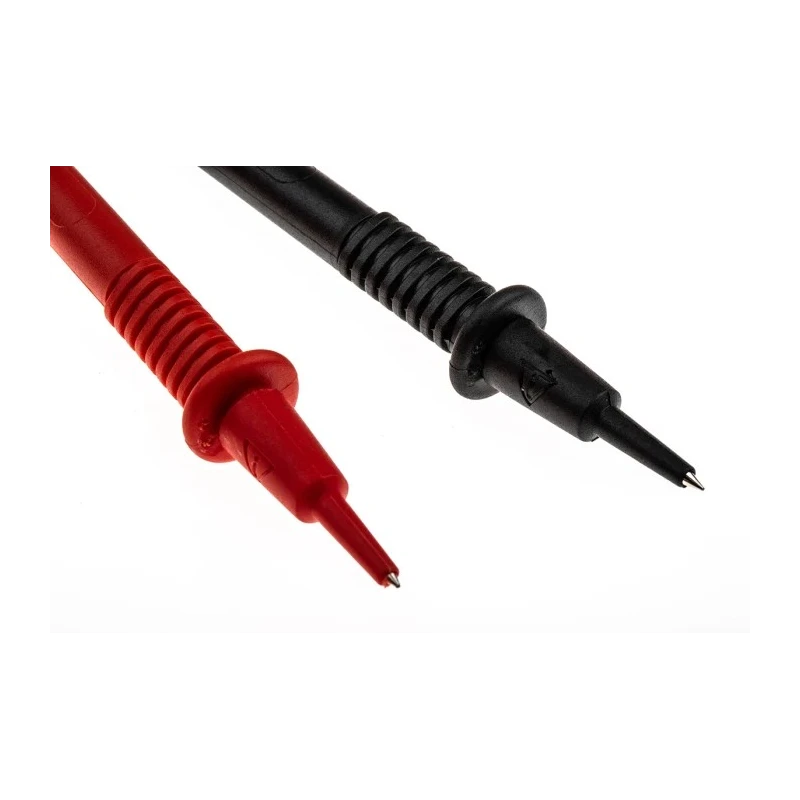

Supplied as a complete kit, the RS380 includes test leads, a temperature probe, a carrying case, and two AAA batteries, enabling immediate deployment in field or laboratory settings. Its compact dimensions (197 mm x 70 mm x 40 mm) and lightweight design (230 g) facilitate easy handling and portability.
Applications for the RS PRO RS380 encompass electrical maintenance, fault diagnosis, HVAC system inspection, and laboratory testing, making it a valuable instrument for professionals requiring reliable and multi-functional test equipment.
Measures AC and DC current up to 400 A accurately. Capable of AC and DC voltage measurement up to 600 V. Features temperature measurement capability up to 760°C. True RMS technology for precise measurement. Compact jaw opening fits conductors up to 30 mm.
Includes non-contact voltage detection for safety. Equipped with LCD display and data hold function. Auto power off and low battery indicator included. Complete kit with test leads, temperature probe, carrying case, and batteries.
Explore more industrial-grade Clamp Meters and test instruments in the EnvMart Measuring & Testing Instruments category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This clamp meter can measure AC and DC current up to 400 A.
It can measure AC and DC voltage up to 600 V.
The temperature measurement capability of this model is up to 760°C.
The clamp jaw opens to a maximum of 23 mm, accommodating conductors up to 30 mm in diameter.
It can measure AC voltage, DC voltage, temperature, diode, resistance, AC current, and continuity.
The accuracy for AC current measurements is ±2.5 % reading plus 5 digits.
The dimensions are 197 mm x 70 mm x 40 mm, and it weighs 230 g.
It features an LCD display for clear visibility of measurements.
Yes, it includes a non-contact voltage detector for enhanced user safety.
It uses two AAA batteries for operation.
It meets CAT III 600 V safety standards, suitable for industrial environments.
The complete kit includes test leads, a temperature probe, a carrying case, and two AAA batteries.
