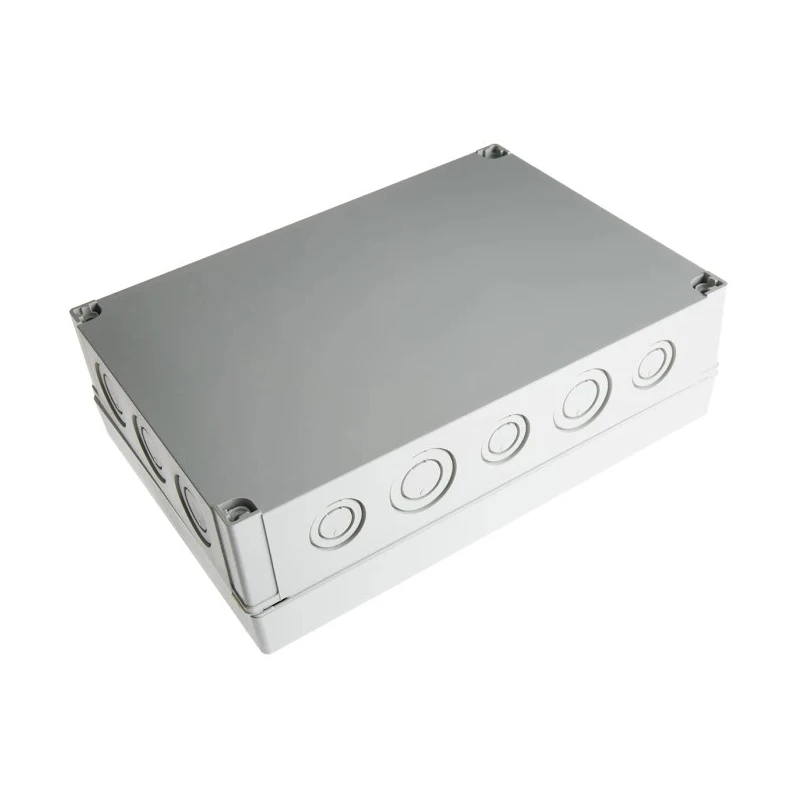

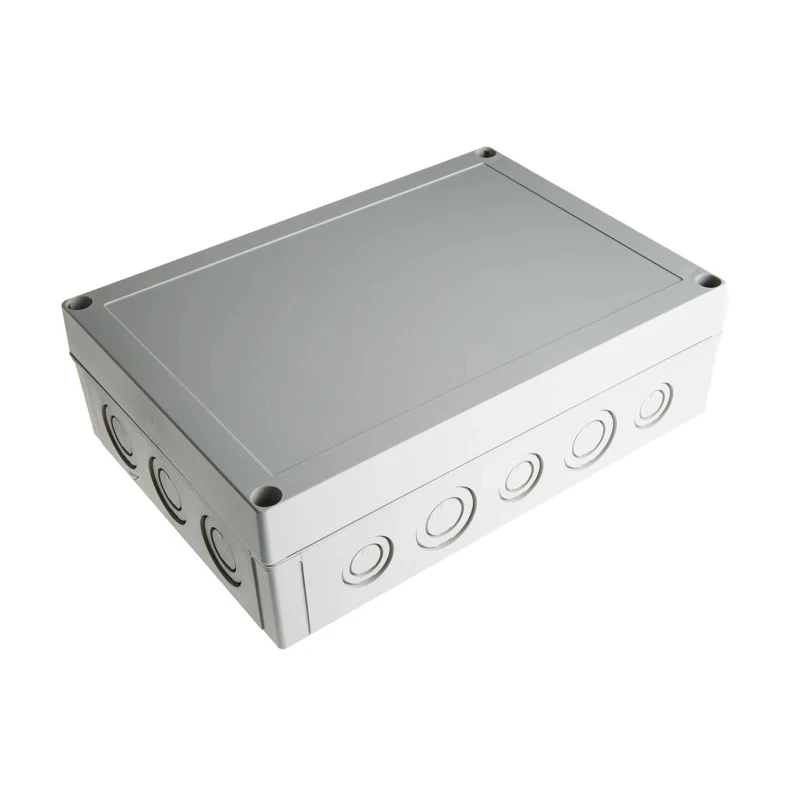

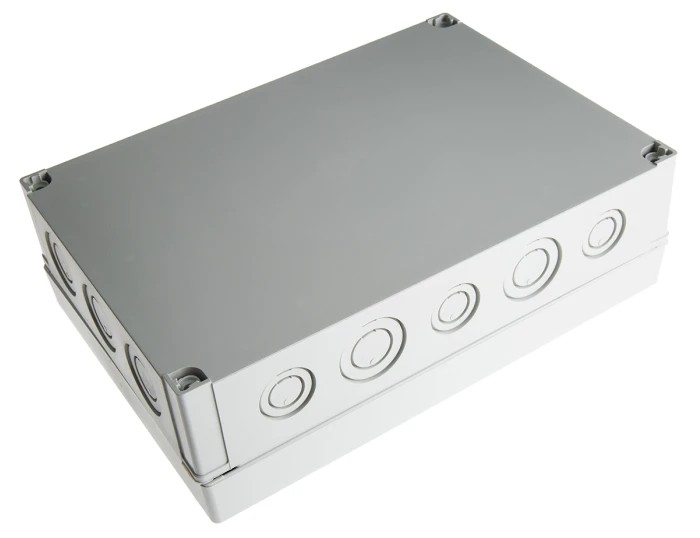

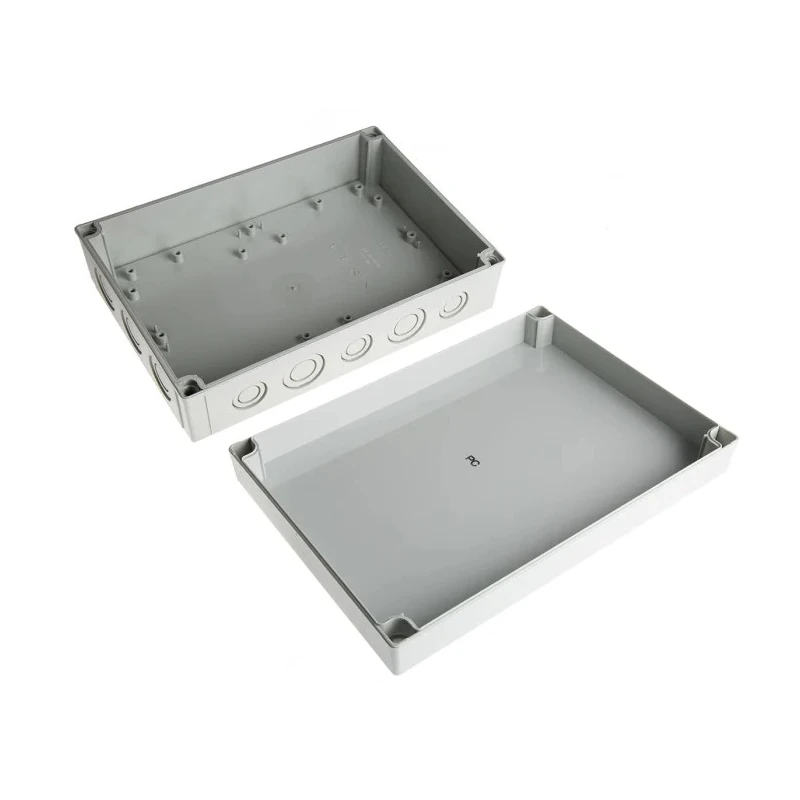

Fibox Polycarbonate Enclosure Grey Lid IP66, IP67, IK08, 75 mm x 255 mm x 180 mm

Fibox PCM 200/75 G ENCLOSURE is a high-quality polycarbonate enclosure designed for protecting electronic and electrical components in industrial, commercial, and outdoor environments. It features a robust body with a grey lid, providing ingress protection ratings of IP66 and IP67 alongside IK08 impact resistance, ensuring excellent durability against water, dust, and mechanical impacts.

The enclosure measures 75 mm in height, 255 mm in length, and 180 mm in width, offering an optimal internal volume suitable for various electrical and instrumentation uses. Its polycarbonate construction provides a lightweight yet sturdy housing resistant to oils, acids, and harsh environments.

This model is equipped with a PUR/TPE rubber gasket that enhances sealing against environmental factors. Captive polyamide screws secure the lid, facilitating easy opening and closing while maintaining protection integrity. The enclosure also boasts a flame resistance rating of UL94-V5 and is self-extinguishing, which is critical for safety in electrical installations.

Its temperature range of -40 to +80 degrees Celsius, with short term tolerance up to +120 degrees Celsius, makes it suitable for diverse climatic conditions. The enclosure is fitted with metric knockouts for flexible cable entries, easing installation processes.

Typical applications include test and measurement instrumentation, medical tools, transportation equipment, industrial control units, and lighting applications, highlighting its versatility in demanding electrical and electronic environments.

Constructed from polycarbonate material ensuring strong and lightweight housing. Dimensions of 75 mm height, 255 mm length, and 180 mm width provide ample space for electrical components. Equipped with a grey lid and PUR/TPE rubber gasket resistant to oil, water, and acid.

Lids secured with captive polyamide screws for secure and easy assembly. Flame resistance rated UL94-V5 and self-extinguishing for enhanced safety. Resistant to temperature ranges from -40°C to +80°C, with short-term tolerance up to +120°C.

Includes metric knockouts for convenient cable entry and installation flexibility. Ideal for protecting industrial controls, lighting applications, transportation equipment, and medical tools. Supplied complete with TPE gasket, mounting plate/DIN rail screws, and cover screws for the lid.

This enclosure is manufactured in Finland, ensuring high standards of quality and durability. It is an excellent choice for professionals seeking reliable protection for sensitive electrical installations. Browse the EnvMart catalog for more Fibox enclosures and accessories.
