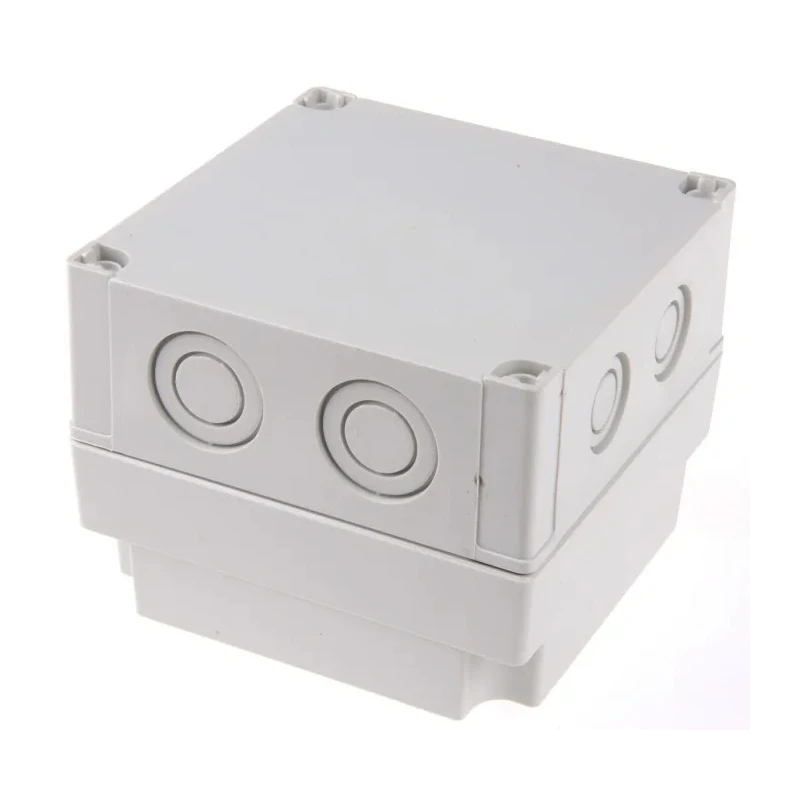

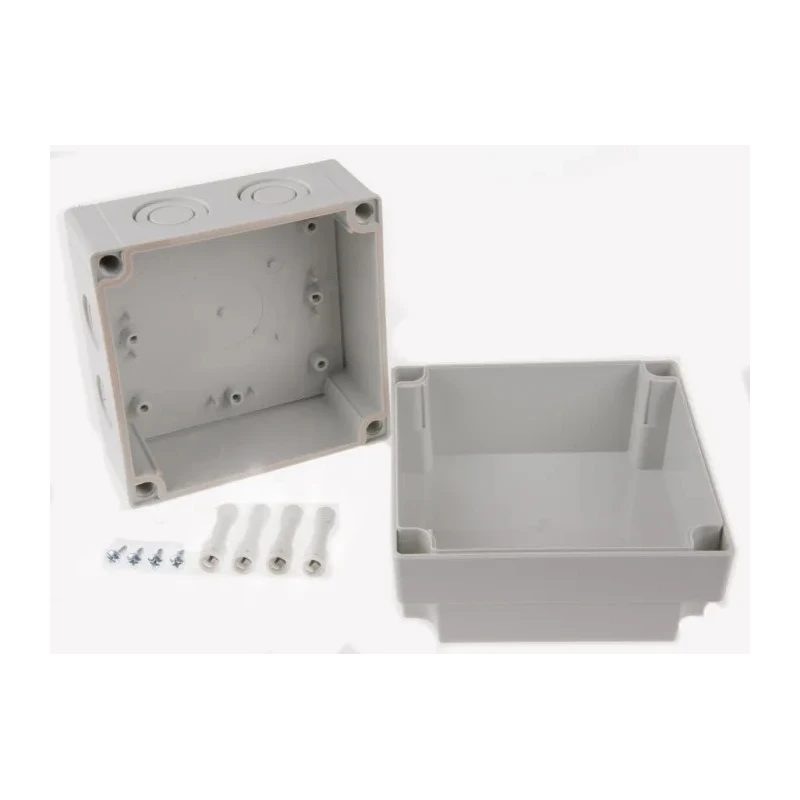

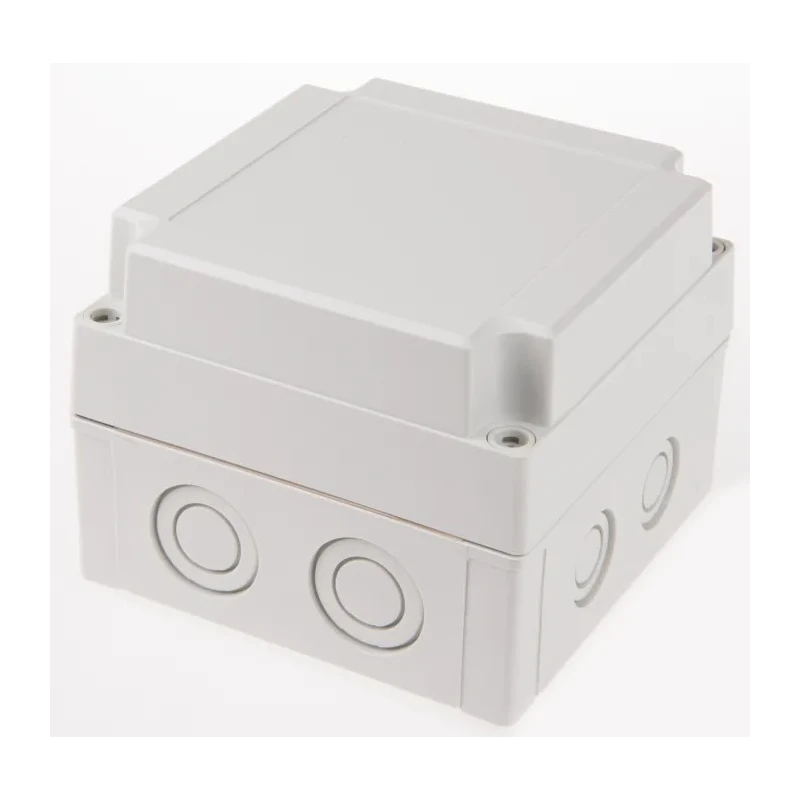

Fibox Polycarbonate Grey Lid General Purpose Enclosure IP67 IP66 IK08 100 mm x 130 mm x 130 mm

Fibox brand polycarbonate general purpose enclosure model PCM 125/100 G ENCLOSURE offers advanced protection and versatility in electrical component housing. The enclosure body, inclusive of a grey lid, is made from durable polycarbonate material with a light grey RAL7035 finish, guaranteeing long-lasting physical strength and aesthetic consistency.

This enclosure provides superior ingress protection compliant with IP67 and IP66 standards, ensuring resistance against dust and water ingress. Additionally, it possesses an IK08 mechanical impact rating, making it well-suited for demanding industrial applications.

The enclosure is equipped with a thermoplastic elastomer (TPE) gasket that resists oil, water, and acids, enhancing its protective capabilities. Captive polyamide screws secure the lid, providing reliable assembly and disassembly without loss of fasteners.

Flame resistance is certified to UL94-V0, and the enclosure is self-extinguishing to improve safety in hazardous environments. The operational temperature range spans from -40°C to +80°C, with short-term exposure tolerance up to +120°C, making it suitable for diverse environmental conditions.

Metric knockouts are provided to facilitate cable entry and simplify installation processes. This enclosure is widely applicable across multiple industrial sectors, including test and measurement instrumentation, medical devices, transportation equipment, industrial control systems, and lighting applications.

Constructed from durable polycarbonate material for high resistance and longevity. Designed with a grey lid and body, providing a uniform RAL7035 color finish. Features ingress protection rating IP67 and IP66, suitable for indoor and outdoor use.

Equipped with IK08 impact rating ensuring resistance against mechanical impacts. Includes thermoplastic elastomer (TPE) gasket that resists oil, water, and acids. Lid secured by captive polyamide screws for enhanced durability and security.

Lid and enclosure provide flame resistance rated UL94-V0 and self-extinguishing properties. Temperature resistance ranges from -40°C up to +80°C, with short-term tolerance to +120°C. Fitted with metric knockouts for easy cable entry and installation versatility.

Suitable for industrial, laboratory, medical, transportation, and lighting applications.

This Fibox enclosure PCM 125/100 G ENCLOSURE combines robust engineering and versatile features to provide secure, protective housing for sensitive electrical and electronic components. Explore our full range of electrical enclosures and components at EnvMart.
