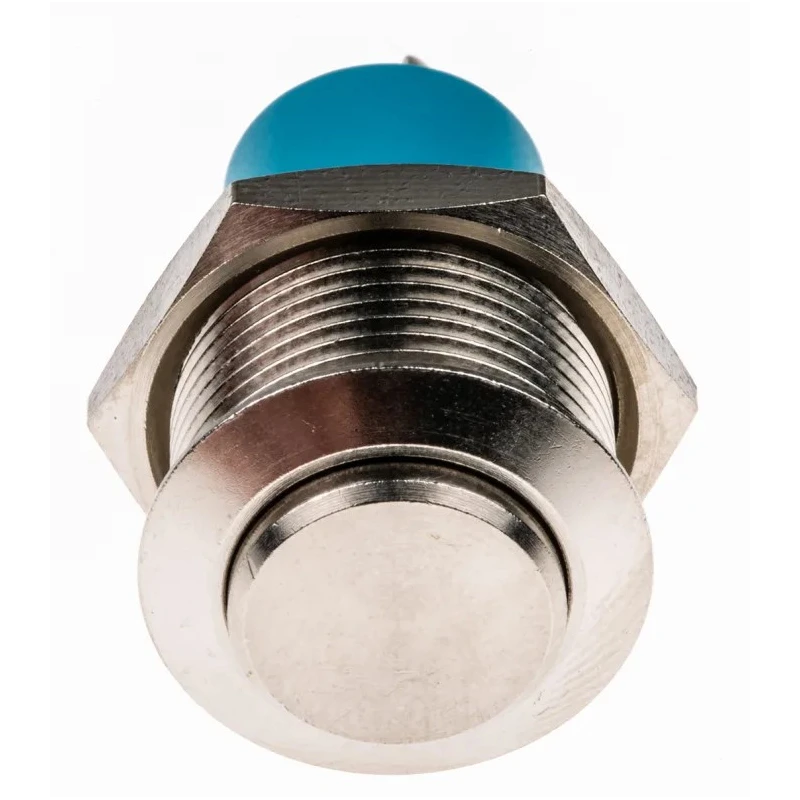

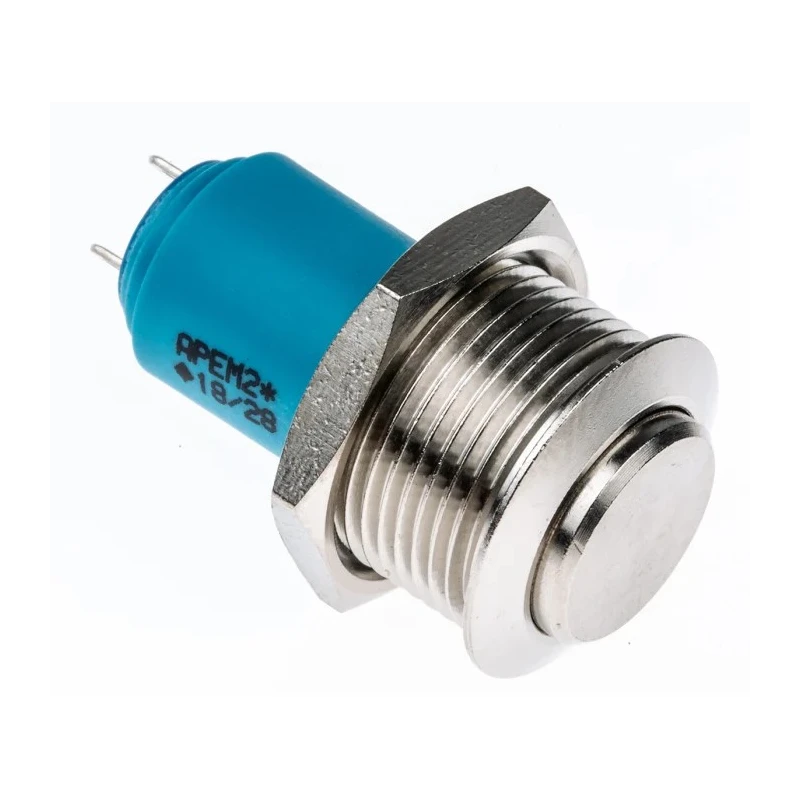

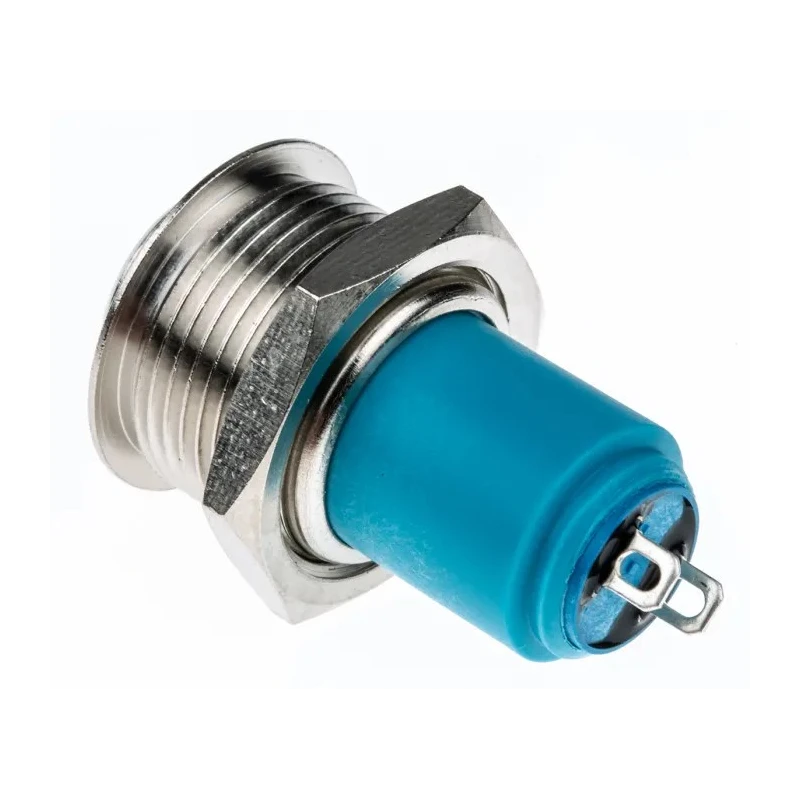

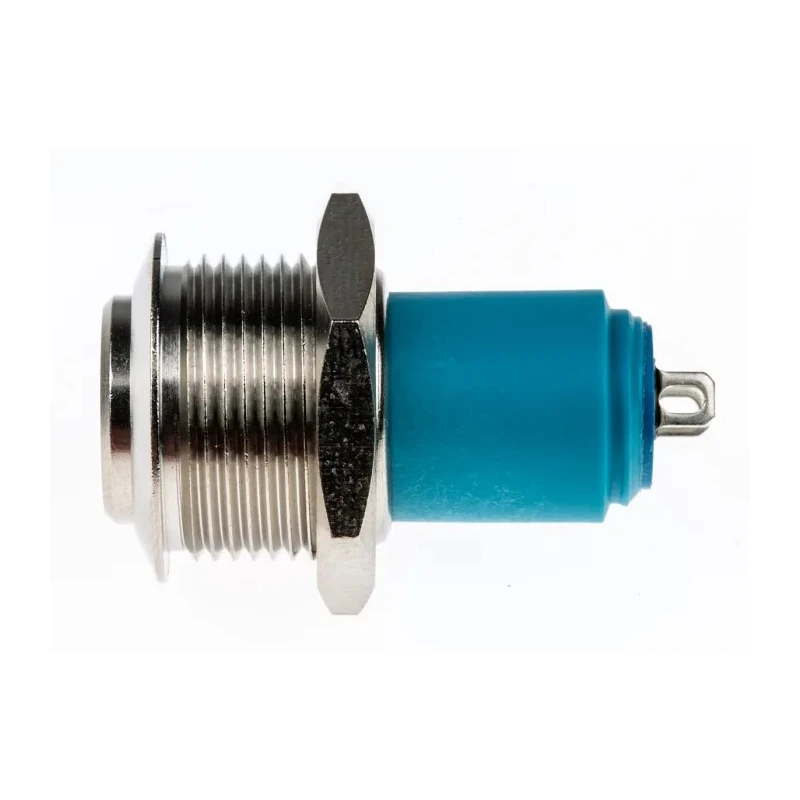

APEM AV Series Push Button Switch, Latching, Through Hole, 16.2 mm Cutout, SPST, IP65, 24 V dc 250 V ac AV0611A200

APEM AV0611A200 Push Button Switch is a high-quality anti-vandal switch designed for industrial, electrical, and automation applications. It operates via a latching ON/OFF mechanism with a single pole, single throw (SPST) contact configuration. This switch is constructed for through-hole mounting and features a rugged nickel plated brass bushing and actuator, providing excellent mechanical durability and resistance to corrosion. The actuator color is silver, styled as a flat 16 mm button, offering ease of operation and clear indication in control panels. The panel cutout required for fitting is precisely 16.2 mm.

With an ingress protection rating of IP65, the switch is protected from dust and low-pressure water jets, making it suitable for outdoor or harsh industrial environments. It supports a contact current of 1 ampere and can safely switch voltages of up to 24 V dc and 250 V ac, accommodating a wide range of control circuits. The operating temperature range of -30°C to 70°C further ensures reliable performance in varied ambient conditions.

The AV0611A200 model offers an impressive electrical life rating of 40,000 cycles and a mechanical life rating of 200,000 cycles, ensuring long-term durability for complex and demanding operation schedules. Gold-plated silver contacts deliver excellent conductivity and reduced oxidation, guaranteeing dependable electrical connections throughout the switch's life. It complies with the RoHS directive, emphasizing environmentally safe manufacturing and usage.

The switch uses a robust anti-vandal design to prevent damage from external impacts and jamming. Its latching action allows the switch to maintain its ON or OFF position until reset, useful in manual control applications.

Nylon or metal panel mounting options can be implemented due to its through-hole design. The flat button actuator provides a tactile and user-friendly interface for operators. Designed for industrial control panels, HVAC systems, automated machinery, and electrical enclosures.

In summary, the APEM AV0611A200 Push Button Switch is engineered for reliability, robustness, and precision in a compact, easy-to-install package. Its versatile electrical ratings and environmental protections make it suitable for various industrial, laboratory, manufacturing, and commercial automation tasks. Explore more Push Button Switches and related accessories in the EnvMart catalog to find the optimal control components for your applications.
