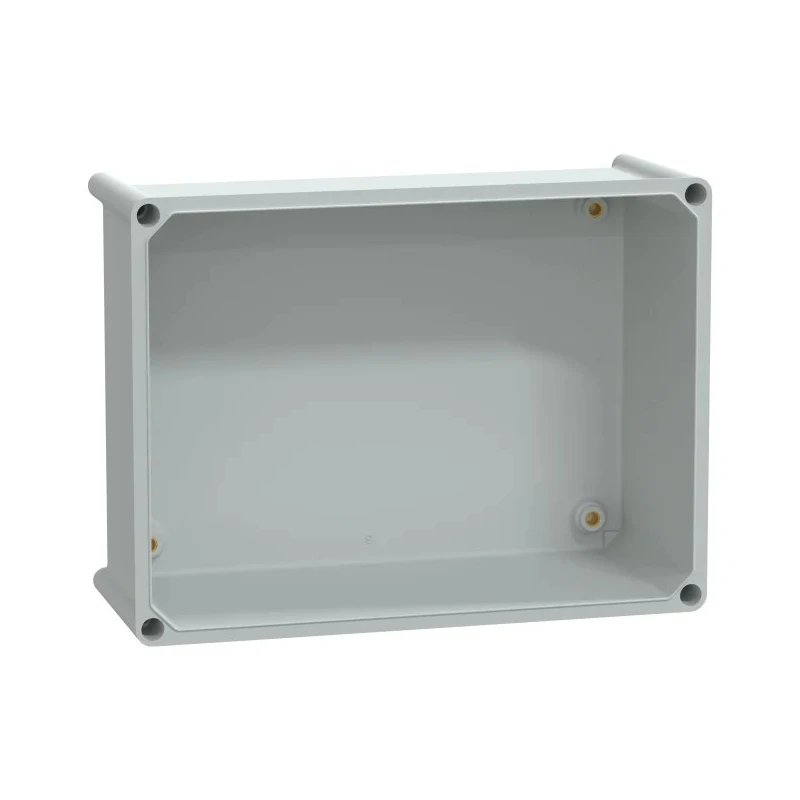

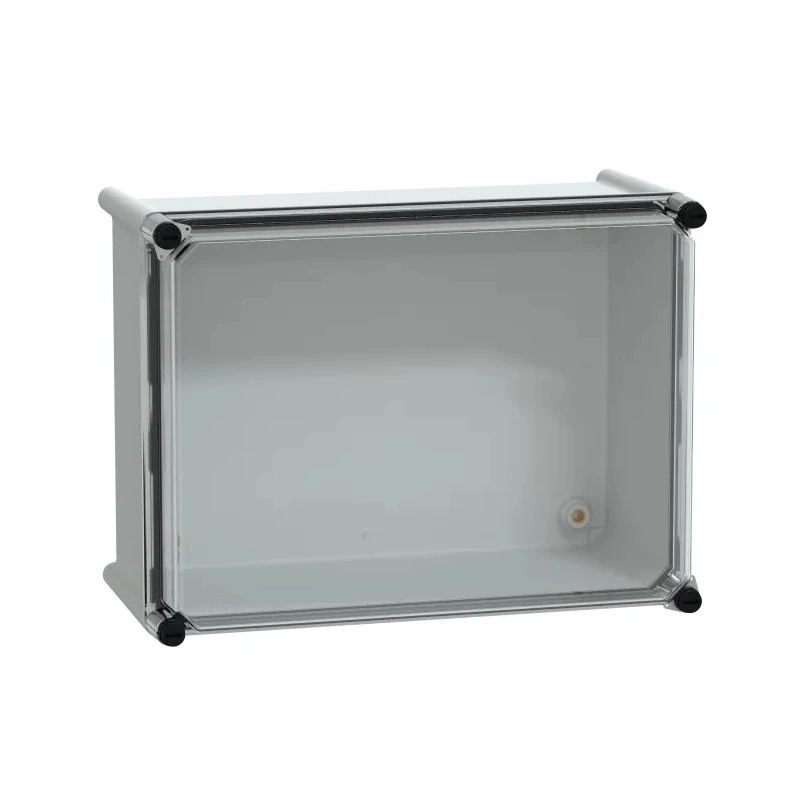

Schneider Electric PanelSeT Series Grey Transparent Lid Fibreglass Reinforced Polyester Enclosure IP65 IK09 NSYPLS2736G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Fibreglass Reinforced Polyester |
| Model | NSYPLS2736G |
| IP Rating | IP65 |
| Series | PanelSeT |
| External Width | 360mm |
| External Height | 270mm |
| Standards/Approvals | IEC 62208/UL |
| External Length | 180mm |
| Lid Colour | Transparent |
| IK Rating | IK09 |
Key Features
- Constructed from fibreglass reinforced polyester body for enhanced durability.
- Equipped with a high transparency polycarbonate lid with grey RAL 7035 colour.
- Rated IP65 and IK09 for excellent dust, water, and impact resistance.
- Insulating modular box suited for wall mounting with removable cover and slot screw locking.
- Certified to IEC 62208 and UL standards ensuring safety and performance.
- Fire resistant up to 960°C providing added protection in harsh environments.
- Suitable for indoor or outdoor industrial and electrical applications.
- Includes enclosure body, polycarbonate cover, and locking screws.
Product Description
Schneider Electric NSYPLS2736G PanelSeT Series is a high-quality fibreglass reinforced polyester general purpose enclosure with a transparent polycarbonate lid. The enclosure measures 270 mm in height, 360 mm in width, and 180 mm in length, making it suitable for wall-mounted applications requiring robust protection.
The one-piece moulded body ensures solid insulation and mechanical strength, with a high transparent cover secured by removable locking screws. The enclosure is designed for Class II insulation applications and conforms to IEC standards IEC 62208 and UL certifications. The IP65 rating guarantees dust-tight and water-resistant performance, while the IK09 rating ensures protection against mechanical impacts.
Fire resistance up to 960°C adds a vital safety feature for industrial and electrical uses in harsh environments. The enclosure is also halogen-free, contributing to environmental safety and longevity without requiring maintenance. It can be connected horizontally or vertically to configure multi-box arrangements.
This product includes one enclosure body, a polycarbonate cover, and the necessary locking screws for installation. The grey RAL 7035 colour and transparent lid enhance usability in diverse industrial, laboratory, HVAC, electrical distribution control, and manufacturing settings.
Durable fibreglass reinforced polyester body and polycarbonate cover. IP65 and IK09 rated enclosure for excellent protection. Fire resistant to 960°C for enhanced safety. Wall mountable with easy removable locking screw cover.
Conforms to IEC 62208 and UL standards. Suitable for industrial, electrical, and outdoor applications. Halogen free and low electrical contact risk design. Includes enclosure, transparent polycarbonate lid, and locking screws.
Explore the Schneider Electric range and other electrical enclosure solutions on EnvMart for professional grade industrial products.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 270 mm in height, 360 mm in width, and 180 mm in length.
It has an IP65 rating, ensuring it is dust-tight and water-resistant.
The body is constructed from fibreglass reinforced polyester, providing enhanced durability.
This model has an IK09 rating, which indicates protection against mechanical impacts.
Yes, it is suitable for both indoor and outdoor industrial and electrical applications.
It conforms to IEC 62208 and UL standards, ensuring safety and performance.
The enclosure features removable locking screws for securing the polycarbonate cover.
It is fire resistant up to 960°C, providing added protection in harsh environments.
The lid is transparent, while the body is grey, specifically in RAL 7035 color.
Yes, it is designed for wall mounting with a removable cover.
The product includes the enclosure body, a polycarbonate cover, and the necessary locking screws for installation.
It is suitable for diverse applications including industrial, laboratory, HVAC, electrical distribution control, and manufacturing settings.
