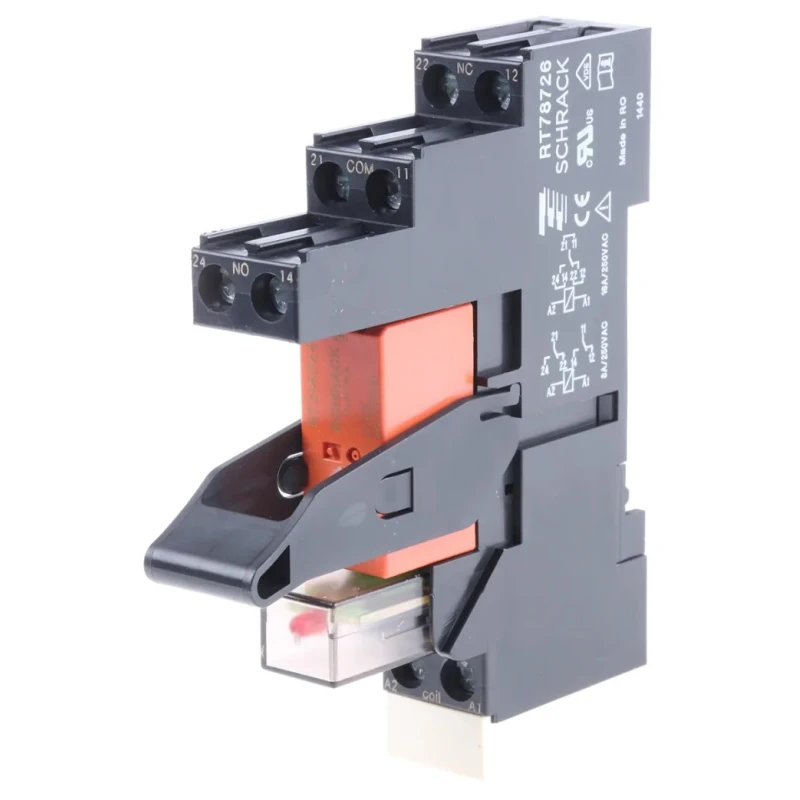

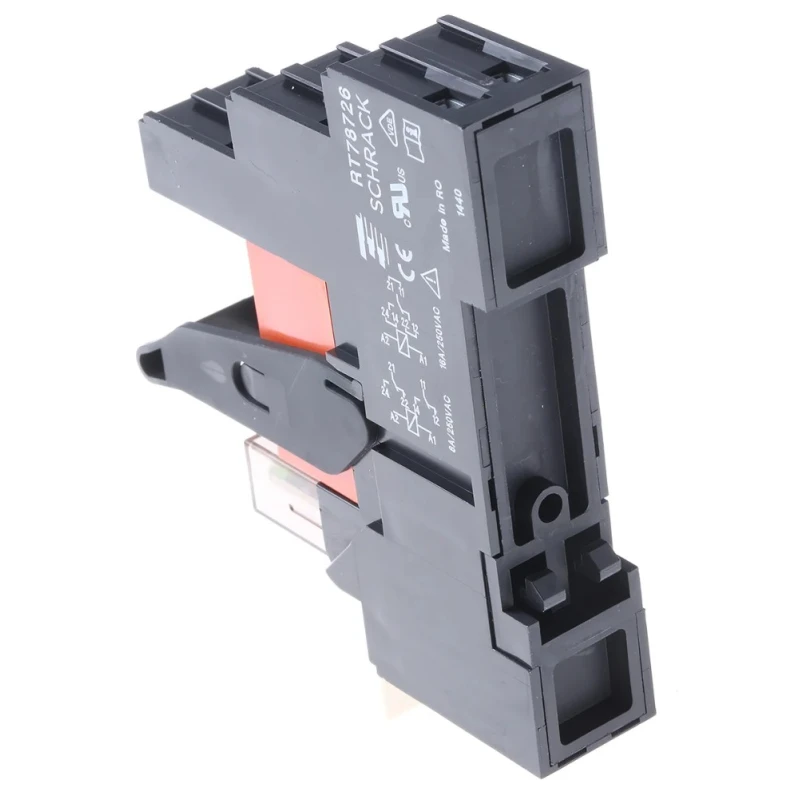

TE Connectivity RT Series Interface Relay DIN Rail Mount 24V dc Coil SPDT Contact Configuration RT3S4LC4 4-1415073-1

TE Connectivity RT3S4LC4 4-1415073-1 is a DIN Rail mounted Electromechanical Interface Relay featuring a 24V dc coil and a single-pole double-throw (SPDT) contact configuration. This interface relay is designed for robust industrial, automation, and electrical applications where reliable signal switching is critical.

The relay coil has a resistance of 1440Ω, drawing a coil current of 16.67mA to activate the switching mechanism. It supports a switching current of up to 16A and is capable of switching both DC voltage at 24V and AC voltage at 240V, making it versatile across various electrical systems.

With silver alloy contact material, the relay ensures high conductivity and durability during operations. The unit is compactly designed with dimensions of 69mm height, 77mm length, and 15.8mm width, optimized for standard DIN rail mounting and easy integration into control panels.

The relay operates reliably across a wide temperature range from -20°C to 85°C, suitable for demanding industrial environments. It features screw-type terminals for secure and trustworthy electrical connections.

TE Connectivity interface relays are fully assembled modules that can be mounted on DIN rails or chassis. This model complies with internationally recognized standards such as VDE and UL, ensuring safety and quality. The mechanical life expectancy is 30 million operations for DC versions and 10 million operations for AC versions, providing long-term reliability.

Equipped with a coil resistance of 1440Ω for efficient operation. Supports a switching current of 16A compatible with industrial applications. Designed for use within operating temperatures from -20°C to 85°C for durability.

Features silver alloy contact material to ensure good conductivity and longevity. Compact dimensions: 69mm height, 77mm length, and 15.8mm width suitable for DIN rail mounting. Includes screw terminal type for secure electrical connections.

Complies with VDE and UL standards for safety and quality assurance.

This interface relay is ideal for electrical, industrial automation, manufacturing, HVAC, and control panel applications. It offers robust switching performance in diverse settings requiring high reliability and safety.
