Schneider Electric Connector TeSys U Series Connector for Use with Motor LU9MRC

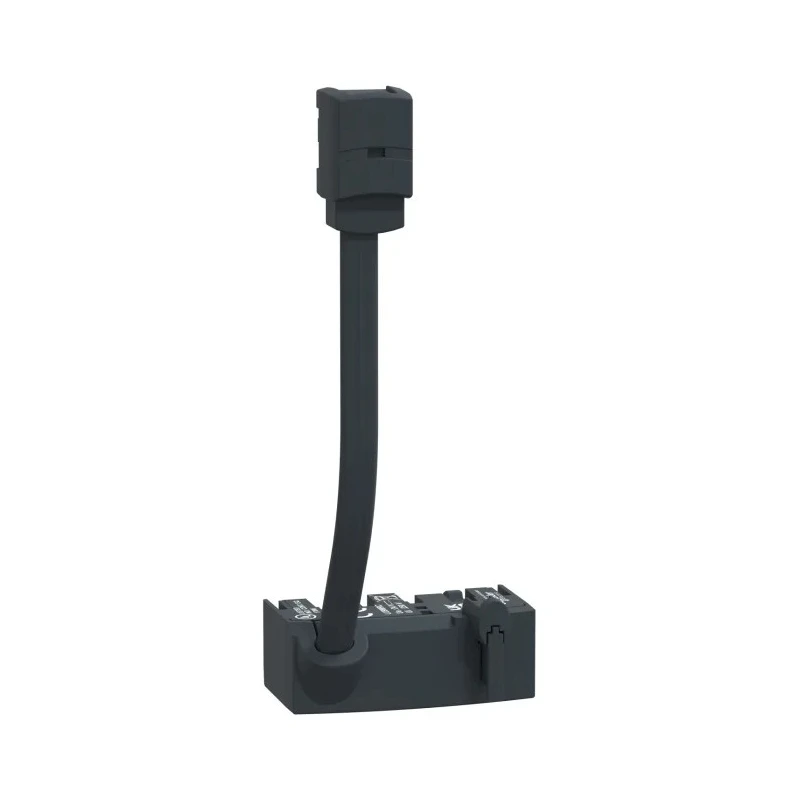

Schneider Electric LU9MRC Connector, part of the TeSys U Series, is a high-quality modular connector designed specifically for motor control applications. This connector interfaces seamlessly with motors and is used with Power Bases in pre-wired setups. Intended for reliable operation in industrial and commercial environments, it supports reversing starters when used with an LUM6M reverser block mounted separately.

The connector installs in the lower area of the Power Base, allowing space-efficient assembly and maintenance. It also enables the incorporation of emergency stop controls or voltage interface, enhancing safety during motor operation.

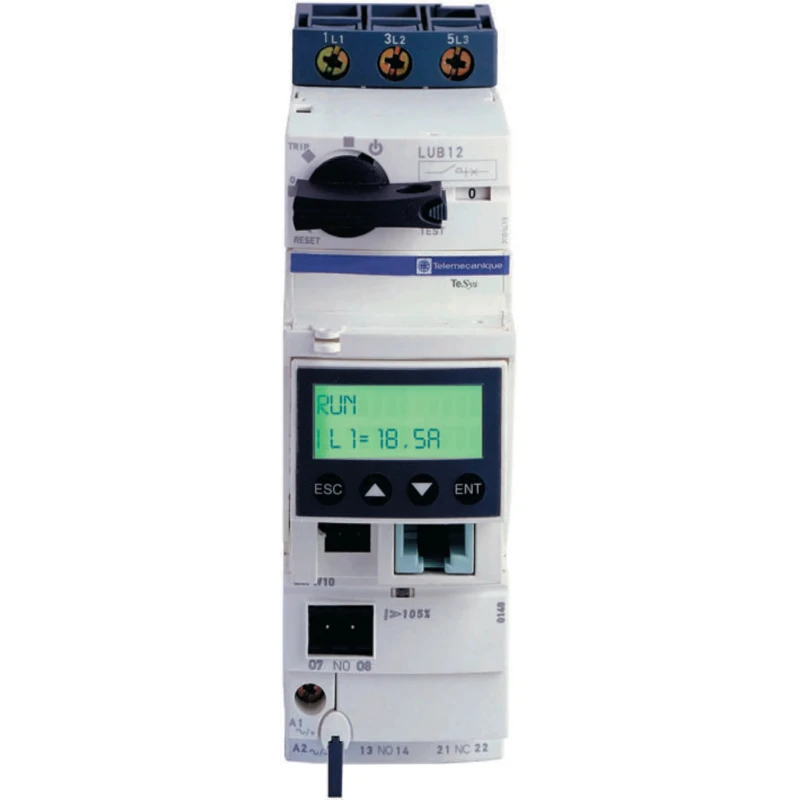

TeSys U is a modular motor control system that allows users to customize configurations with plug-in modules, enabling assembly and wiring before final selection of protection parameters or voltages. This modularity accelerates design, reduces component count, and saves panel space with its compact 45mm width capable of handling currents up to 32A, including reversing functionality.

The system offers broad electronic control with improved overload protection and minimal parts. Its diagnostics can be expanded and used plug-and-play to facilitate quick troubleshooting and reduce downtime.

This connector is compatible with LU9 type blocks and includes auxiliary contacts in the Power Base. It is ideal for industrial automation, manufacturing, HVAC systems, water treatment, and other applications requiring reliable motor control accessories.

Compatible with Power Bases in pre-wired motor control applications. Suitable for reversing starters using an LUM6M reverser block for separate mounting. Fits into the lower area of a Power Base, facilitating efficient installation.

Allows insertion of emergency stop control or voltage interface for enhanced safety. Part of the modular TeSys U system enabling customized motor control solutions. Supports faster design and assembly with plug-and-play modules.

Compact 45mm width suitable for up to 32A, even for reversing applications. Flexible and upgradeable system with plug-and-play function modules. Broadband electronic control unit provides improved overload protection with minimal components.

Expandable diagnostics support ensures quick fault resolution and return to service. Explore the range of Schneider Electric automation and control gear products to find compatible accessories and modules for your motor control setups at EnvMart.
