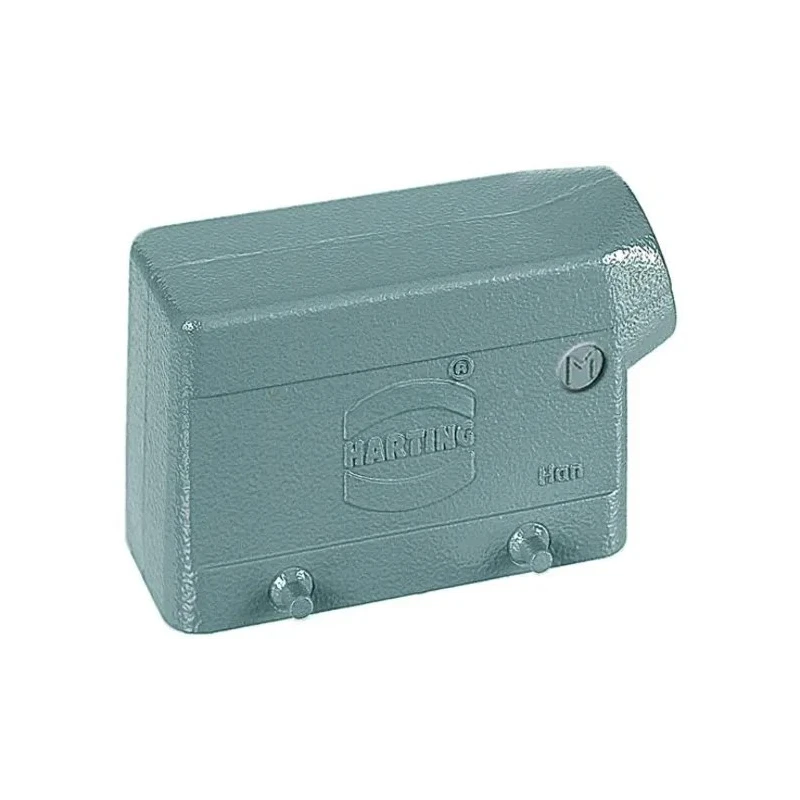

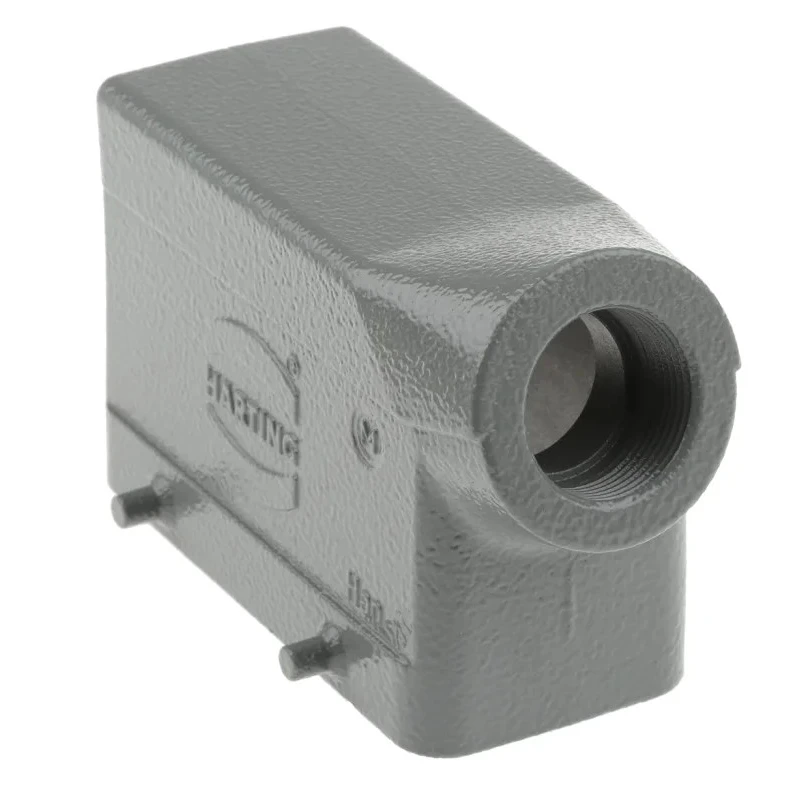

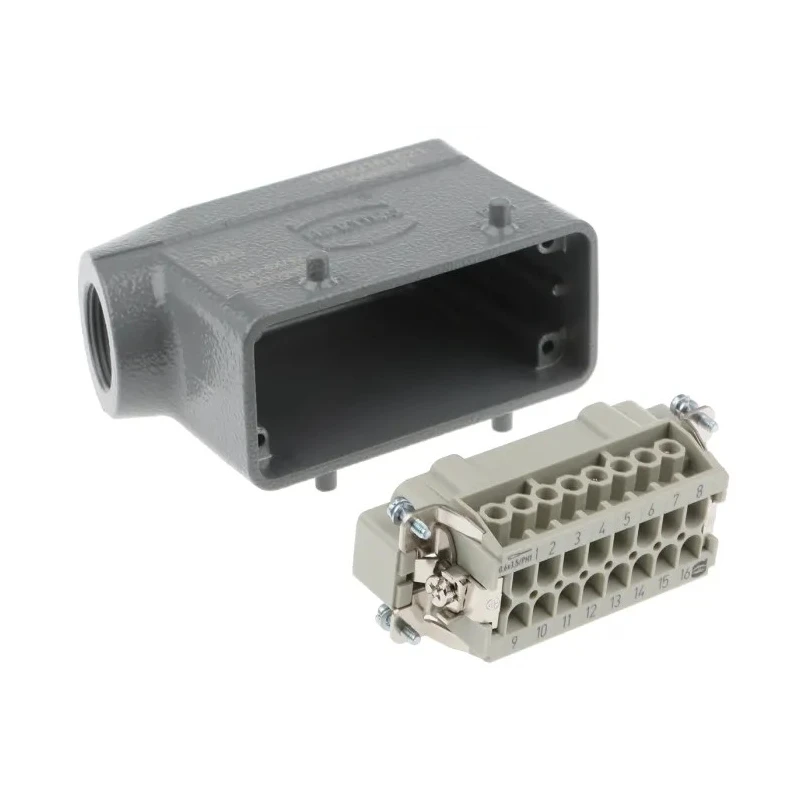

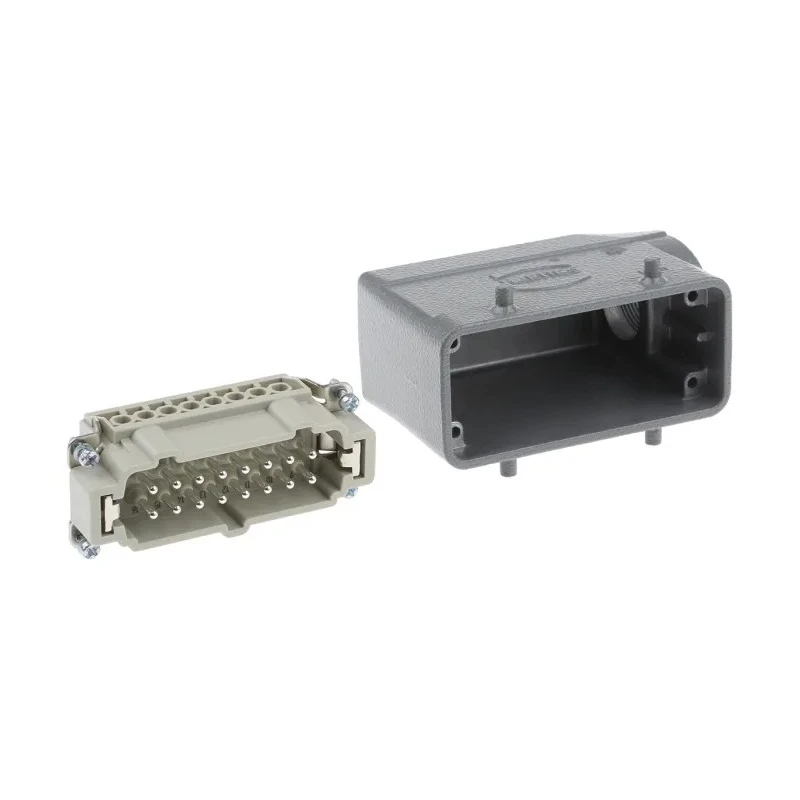

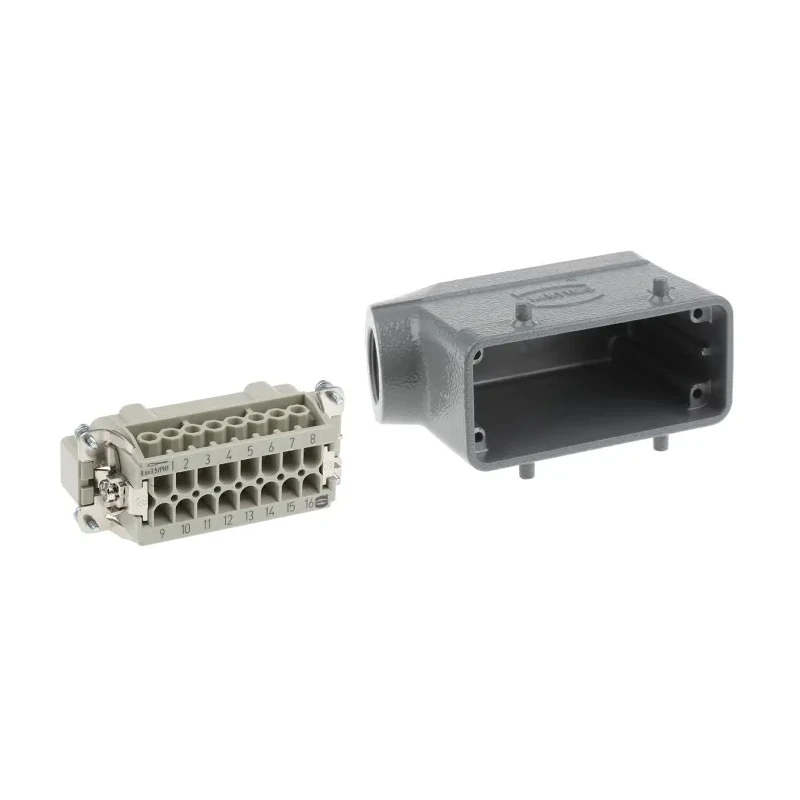

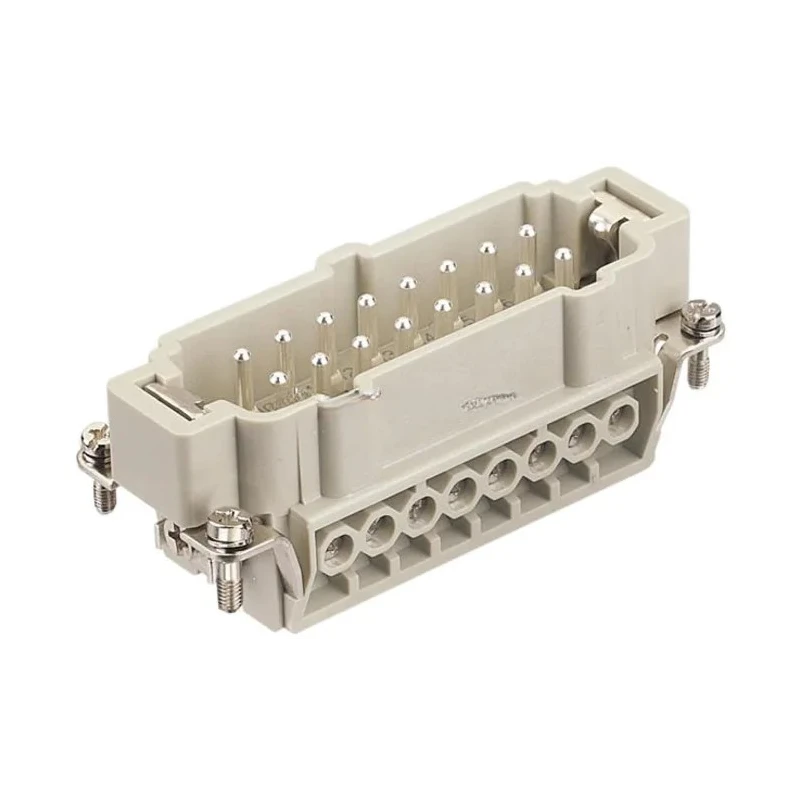

HARTING Heavy Duty Power Connector Panel Screw 16 Way 16A 500V Han E Male 09330162601+19300161521

HARTING 09330162601+19300161521 Heavy Duty Power Connector is a panel mount connector designed for industrial power distribution applications. Rated for 16A current and 500V voltage, this Han E Male connector features screw termination with 16 contact points plus protective earth, delivering secure and reliable electrical interfaces for automation, electronics, and machinery installations.

The connector is constructed with silver-plated copper alloy contacts that provide excellent conductivity and corrosion resistance. It incorporates a polycarbonate insert with V-0 flammability classification to ensure safe operation even in demanding environments. Its panel mount design includes an M25 thread size and side entry orientation suitable for control panels and machine tool power feeds.

Operating temperature limits range from -40°C to +125°C, making this connector well suited for harsh industrial conditions. The IP65 rated housing protects against dust and water ingress, while the mating endurance of over 500 connection cycles ensures durability in repeated assembly scenarios. Additionally, the protective earth contact secured by an M4 screw provides earthing continuity and enhanced safety.

Applications include machine tool power feeds in automated production lines, detachable power interfaces for control panels, fieldbus and drive system installations, temporary power distribution during maintenance, and railway vehicle electrical compartments with fire safety requirements.

Rated for 16 amperes current and 500 volts voltage for reliable power distribution. 16 contact points plus protective earth for secure electrical connections. Screw termination type facilitating robust conductor attachment.

Panel mount with M25 thread size and side entry orientation for industrial installation. Silver-plated copper alloy contacts for enhanced conductivity and corrosion resistance. Wide operating temperature range from -40°C to 125°C suitable for harsh environments.

IP65 rated enclosure provides protection against dust and water ingress. Polycarbonate insert with V-0 flammability rating ensures safety under electrical stress. Mating endurance of at least 500 cycles supports repeated assembly and disassembly.

Protective earth contact secured with M4 screw ensures continuity and safety. Designed and manufactured in Germany with compliance to UL, CSA, and SEV standards.

This connector is an ideal solution for industrial automation and power distribution applications requiring robust and safe electrical connections. It is part of HARTING's renowned Han E series known for durability and high performance.
