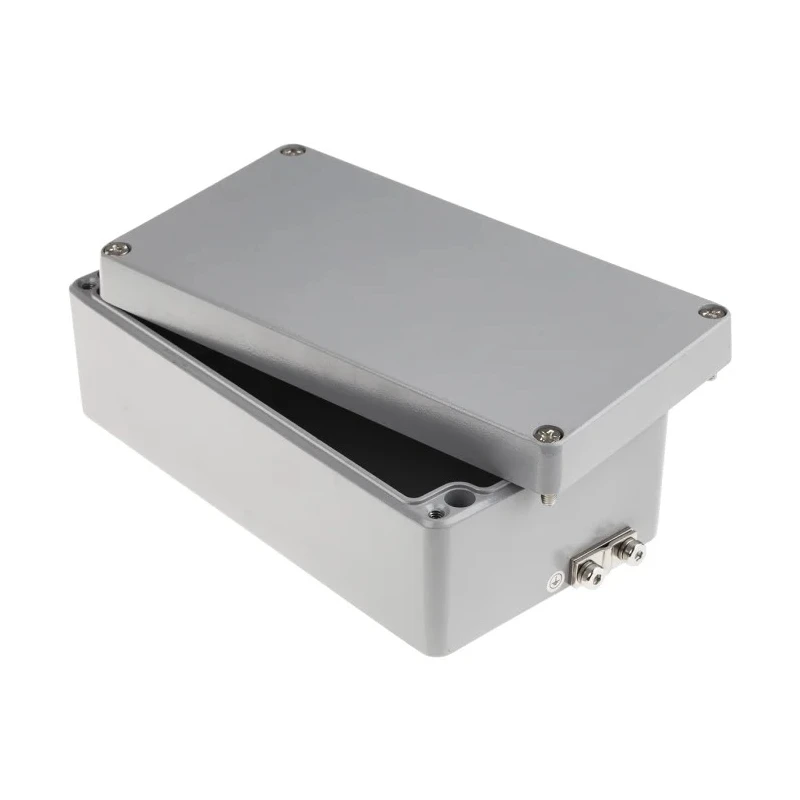

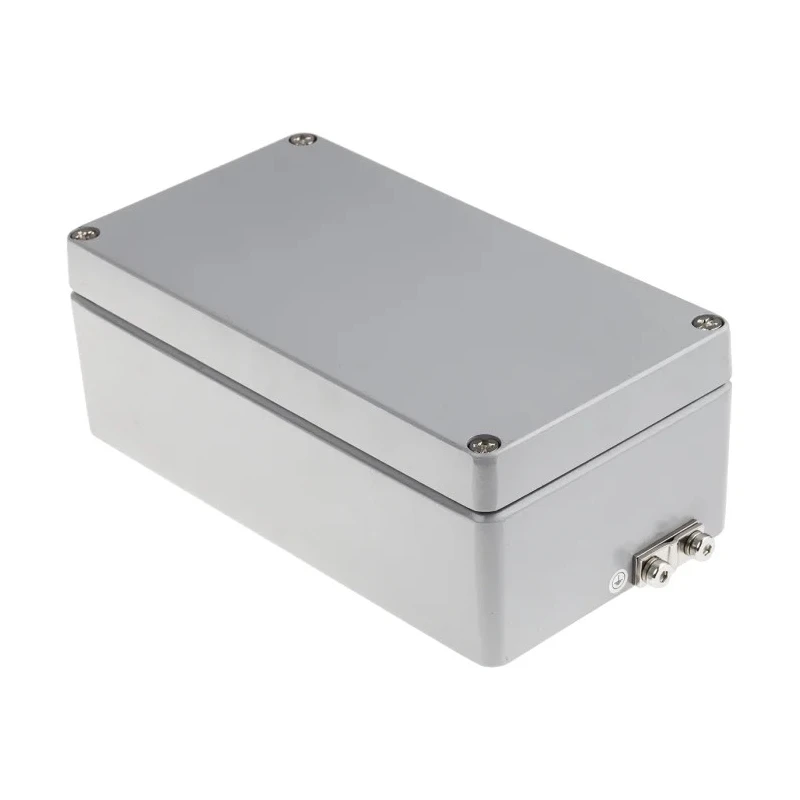

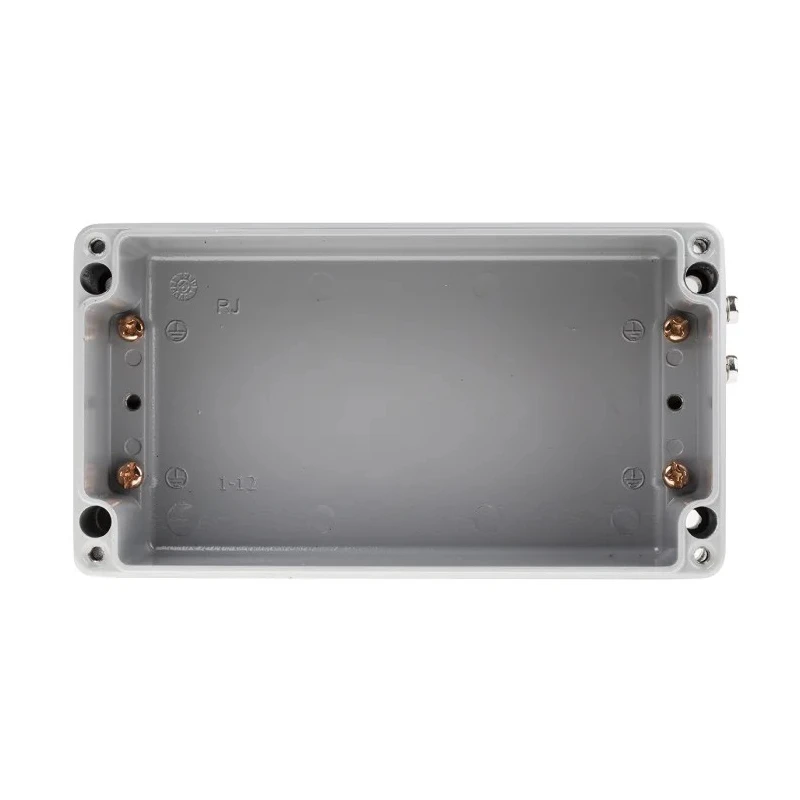

RS PRO Grey Lid Aluminium Enclosure IP68, IP66, IP65, IP67, IK09, 81 mm x 220 mm x 220 mm IP68
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP68 |
| IP Rating | IP68, IP66, IP65, IP67 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 220mm |
| External Height | 81mm |
| Shielding | Unshielded |
| Hazardous Area Certification | IECEx, ATEX |
| Standards/Approvals | RoHS Compliant |
| External Length | 220mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
| RS PRO Grey Lid Aluminium Enclosure, IP66, IK09, 81 mm x 100 mm x 100 mmBrand | RS PRO |
Key Features
- Constructed from AISi 12 diecast aluminium with a grey powder coated finish.
- Silicon gasket material provides superior sealing against water and dust.
- Certified for hazardous environments with IECEx and ATEX approvals.
- Stainless steel captive lid screws for secure and reliable fastening.
- Operating temperature range from -50°C to 135°C allows high versatility.
- Suitable for process control, automation, mining, and locomotive applications.
- Package includes enclosure body, grey lid, and 4 cover screws.
- Supports internal and external earthing for conductor sizes from 4 mm² to 120 mm².
Product Description
RS PRO presents the IP68 Grey Lid Aluminium Enclosure, model IP68, featuring robust protection with multiple ingress protection ratings IP68, IP66, IP65, and IP67, and an IK09 impact rating, with dimensions 81 mm (height) x 220 mm (width) x 220 mm (length). This enclosure is manufactured from AISi 12 diecast aluminium with a grey powder coated finish to provide excellent durability and corrosion resistance in demanding industrial environments.
The enclosure is equipped with a silicon gasket that provides superior sealing against dust and moisture, ensuring reliable operation even in harsh conditions. Stainless steel captive screws secure the lid firmly, increasing mechanical strength and maintaining protection integrity.
It is certified for use in hazardous locations, complying with IECEx and ATEX standards, making it suitable for explosive atmospheres in process control, automation, mining, and locomotive applications. The product supports internal and external earthing with conductor sizes ranging from 4 mm² to 120 mm² to meet electrical safety requirements.
The enclosure withstands a wide service temperature range from -50°C up to 135°C, enhancing its versatility across various industrial applications. Compliance with RoHS, ISO 9001:2008, and impact energy standards ensures quality and safety.
Constructed from diecast aluminium with grey powder coat finish. Multiple IP ratings including IP68, IP66, IP65, and IP67 for superior protection. Certified IECEx, ATEX hazardous area approvals. Equipped with stainless steel captive screws for secure closure.
Silicon gasket material for effective sealing. Supports internal and external earthing connections. Service temperature range -50°C to 135°C. Suitable for applications in process control, automation, and mining industries.
Meets RoHS, ISO 9001, and mechanical strength standards. The package includes the enclosure body, grey lid, and 4 cover screws, ready for immediate installation and deployment.
This RS PRO enclosure is an ideal choice for protecting sensitive electrical and electronic components in industrial, manufacturing, and commercial environments. Browse our extensive range in the Electrical Enclosures category for additional related products and accessories.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure has external dimensions of 81 mm in height, 220 mm in width, and 220 mm in length.
It operates within a temperature range of -50°C to 135°C, allowing for versatility in various environments.
This model features multiple ingress protection ratings: IP68, IP66, IP65, and IP67, providing robust protection against dust and water.
Yes, it is certified for hazardous locations with IECEx and ATEX approvals, making it suitable for explosive atmospheres.
It is constructed from AISi 12 diecast aluminium with a grey powder coated finish, providing durability and corrosion resistance.
It is equipped with a silicon gasket that provides superior sealing against dust and moisture.
The enclosure has an IK09 impact rating, indicating its resistance to mechanical impacts.
It supports both internal and external earthing for conductor sizes ranging from 4 mm² to 120 mm².
The package includes the enclosure body, a grey lid, and four cover screws for secure fastening.
It complies with RoHS and ISO 9001:2008 standards, ensuring quality and safety in its design and manufacturing.
This model is suitable for applications in process control, automation, mining, and locomotive industries.
The lid is secured with stainless steel captive screws, which enhance the mechanical strength and protection integrity of the enclosure.
