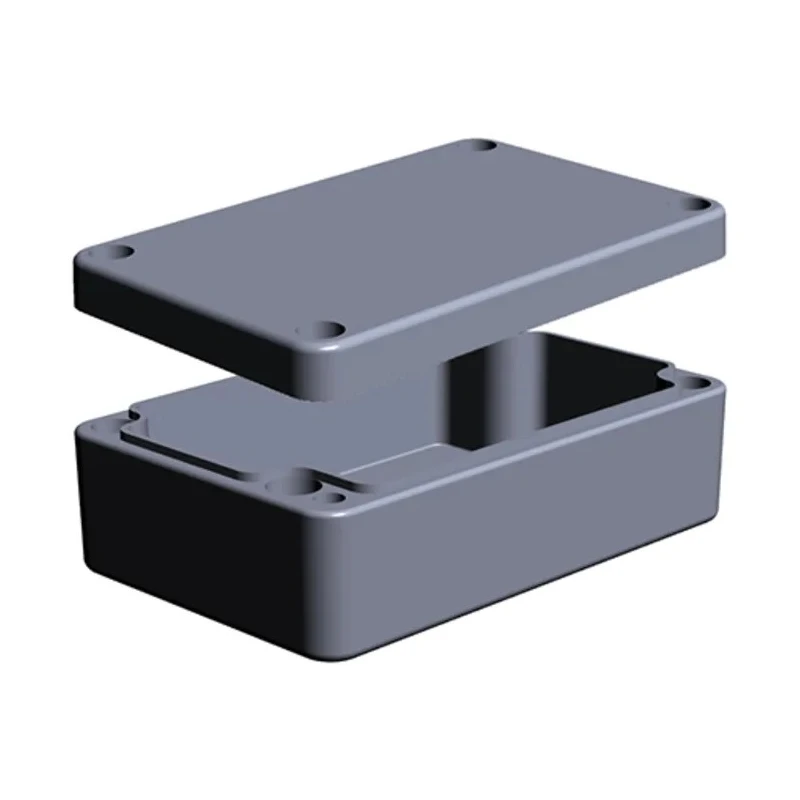

RS PRO Grey Lid Aluminium Enclosure, IP65, IP66, IP67, IP68, IK09, 34 mm x 98 mm x 98 mm IP65
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP65 |
| IP Rating | IP65, IP66, IP67, IP68 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 98mm |
| External Height | 34mm |
| Shielding | Unshielded |
| Hazardous Area Certification | ATEX, IECEx |
| External Length | 98mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
Key Features
- This enclosure features a diecast aluminium body with a grey powder coat finish.
- It is rated IP65, IP66, IP67, IP68 for high resistance to dust and water ingress.
- The enclosure includes an IK09 impact rating ensuring toughness against mechanical impacts.
- It comes with a silicon gasket and stainless steel captive lid screws for secure sealing.
- Designed for use in explosive atmospheres, approved by ATEX and IECEx standards.
- Service temperature ranges from -50°C to 135°C for versatile environmental applications.
- Internal and external earthing facilities support electrical safety requirements.
- Suitable for process control, automation, mining industries, and applications like locomotives, crane hoists, and solar panels.
Product Description
RS PRO IP65 Aluminium Enclosure with model code IP65 is crafted from AISi 12 diecast aluminium, finished with a grey powder coat that ensures corrosion resistance and aesthetic durability. This enclosure provides comprehensive protection against environmental challenges and mechanical impacts, making it ideal for demanding industrial and automation settings.
The enclosure is certified with IP ratings of IP65, IP66, IP67, and IP68, indicating excellent protection against dust ingress and water jets, submersion, and sustained immersion. Furthermore, the IK09 rating certifies the enclosure's resilience against mechanical impact up to 7 Nm energy, ensuring reliability in harsh environments.
Equipped with a silicon gasket and stainless steel captive lid screws, it guarantees secure sealing and ease of maintenance. The enclosure is ATEX and IECEx approved for use in potentially explosive atmospheres, adding to its scope of applications in process control, mining, and automation sectors.
Operating in service temperatures from -50°C to 135°C, it accommodates a wide range of industrial environments. The design supports both internal and external earthing for enhanced safety, suitable for electrical installations requiring reliable grounding.
Its dimensions of 34 mm height, 98 mm length, and 98 mm width provide ample space for housing sensitive electronic instruments safely. The package includes the enclosure body, grey lid, and four captive lid screws.
This enclosure features a diecast aluminium body with a grey powder coat finish. It is rated IP65, IP66, IP67, IP68 for high resistance to dust and water ingress. The enclosure includes an IK09 impact rating ensuring toughness against mechanical impacts.
It comes with a silicon gasket and stainless steel captive lid screws for secure sealing. Designed for use in explosive atmospheres, approved by ATEX and IECEx standards. Service temperature ranges from -50°C to 135°C for versatile environmental applications.
Internal and external earthing facilities support electrical safety requirements. Suitable for process control, automation, mining industries, and applications like locomotives, crane hoists, and solar panels. Includes enclosure body, cover, and 4 cover screws in the package.
This RS PRO Aluminium Enclosure is an excellent choice for industrial, laboratory, construction, HVAC, manufacturing, water treatment, and commercial electrical protection needs. For more options, explore our comprehensive catalog of RS PRO enclosures and related electrical products at EnvMart.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure has external dimensions of 34 mm in height, 98 mm in length, and 98 mm in width.
It operates effectively within a service temperature range of -50°C to 135°C.
It is rated IP65, IP66, IP67, and IP68, ensuring high resistance to dust and water ingress.
This model has an IK09 impact rating, which certifies its resilience against mechanical impacts up to 7 Nm energy.
The enclosure is made from diecast aluminium and features a grey powder coat finish for corrosion resistance.
Yes, it is approved for use in potentially explosive atmospheres and is certified by ATEX and IECEx standards.
It comes with a silicon gasket that ensures secure sealing against environmental ingress.
It supports both internal and external earthing, accommodating wire sizes from 4 mm² to 120 mm² for electrical safety.
It is suitable for various applications including process control, automation, mining, locomotives, crane hoists, and solar panels.
The package includes the enclosure body, a grey lid, and four captive lid screws for secure assembly.
It meets the EN60529 standard for protection class and is rated for IP66, among other certifications.
This unit is unshielded, which may be relevant for specific applications requiring electromagnetic compatibility considerations.
