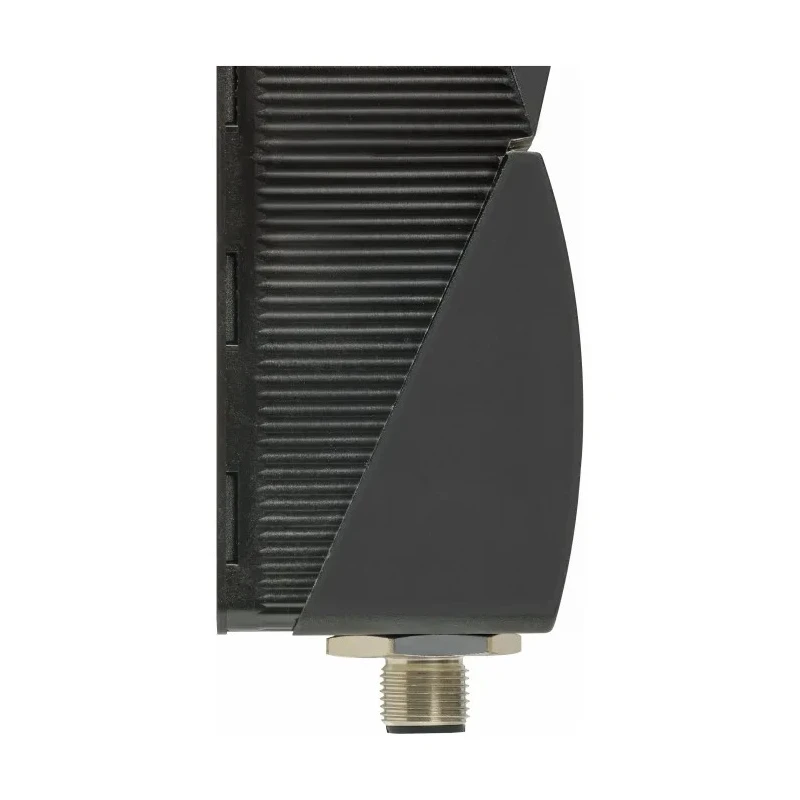

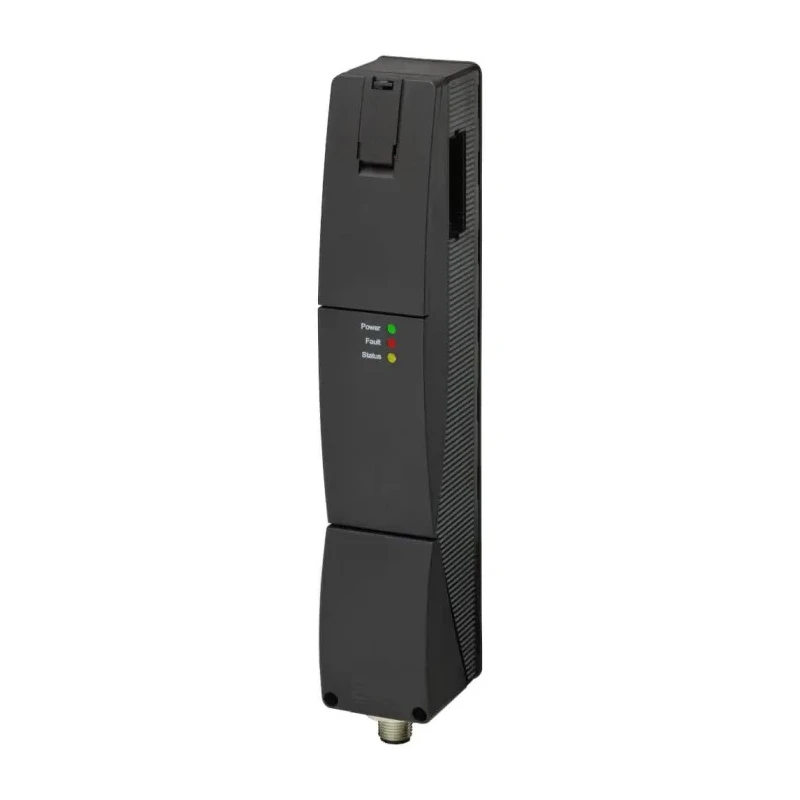

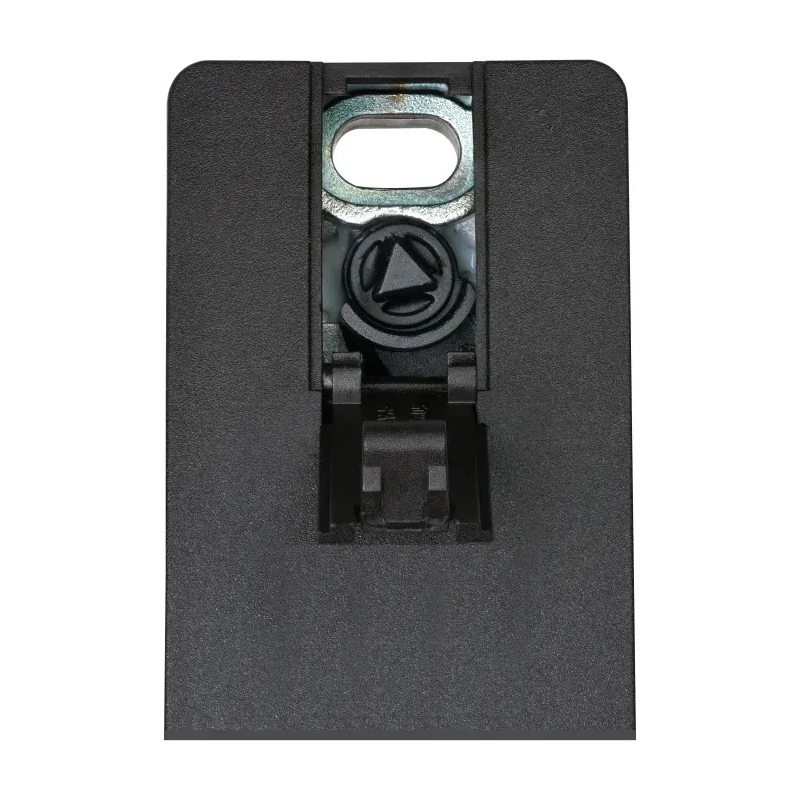

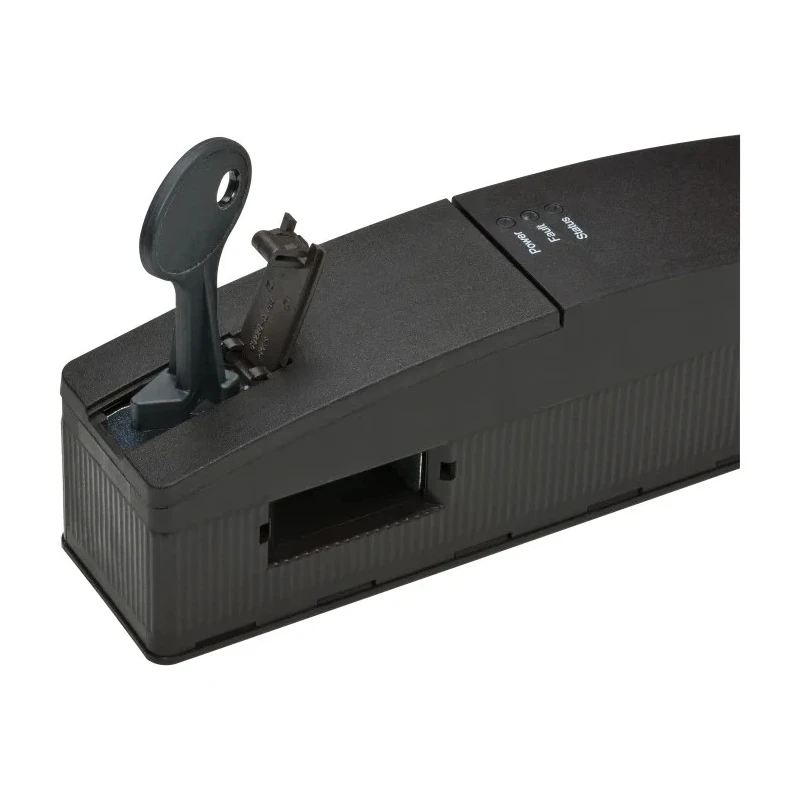

Omron D41G Series Solenoid Interlock Switch 24V DC Power to Lock, Thermoplastic Housing, IP66/IP67 D41G-2YDG-N2
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Omron |
| Length | 22mm |
| Model | D41G-2YDG-N2 |
| Depth | 40mm |
| IP Rating | IP66, IP67 |
| Width | 50mm |
| Housing Material | Thermoplastic |
| Series | D41G |
| Actuator Type | Handle |
| Terminal type | M12 Connector |
| Supply Voltage | 24V dc |
| Contact DC Voltage | 24V dc |
| Contact AC Voltage | 24V ac |
| Contact Current | 0.05A |
| Number of Auxiliary Contacts | 1 |
| Conduit Entry | M12 |
Key Features
- Operates with 24V DC supply voltage with power-to-lock function.
- Thermoplastic housing provides corrosion resistance and self-extinguishing properties.
- Features M12 connector and conduit entry for streamlined installation.
- Includes one auxiliary contact rated at 24V DC/AC and 0.05A for status signaling.
- Certified to EN ISO 13849-1 PL e Category 4, cULus, CE, IEC 61508 and others for high safety standards.
- Protection rating IP66 and IP67 ensures dust-tight and water-resistant operation.
- Integrates diagnostics with dual-channel OSSD safety outputs and manual/emergency release to prevent entrapment.
- Ideal for gate-type guards with handle actuator for industrial safety interlock applications.
Product Description
Omron D41G-2YDG-N2 Solenoid Interlock Switch is a robust safety device operating at 24V DC designed to protect access to hazardous areas by monitoring guard position and providing a power-to-lock mechanism.
This device features a thermoplastic housing that offers excellent corrosion resistance and self-extinguishing properties, making it suitable for demanding industrial environments. It includes an M12 connector and conduit entry to simplify electrical installation and wiring, accommodating an 8-pin wiring setup.
It provides one auxiliary contact rated at 24 V DC/AC at 0.05 A to allow status signaling integration with control systems. Its dual-channel OSSD safety outputs with cross-wire monitoring provide reliable safety performance conforming to industry standards such as EN ISO 13849-1 PL e Category 4, EN 60947-5-3, IEC 61508, and holds CE and cULus approvals.
The switch has an ingress protection rating of IP66 and IP67, offering dust-tight and protection against powerful water jets and immersion, making it suitable for washdown and harsh industrial settings.
The device supports high-coded RFID pairing and actuator teaching options to minimize tampering risk. It also includes manual and emergency release options to ensure personnel safety in power failure scenarios.
Applications include use on hinged or sliding guard doors, gated entries requiring monitored interlock functionality, and integration with safety controllers for Category 4 machine protection level. Its auxiliary output enables status visualization and PLC integration.
Operates at 24 V DC supply voltage with power to lock/unlock functionality. Thermoplastic housing is corrosion-resistant and self-extinguishing. M12 connector and conduit entry for easy installation. One auxiliary contact rated for 24V at 0.05A for status signalling.
Certified to EN ISO 13849-1 PL e Category 4, IEC 61508, CE and cULus standards. Ingress protection rating IP66, IP67 for dust and water resistance. Includes diagnostic outputs and manual/emergency release features. Designed for industrial safety interlock applications on gates and guards.
Explore our range of Safety Interlock Switches at EnvMart for high-performance industrial safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a supply voltage of 24V DC.
The dimensions of this unit are 22mm in length, 50mm in width, and 40mm in depth.
It has an ingress protection rating of IP66 and IP67, ensuring dust-tight and water-resistant operation.
The housing material is thermoplastic, which provides corrosion resistance and self-extinguishing properties.
It includes one auxiliary contact rated at 24V DC/AC and 0.05A for status signaling.
This model uses a handle actuator type for its operation.
It is certified to EN ISO 13849-1 PL e Category 4, IEC 61508, CE, and cULus standards.
The contact current rating is 0.05A.
It features an M12 connector for streamlined installation.
This model is designed for industrial safety interlock applications, particularly on hinged or sliding guard doors.
Yes, it includes manual and emergency release options to ensure personnel safety in power failure scenarios.
It integrates diagnostics with dual-channel OSSD safety outputs and cross-wire monitoring for reliable safety performance.
