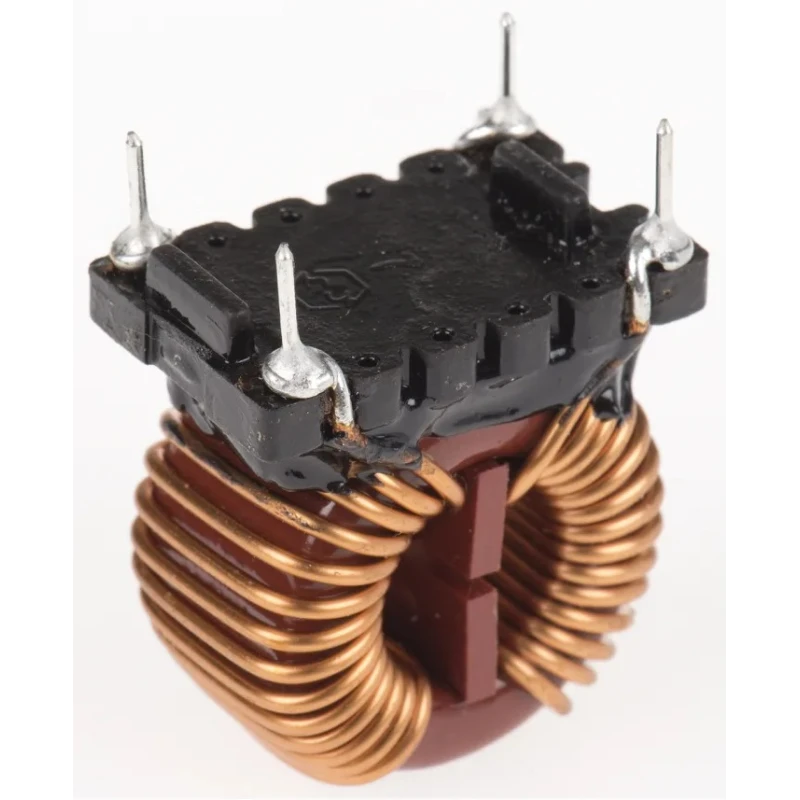

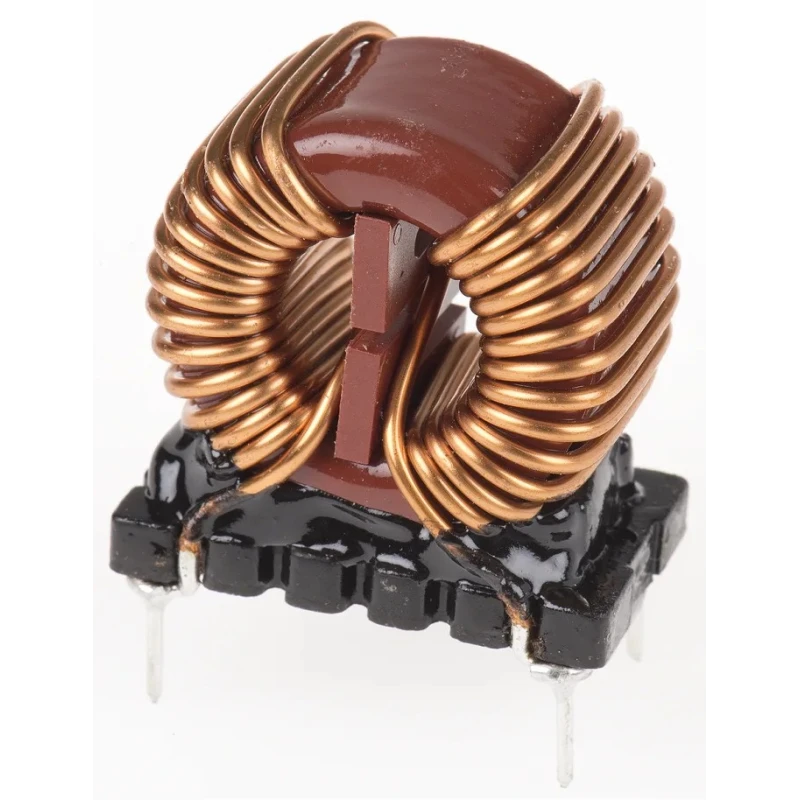

Wurth Elektronik 2.2 mH Manganese Zinc Leaded Inductor, 8 A Idc, 14 mΩ Rdc, 1500V, WE-CMB HC 7448258022
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 35mm |
| Length | 30.5mm |
| Depth | 21mm |
| Mount Type | Radial |
| Series | WE-CMB HC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Core Material | Manganese Zinc |
| Maximum Voltage | 1500V |
| Inductance | 2.2mH |
| Standards/Approvals | UL 94 V-2 |
| Maximum DC Current | 8A |
| Maximum DC Resistance | 14mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Lead Pitch | 25mm |
| Lead Diameter | 1mm |
Key Features
- Radial mount type suitable for through-hole PCB assembly.
- Core made from manganese zinc for optimized magnetic properties.
- Wide operating temperature range from -40°C to +125°C ensuring durability.
- Maximum operating voltage rated at 1500 V for high-voltage applications.
- Compact dimensions with length 30.5 mm, height 35 mm, and depth 21 mm.
- Lead diameter of 1 mm and pitch of 25 mm for reliable solder connections.
- Inductance tolerance of ±30% providing consistent performance.
- Conforms to UL 94 V-2 flammability standard ensuring safety.
Product Description
Wurth Elektronik 7448258022 is a high-quality leaded inductor with an inductance of 2.2 mH. Featuring a manganese zinc core, this radial mount component offers excellent magnetic properties and durability suitable for diverse electronic applications. It has a maximum DC current rating of 8 A and a maximum operating voltage of 1500 V, making it suitable for robust power filtering tasks.
The inductor supports a broad operating temperature range from -40°C to +125°C, ensuring reliable performance under harsh environmental conditions. Its compact dimensions (30.5 mm length, 35 mm height, 21 mm depth) aid in space-saving PCB designs, while the 1 mm lead diameter and 25 mm lead pitch facilitate secure soldering. Inductance tolerance is ±30%, guaranteeing a degree of precision expected in high-performance assemblies.
The product meets UL 94 V-2 flammability requirements, emphasizing safety and compliance in industrial applications. This component is part of the WE-CMB HC series, commonly used in the suppression of common mode noise and radio interference, especially in motor controls and power electronics circuits lacking a ground connection.
Its radial mount style allows convenient through-hole mounting, making it compatible with standard PCB assembly processes in manufacturing, industrial electronics, and power supply filters. With a manganese zinc core material, the inductor maintains performance stability even under load.
Radial leaded inductor with 2.2 mH inductance and 8 A maximum DC current. Manganese zinc core provides effective magnetic properties and low loss. Wide temperature range of -40°C to +125°C for varied industrial environments.
Maximum voltage rating of 1500 V supports high-voltage applications. Dimensions optimized for compact PCB installations: 30.5 x 35 x 21 mm. UL 94 V-2 flammability standard certified for safety compliance. WE-CMB HC series designed for noise suppression in motor and power line filters.
Solder termination with 1 mm lead diameter and 25 mm pitch for secure mounting. Inductance tolerance is ±30%, ensuring consistent filtering performance.
Suitable for use in industrial electronics, power filtering circuits, motor controls, and electromagnetic interference reduction in commercial and manufacturing equipment. Choose Wurth Elektronik 7448258022 for reliable and efficient leaded inductance solutions. Explore more electronic components in the inductors category at EnvMart for your industrial needs.
Explore more products in our Leaded Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2 mH.
It has a maximum DC current rating of 8 A.
The maximum operating voltage is rated at 1500 V.
The inductor has dimensions of 30.5 mm in length, 35 mm in height, and 21 mm in depth.
It operates within a temperature range of -40°C to +125°C.
The lead diameter is 1 mm and the lead pitch is 25 mm.
The core material is manganese zinc, which optimizes its magnetic properties.
The inductance tolerance is ±30%.
It conforms to the UL 94 V-2 flammability standard.
This inductor features a radial mount type suitable for through-hole PCB assembly.
It is suitable for power filtering circuits, motor controls, and electromagnetic interference reduction in industrial electronics.
The maximum DC resistance is 14 mΩ.
