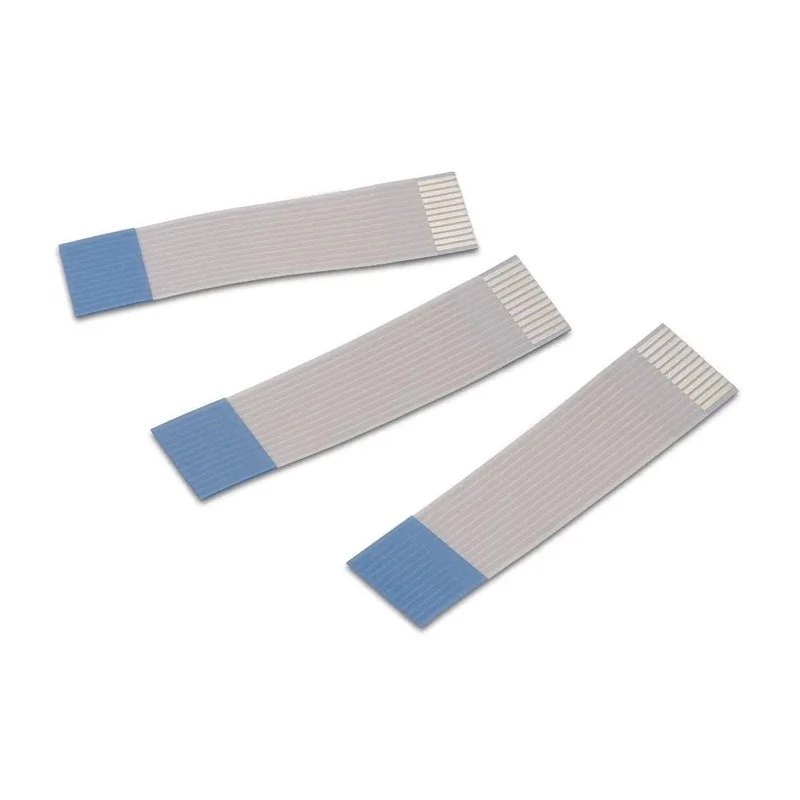

Wurth Elektronik WR-FFC Series Ribbon Cable 9 Conductors 1.00 mm Pitch 152 mm Length 686709152001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Cable Length | 152mm |
| Series | WR-FFC |
| Conductor Material | Copper |
| Jacket Material | Polyphenylene Ether |
| Pitch | 1mm |
| Standards/Approvals | RoHS Compliant |
| Jacket Colour | White |
| Number of Conductors | 9 |
Key Features
- Highly flexible Type 2 flat flexible cable with 1.00 mm pitch.
- Blue PET support tape on both ends facilitates ZIF and LIF connections.
- Lightweight and low-profile to save space in high-density assemblies.
- Durable copper conductor material ensuring superior conductivity.
- RoHS compliant and white polyphenylene ether jacket for excellent insulation.
- Suitable for complex connections requiring over 20 cycles of 180° flexing endurance.
- Available in lengths from 50 mm to 200 mm, tailored to application needs.
- Ideal for connecting PCBs to displays in LCDs, plasma panels, printers, scanners, and notebook PCs.
Product Description
Wurth Elektronik 686709152001 WR-FFC Series Ribbon Cable is a Type 2 flat flexible cable with a 1.00 mm pitch and 9 copper conductors enclosed in a white polyphenylene ether jacket. Measuring 152 mm in length, this RoHS compliant cable provides efficient, space-saving interconnections for demanding electronic assemblies.
Featuring blue PET support tape at either end, the cable supports Zero Insertion Force (ZIF) and Low Insertion Force (LIF) connections, simplifying assembly with compatible board mount FPC connectors. The cable exhibits exceptional flexibility, capable of withstanding over 20 cycles of 180° bending, making it suitable for dynamic or tightly constrained environments.
Its slim, lightweight design optimizes space utilization and reduces overall system weight, an advantage for high-density and portable electronics. The copper conductors guarantee low resistance and reliable signal integrity.
The WR-FFC series cables come in standard lengths from 50 mm up to 200 mm, enabling selection according to specific routing requirements. This particular model’s 152 mm length is well suited for a variety of applications requiring precision and robustness.
Common industrial and commercial uses include electrical connections between printed circuit boards and display modules in products such as LCD appliances, plasma displays, printers, scanners, DVD players, and notebook computers. Their high flexibility and reliability make them a preferred choice in electronics manufacturing and design.
Highly flexible Type 2 flat flexible cable with 1.00 mm pitch. Blue PET support tape enables ZIF and LIF connector compatibility. Durable copper conductors for excellent electrical performance. White polyphenylene ether jacket meets insulation and safety standards.
RoHS compliant, supporting environmental regulations. Flexible enough for complex board-to-board assemblies requiring multiple flex cycles. Available in various lengths to match application requirements. Designed for high-density electronic assemblies to save cost and space.
Ideal for use in consumer electronics, commercial devices, and industrial equipment. Explore our comprehensive selection of Ribbon Cables and related Wurth Elektronik products at EnvMart to fulfill your advanced electronic interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a length of 152 mm.
It features 9 conductors.
The pitch of this cable is 1.00 mm.
The conductors are made of copper, and the jacket is made of polyphenylene ether.
Yes, it is RoHS compliant, meeting environmental regulations.
It supports Zero Insertion Force (ZIF) and Low Insertion Force (LIF) connections due to the blue PET support tape at both ends.
It is ideal for connecting PCBs to displays in LCDs, plasma panels, printers, scanners, and notebook PCs.
The country of origin is China.
This cable is highly flexible, capable of withstanding over 20 cycles of 180° bending, making it suitable for dynamic environments.
The jacket is white in color.
Its lightweight and low-profile design helps save space, making it advantageous for high-density electronic assemblies.
Yes, it is available in lengths from 50 mm to 200 mm, allowing for selection based on specific routing needs.
