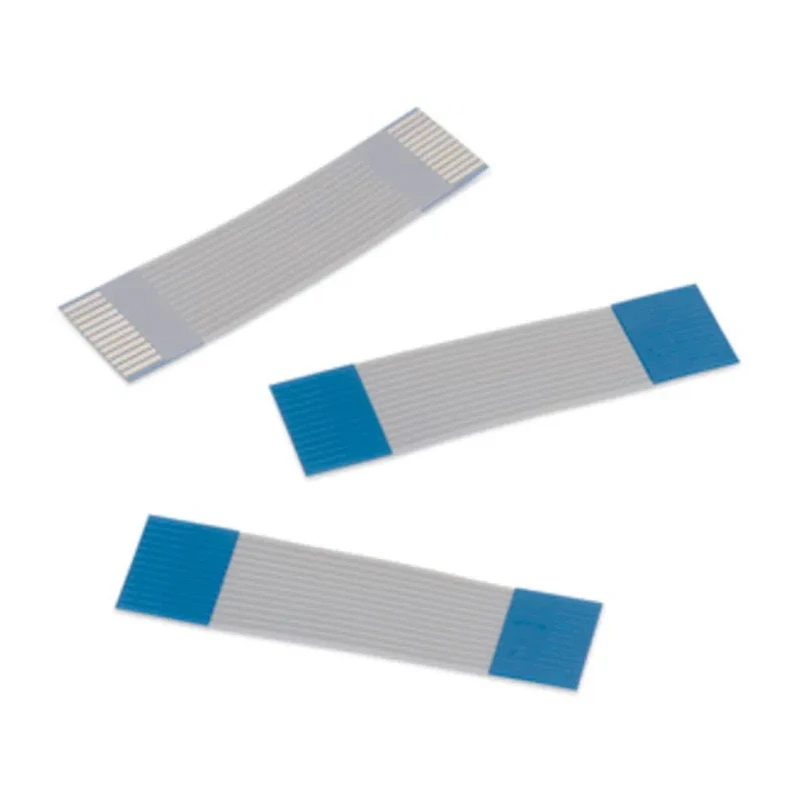

Wurth Elektronik WR-FFC Series Ribbon Cable 21-Conductor 1 mm Pitch 152 mm Length 686621152001

Wurth Elektronik 686621152001 WR-FFC Series Ribbon Cable is a high-quality, flexible flat cable designed with 21 copper conductors and a precise 1.00 mm pitch. The cable measures 152 mm in length and is encased in a durable polyphenylene ether white jacket that offers excellent mechanical protection and heat resistance. This RoHS-compliant cable is engineered for secure, lightweight, and low-profile board-to-board connections, particularly in high-density electronic assemblies.

Its enhanced flexibility is demonstrated by a flexing capability of more than 20 cycles bending at 180 degrees, making it suitable for complex and compact electronic designs. The Type 1 cables feature contacts on the same side at each end, supported by blue PET tapes to facilitate Zero Insertion Force (ZIF) and Low Insertion Force (LIF) connections when mated with compatible board-mount FPC connectors, guaranteeing reliable connection performance.

Available in various lengths from 50 mm to 200 mm, these WR-FFC cables accommodate different configuration needs and circuit counts, making them ideal for manufacturers demanding precision and quality. They find applications across a range of industries, including consumer electronics and industrial devices, particularly for electrical connections between PCBs and display modules.

Typical use cases include incorporation in LCD appliances, plasma display panels, printers, scanners, DVD players, and notebook computers, where saving space and maintaining high signal integrity is critical. The simple assembly process and range of options contribute to cost-effective and efficient manufacturing workflows.

This ribbon cable features a 1.00 mm pitch for precision and compatibility. It has 21 copper conductors ensuring efficient electrical conductivity. The cable length is 152 mm for versatile application fit. Constructed with polyphenylene ether jacket material, providing durability and heat resistance.

The white jacket color aids easy identification and neat wiring. Highly flexible with a flexing test exceeding 20 cycles at 180° bending. Blue PET support tapes on both ends facilitate ZIF and LIF connector compatibility.

RoHS compliant, ensuring environmentally friendly and safe use. Ideal for use in high-density, space-saving board-to-board applications. Suitable for LCD appliances, plasma displays, printers, scanners, DVD players, and notebook PCs.
