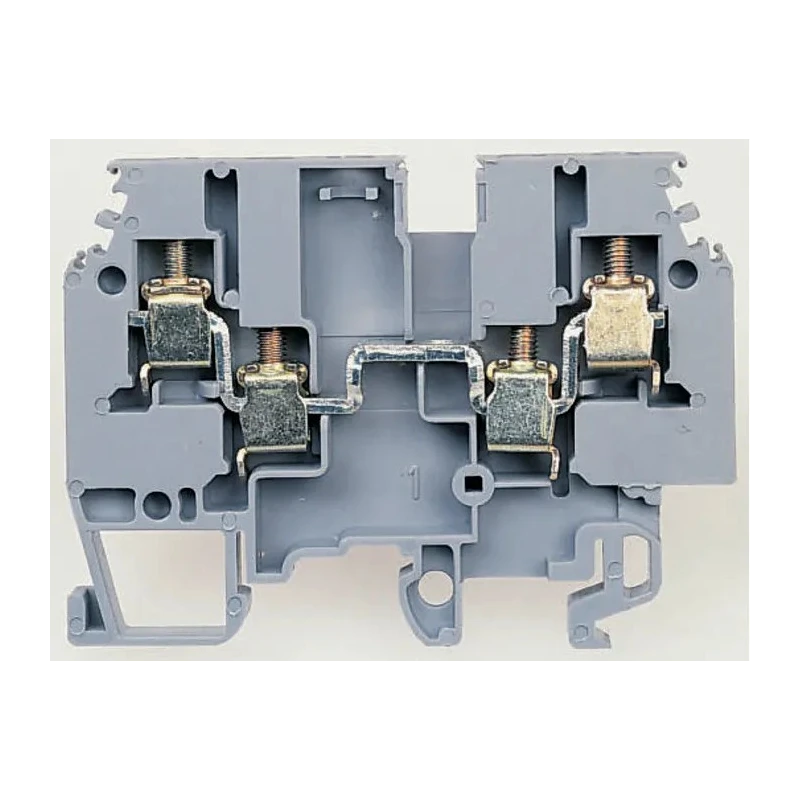

Entrelec SNA Series DIN Rail Terminal Block Blue, 4mm², 1-Level, Screw, 32A, 800V AC 1SNA125479R2500
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 800V ac |
| Brand | Entrelec |
| Colour | Blue |
| Model | 1SNA125479R2500 |
| Series | SNA |
| Termination Type | Screw |
| Maximum Operating Temperature | 40°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -5°C |
| Pitch | 6mm |
| Standards/Approvals | CE, EAC, EU Directive 2002/95/EC |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 4mm² |
| Terminal Block Current | 32A |
Key Features
- Constructed from flame-resistant polyamide 6.6 for high durability and safety.
- Suitable for wire cross-sections from 4mm² with minimum wire size AWG22 to maximum AWG10.
- Features a screw terminal for secure cable fixing ensuring reliable electrical connections.
- Designed for mounting on asymmetric 'G' profile and Top hat profile DIN rails.
- Operating temperature range from -5°C to 40°C for versatile installation environments.
- Complies with CE, EAC, and EU Directive 2002/95/EC standards.
- Rated current of 32 Amperes suitable for power distribution and control applications.
- Pitch of 6mm allows for compact and efficient assembly.
Product Description
Entrelec 1SNA125479R2500 SNA Series DIN Rail Terminal Block in Blue colour is a feed-through terminal block designed for electrical distribution and connection tasks. It supports cables up to 4mm² cross-sectional area and handles a rated current of 32A at 800V AC voltage. Its screw termination offers reliable and secure connections, suitable for industrial, commercial, laboratory, and manufacturing environments.
This 1-level terminal block is moulded in tough, flame-resistant polyamide 6.6 material that withstands working temperatures from -55°C to +130°C, although operational temperature for this model is specified as -5°C to 40°C. It ensures high durability and electrical safety even in demanding installation conditions.
The design facilitates quick and secure mounting on widely used DIN rail profiles, including asymmetric 'G' rails and Top hat profiles. Its 6mm pitch makes it compact for efficient panel layouts, while the captive terminal screws feature hardened heads to prevent damage during installation.
The product complies with multiple international standards, including CE marking, EAC, and the EU Directive 2002/95/EC, guaranteeing conformity with safety and environmental requirements. It carries approvals such as UL listing and CSA certification, making it a trusted choice for power connectors, terminal blocks, and electrical control panels.
Flame-resistant polyamide 6.6 construction ensures safety and durability. Termination type: Screw for secure cable connections. Voltage rating of 800V AC suitable for industrial electrical distribution. Supports cable sizes from AWG22 up to AWG10 and cross-sections of 4mm².
Operating temperature range: -5°C to 40°C for wide application scope. Complies with CE, EAC, EU Directive 2002/95/EC, UL, and CSA approvals. Compact 6mm pitch for efficient DIN rail panel assembly. Rated current 32A for robust electrical performance.
Manufactured in France ensuring high quality standards.
This Entrelec SNA Series DIN Rail Terminal Block is suitable for industrial, electrical, manufacturing, laboratory, and commercial applications requiring reliable and standardized electrical connections. It ensures safety compliance, ease of installation, and adaptability to multiple DIN rail types.
Explore more Terminal Blocks and Power Connectors from trusted brands at EnvMart for your precise industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal block is 800V AC.
This terminal block has a rated current capacity of 32 Amperes.
It supports wire sizes from AWG 22 to AWG 10, with a cross-sectional area of 4mm².
The operating temperature range for this model is from -5°C to 40°C.
This terminal block features a screw termination type for secure cable connections.
It is designed for mounting on asymmetric 'G' profile and Top hat profile DIN rails.
The pitch of this terminal block is 6mm, allowing for compact assembly.
It is constructed from flame-resistant polyamide 6.6 for durability and safety.
It complies with CE, EAC, and EU Directive 2002/95/EC standards.
This terminal block is manufactured in France.
This model is a 1-level terminal block.
It is suitable for industrial, commercial, laboratory, and manufacturing applications requiring reliable electrical connections.
