Fair-Rite Openable Round Cable Snap-It Ferrite Core, Diameter 6.6 mm, Aperture 9.8x39.4x20 mm, EMI Suppression 0431164281

Free Delivery in India | Lowest Global Shipping Charges

Fair-Rite Openable Round Cable Snap-It Ferrite Core, Diameter 6.6 mm, Aperture 9.8x39.4x20 mm, EMI Suppression 0431164281

Name: Fair-Rite Openable Round Cable Snap-It Ferrite Core, Diameter 6.6 mm, Aperture 9.8x39.4x20 mm, EMI Suppression 0431164281
Brand: Fair-Rite
SKU: 188088
Price: 2.86 USD
Availability: InStock



Category Cables Brand Fair-Rite Condition New

Specifications

Country of Origin	China
Brand	Fair-Rite
Material	31 Material
Series	Openable
Aperture diameter	6.6mm
Sub Type	Round Cable Snap-Its
External Width	20mm
External Depth	9.8mm
External Height	39.4mm
Standards/Approvals	RoHS
Impedance at 100 MHz	380Ω
Impedance at 25 MHz	225Ω
Number of Apertures	1
RS PRO Openable, Diameter 7 mm Ferrite Clamp, Apertures	1 30 mm 15 mm 17 mm, For Internal & External Power Cable,RS Stock No.: 123-2485Brand: RS PRO
Fair-Rite Openable, Diameter 6.6 mm Ferrite Core, Apertures	1 9.8 mm 39.4 mm 20 mm, For EMI Suppression
Fair-Rite Ferrite CoreBrand	Fair-Rite

Key Features

Features a single aperture measuring 9.8 mm depth, 39.4 mm height, and 20 mm width.
Manufactured from 31 material with a polypropylene UL 94-V0 rated housing for flame resistance.
Provides impedance of 225Ω at 25 MHz and 380Ω at 100 MHz, enhancing EMI filtering performance.
Suitable for round cables with diameters ranging from 5.35 mm to 25 mm.

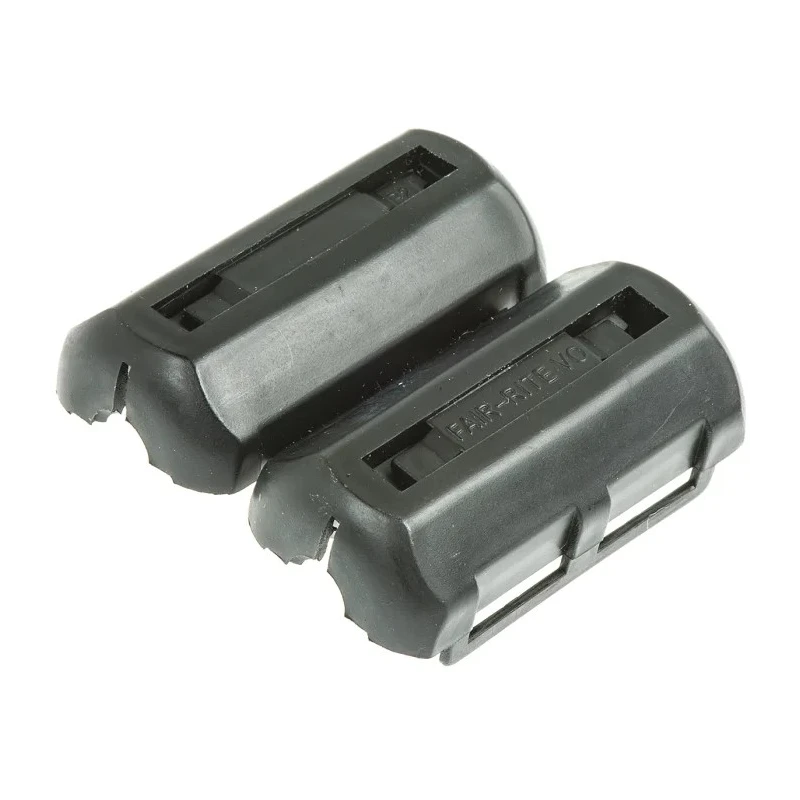

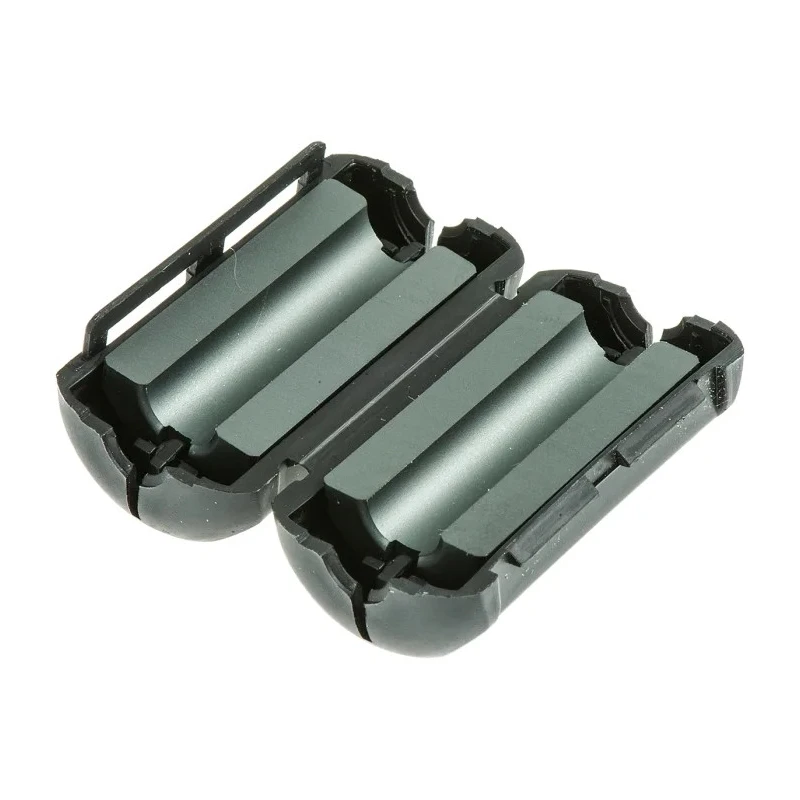

The split ferrite ring design allows easy installation on pre-installed cables without accidental opening.
Resistant housing protects core halves from damage during handling and use.
Applicable for use in computer technology, industrial control, medical engineering, and office equipment.
Complies with RoHS standards and originates from China.

Product Description

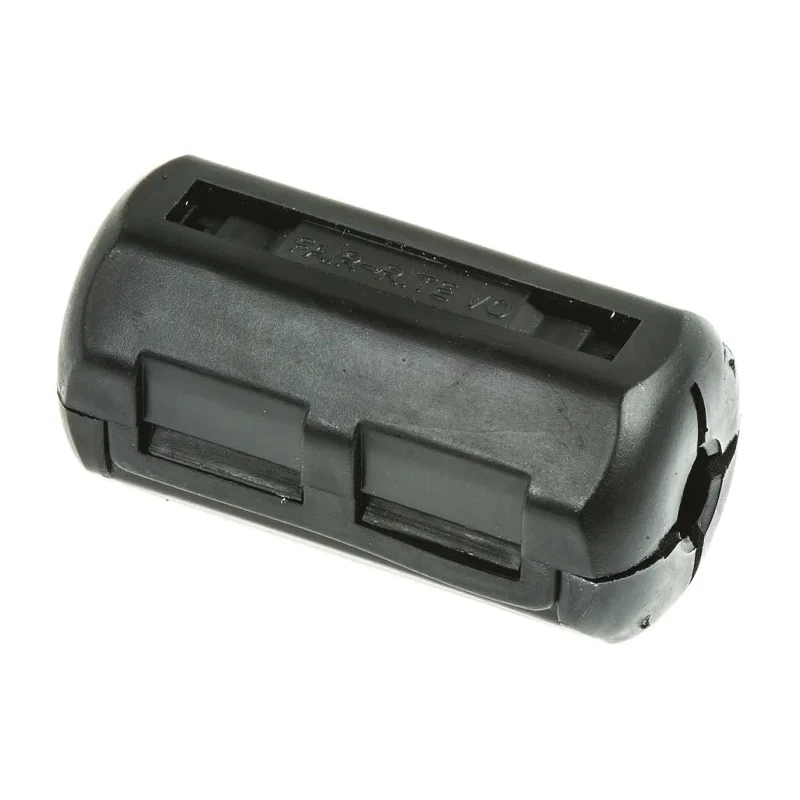

Fair-Rite 0431164281 is an openable round cable snap-it ferrite core designed for electromagnetic interference (EMI) suppression in diverse industrial and commercial applications.

Constructed from 31 material, the core features a polypropylene housing with UL 94-V0 flame retardant rating, ensuring durability and safety in demanding environments. The ferrite core demonstrates impedance ratings of 225Ω at 25 MHz and 380Ω at 100 MHz, effectively suppressing unwanted EMI noise in signal and power cables.

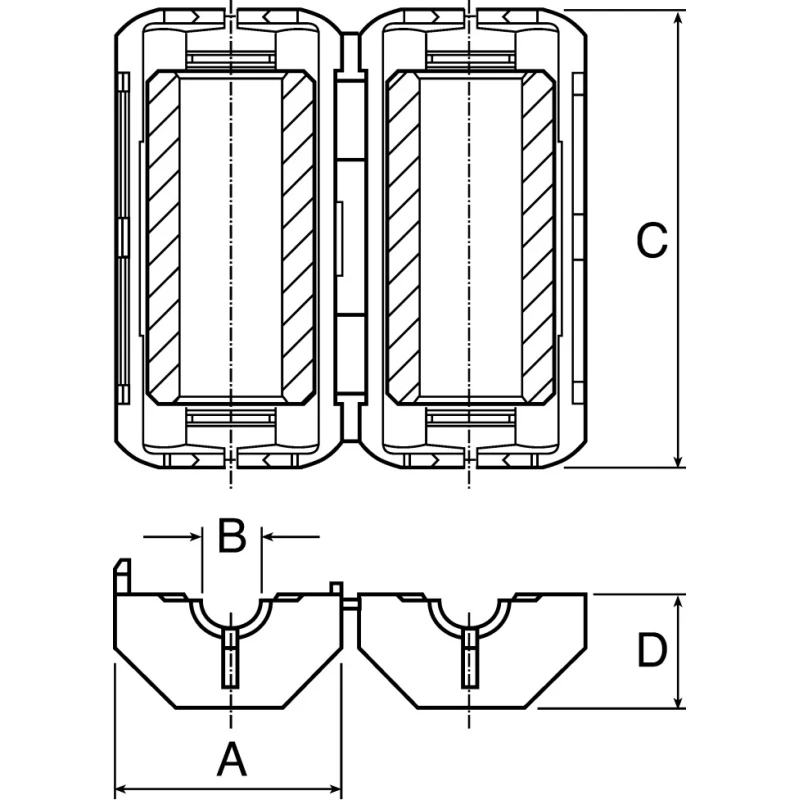

The ferrite core is engineered with a diameter of 6.6 mm and has an aperture sized 9.8 mm in depth, 39.4 mm in height, and 20 mm in width. Its split design with a robust snap lock allows for easy installation around cables that are already fitted with connectors or installed, preventing accidental openings during operation.

The protective outer housing safeguards the core halves against mechanical damage and permits optional fixation with glue or cable ties, providing flexibility in mounting solutions.

Typical applications include computer technology, industrial controllers, medical devices, and office machinery where EMI mitigation is critical to reliable operation. Single 6.6 mm diameter aperture ferrite core for EMI suppression.

High impedance core for effective noise attenuation across 25 MHz to 100 MHz frequencies. UL 94-V0 polypropylene flammability rated housing enhances component safety. Split core design simplifies installation on pre-existing Cables and connectors.

Robust construction with protective housing extends service life and reliability. Compliance with RoHS environmental standards. Manufactured in China. Explore more solutions in the Ferrite Sleeves category at EnvMart for advanced EMI filtering components and accessories.
