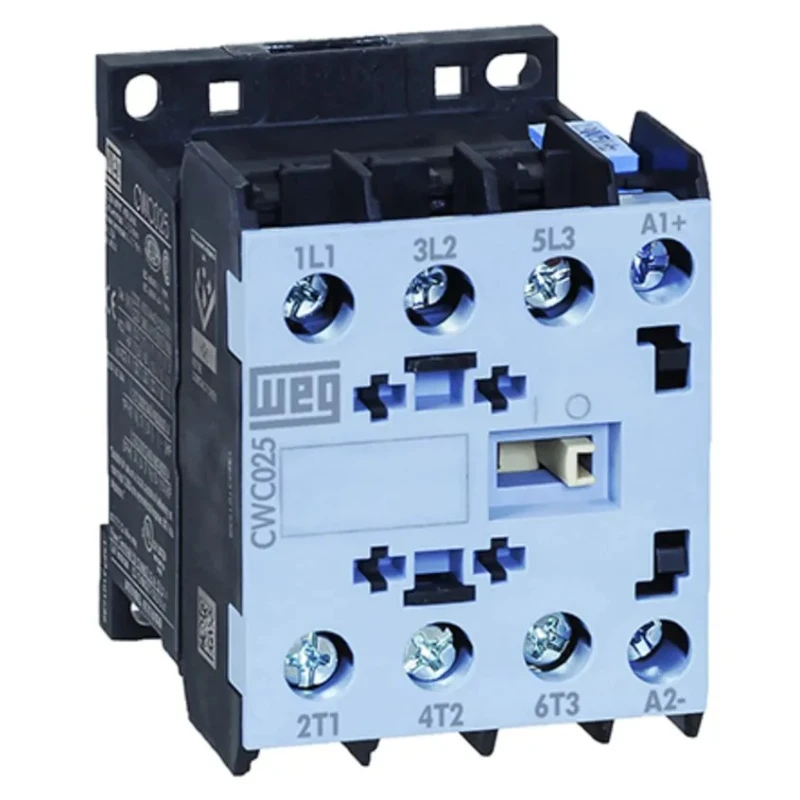

WEG CWC Series Contactor, 24V AC Coil, 3-Pole, 22A, 11 kW, 690V AC CWC025-00-30D02

Free Delivery in India | Lowest Global Shipping Charges

WEG CWC Series Contactor, 24V AC Coil, 3-Pole, 22A, 11 kW, 690V AC CWC025-00-30D02



Category Contactors Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Function	Motor Control
Length	58mm
Model	CWC025-00-30D02
Depth	56mm
Width	45mm
Mount Type	DIN Rail
Series	CWC
Power Rating	11kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	24V ac
Normal State Configuration	3 NO
Contact Current	22A
Operational Current Ie	25A
Control Circuit Voltage Uc	24V ac
Contactor Application	Motor Control
Pole and Throw Configuration	3PST

Key Features

The contactor supports a contact current of 22A and a power rating of 11 kW at 690V AC.
It is designed for DIN rail mounting with screw terminal connections for reliable installation.
Equipped with 3 normally open (NO) contacts to ensure secure operational control.
Built to operate within the temperature range of -25°C to 55°C ensuring durability in varying environments.
Complies with IEC, RoHS, and UL standards for safety and quality assurance.
Compact dimensions of 45mm width, 58mm length, and 56mm depth optimize space usage in control panels.

Product Description

WEG CWC025-00-30D02 is a professional range contactor from the CWC Series, designed for switching electric motors in industrial automation and control gear systems. The contactor is equipped with a 24V AC coil and operates reliably with 3 poles to handle motor control applications efficiently. With a contact current rating of 22A and a power handling capacity of 11 kW at 690V AC, it suits medium power motor controls.

This contactor features screw terminals and is mounted on a DIN rail for quick and secure installation. It includes 3 normally open contacts configured for motor control functions, providing robust switching performance. Its compact and modular design ensures space-saving installation, making it ideal for panel mount applications in factory automation, HVAC systems, manufacturing plants, and commercial electrical installations.

The device is tested and certified to meet IEC, RoHS, and UL standards, ensuring safety compliance and environmental friendliness. It performs well within the temperature limits of -25°C to 55°C, making it suitable for various climatic conditions. The dimensions (45mm width, 58mm length, and 56mm depth) add to the compact profile, facilitating easy integration into existing setups.

Originating from Brazil, the WEG CWC contactor offers high reliability and durability expected in industrial environments. This product is an excellent choice for electrical engineers and system integrators looking for quality motor control contactors with proven performance and international standards compliance.

The contactor supports a contact current of 22A and a power rating of 11 kW at 690V AC. Designed for DIN rail mounting with screw terminal connections for reliable installation. Equipped with 3 normally open (NO) contacts ensuring secure operational control.

Operates within a temperature range of -25°C to 55°C ensuring durability. Meets IEC, RoHS, and UL safety and quality standards. Compact size maximizes space efficiency in control panels. For more high-quality automation and control gear solutions, explore the comprehensive range of WEG Contactors and related products available at EnvMart.
