ProMinent Diaphragm Electric Positive Displacement Pump 7.1L/h 7 bar 100V 230V BT4B0708PVT2000U1110000

Free Delivery in India | Lowest Global Shipping Charges

ProMinent Diaphragm Electric Positive Displacement Pump 7.1L/h 7 bar 100V 230V BT4B0708PVT2000U1110000

Name: ProMinent Diaphragm Electric Positive Displacement Pump 7.1L/h 7 bar 100V 230V BT4B0708PVT2000U1110000
Brand: ProMinent
SKU: 187599
Price: 1884.63 USD
Availability: InStock



Category Positive Displacement Pumps Brand ProMinent Condition New

Specifications

Country of Origin	Germany
Brand	ProMinent
Maximum Operating Pressure	7 bar
Inlet Connection Type	3/4 in G
Model	BT4B0708PVT2000U1110000
IP Rating	IP65
Drive Type	Electric
Maximum Fluid Temperature	20°C
Pump Type	Diaphragm
Series	BT4B
Input power	15.2W
Supply Voltage	100, 230V
Maximum Flow Rate	7.1L/h
Inlet Connection Size	3/4 in
Wetted Materials	Polyvinylidene fluoride
Maximum Head Size	6m
ProMinent Diaphragm Metering Electric Diaphragm Pump, 18L/h, 7 barBrand	ProMinent

Key Features

Robust solenoid diaphragm pump suitable for chemical, pharmaceutical, and food/drinks industries.
Maximum operating pressure of 7 bar with an IP65 rated glass fibre reinforced housing.
Adjustable stroke length from 0 to 100% and stroke rate adjustable in 10% increments.
Energy savings of up to 50% with virtually wear free operation.

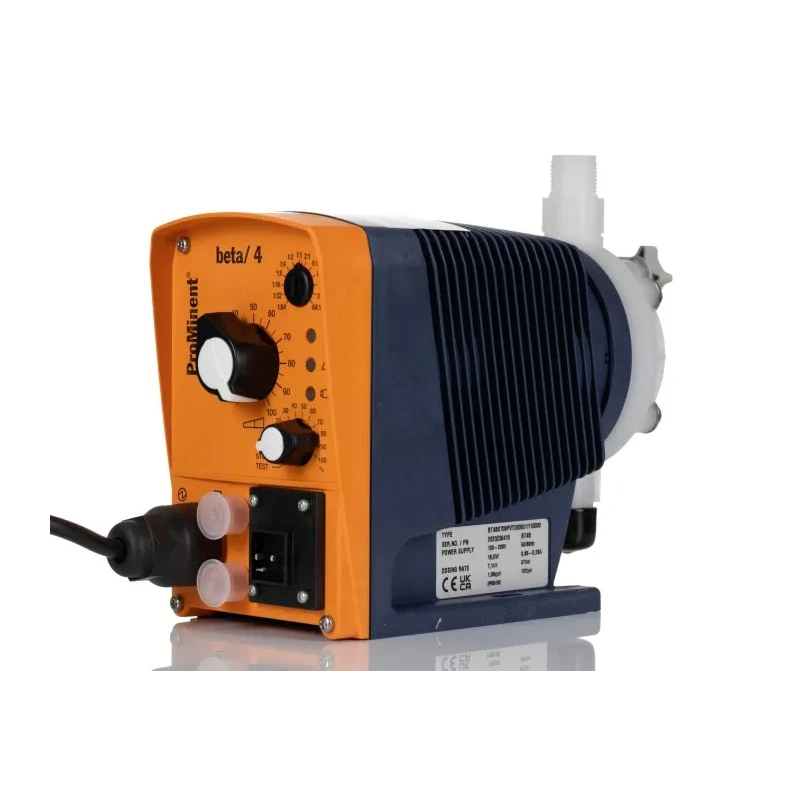

LED display provides warnings, operation status, and error messages.
Constructed with polyvinylidene fluoride wetted materials for chemical resistance.
Self-bleeding dosing head and input for level switch enhances reliability.
Suitable for metering chemicals, disinfectants, and PH correction dosing applications.

Product Description

ProMinent BT4B0708PVT2000U1110000 is a diaphragm electric positive displacement pump designed for precise fluid dosing in chemical, pharmaceutical, and food/drinks industries. Operating at 100V and 230V supply voltage, this model delivers a maximum flow rate of 7.1 liters per hour with a maximum operating pressure of 7 bar.

The pump features a robust glass fibre reinforced housing with IP65 sealing, ensuring durability and resistance to harsh environments. Its solenoid diaphragm mechanism provides adjustable stroke length from 0 to 100%, and stroke rate can be fine-tuned in 10% increments for precise dosing control.

Its wetted parts are made of polyvinylidene fluoride, offering excellent chemical resistance. The pump includes a self-bleeding dosing head, input for level switch, and LED display for operation and error indication, making it highly reliable and user-friendly.

This pump is energy efficient, providing energy savings of up to 50%, and it operates virtually wear free, ensuring long service life. It is suitable for varied applications such as laboratory chemical monitoring, cooling water circuits, metering disinfectants, paper industry de-foamers, and general water treatments.

Robust construction with IP65 glass fibre reinforced housing. Stroke length adjustable from 0 to 100% and stroke rate adjustable in 10% increments. Energy savings up to 50% with efficient solenoid drive. Wetted materials constructed from polyvinylidene fluoride for chemical compatibility.

Self-bleeding dosing head and input for level switch enhance operational safety. LED display for clear warnings and operational feedback. Maximum operating pressure of 7 bar and maximum flow rate of 7.1L/h. Ideal for use in chemical, pharmaceutical, and food industries.

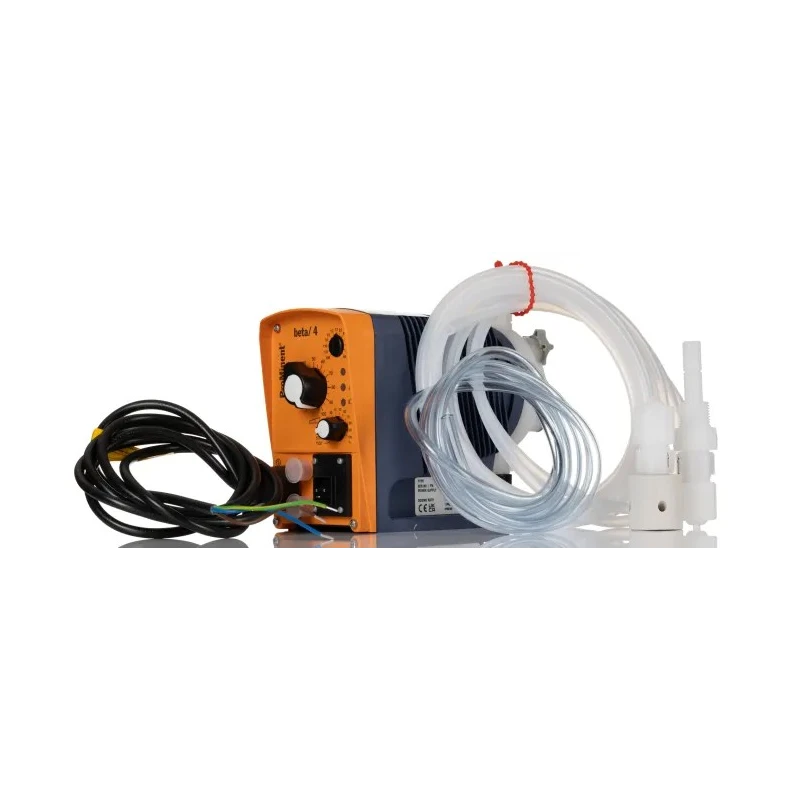

Designed for precise dosing in laboratories and industrial processes. Set includes the ProMinent diaphragm pump model BT4B0708PVT2000U1110000. Suitable for demanding industrial and laboratory environments requiring accurate chemical metering.
