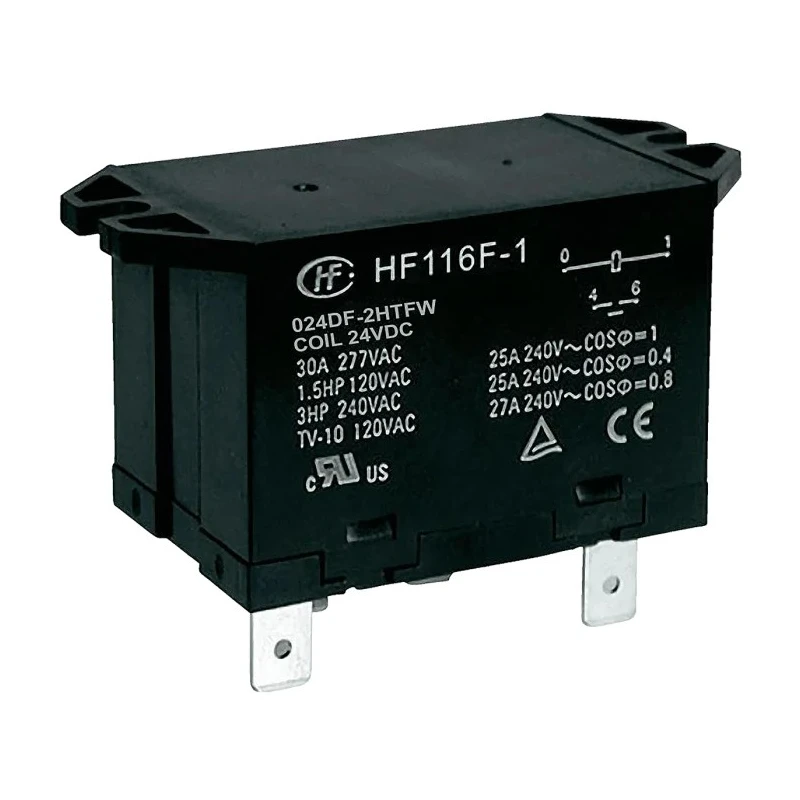

Hongfa Europe GMBH Flange Power Relay 24V DC Coil 25A Switching Current DPST HF116F-1/024DF-2HTFW

Hongfa Europe GMBH HF116F-1/024DF-2HTFW flange power relay is designed for high-reliability industrial use with a 24V DC coil and a 25A switching current capacity. Its DPST (Double Pole Single Throw) contact configuration allows for dependable switching in various electrical circuits.

The relay features a flange mount type housing that simplifies installation in electrical panels. It operates efficiently with a coil power consumption of 1.9 watts and a coil resistance of 300 ohms, ensuring energy-efficient operation.

With an operating temperature range from -55°C to 70°C, the relay maintains robust performance in harsh environments and demanding applications. It supports a maximum switching AC voltage of 277 volts and a switching power rating of 6.9 kVA, making it suitable for power control tasks.

The screw type terminal design ensures secure and easy wiring connections. The relay's compact form factor measures 68 mm in length, 32.9 mm in width, and 36.2 mm in height, facilitating integration in constrained spaces.

Contacts are made of silver alloy, known for excellent electrical conductivity and resistance to corrosion, which enhances longevity and reliability. The contact resistance is specified at a low 100 milliohms, contributing to minimal power loss during switching operations.

This product complies with internationally recognized standards including cULus and CQC certifications, affirming its quality and safety for industrial and automation applications.

Manufactured in China, the Hongfa Europe GMBH HF116F-1/024DF-2HTFW relay is ideal for various industrial, electrical, automation, and control system environments requiring reliable high-power switching.

This power relay supports flange mounting for secure installation. The coil power consumption is 1.9W with a coil resistance of 300 ohms. Operating temperature range spans from -55°C to 70°C. It has a switching AC voltage rating of 277V AC and switching power of 6.9 kVA.

Terminals are screw type for robust electrical connections. Compact dimensions measuring 68mm length, 32.9mm width, and 36.2mm height. Silver alloy contact material offers high conductivity and durability. Contact resistance is low at 100 milliohms, ensuring efficient switching.

Certified to standards including cULus and CQC for safety assurance. Suitable for industrial, electrical automation, and control system applications. For exploring more Power Relays and related electrical components, browse the Electronics & Electricals category on EnvMart.
